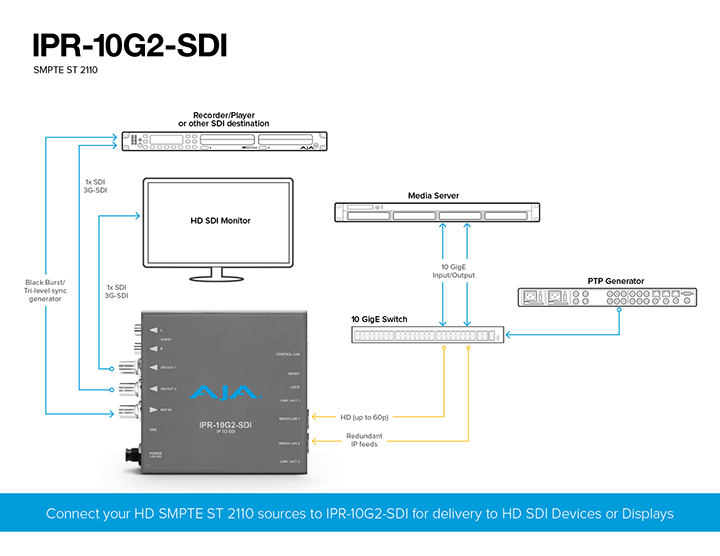

Bridging HD SMPTE ST 2110 Video and Audio to 3G-SDI

AJA eMini-Setup v2.4.5 for macOS.

Please read the Release Notes for more details.

Current release firmware v2.6 for IPR-10G2-SDI 10GigE IP to HDMI Mini-Converter models purchased or upgraded December 2019 onwards.

Please read the Release Notes for more details.

AJA eMini-Setup v2.4.4 for Windows. Please read the Release Notes for more details.

AJA eMini-Setup v2.4.4 for macOS.

Please read the Release Notes for more details.

AJA eMini-Setup v2.4.3 for Windows. Please read the Release Notes for more details.

AJA eMini-Setup v2.4.3 for macOS.

Please read the Release Notes for more details.

Please note - This version of eMini-setup is incompatible with macOS Tahoe 26.2. Please use v2.4.4.

AJA eMini-Setup v2.4.2 for Windows. Please read the Release Notes for more details.

AJA eMini-Setup v2.4.2 for macOS. Please read the Release Notes for more details.

AJA eMini-Setup v2.4.1 for Windows. Please read the Release Notes for more details.

AJA eMini-Setup v2.4.1 for macOS. Please read the Release Notes for more details.

Current release firmware v2.5 for IPR-10G2-SDI 10GigE IP to HDMI Mini-Converter models purchased or upgraded December 2019 onwards.

Please read the Release Notes for more details.

AJA eMini-Setup v2.3 for Windows. Please read the Release Notes for more details.

** eMini-Setup is not currently compatible with macOS 15.x Sequoia.

AJA eMini-Setup v2.3 for macOS. Please read the Release Notes for more details.

Current release firmware v2.3 for IPR-10G2-SDI 10GigE IP to HDMI Mini-Converter models purchased or upgraded December 2019 onwards.

Please read the Release Notes for more details.

Current release firmware v2.2 for IPR-10G2-SDI 10GigE IP to HDMI Mini-Converter models purchased or upgraded December 2019 onwards.

Please read the Release Notes for more details.

** eMini-Setup is not currently compatible with macOS 15.x Sequoia.

AJA eMini-Setup v2.2 for macOS. Please read the Release Notes for more details.

AJA eMini-Setup v2.2 for Windows. Please read the Release Notes for more details.

** eMini-Setup is not currently compatible with macOS 15.x Sequoia.

AJA eMini-Setup v2.1 for macOS includes new support for IPT-10G2-HDMI and IPT-10G2-SDI for Mac users.

This version supports AJA Mini-Connect, HELO, KUMO Routers and Control Panels, IPT-1G-SDI, IPT-1G-HDMI, IPR-1G-SDI, IPR-1G-HDMI, IPR-10G-HDMI, IPR-10G2-HDMI, IPR-10G2-SDI, IPT-10G2-HDMI and IPT-10G2-SDI.

Please read the Release Notes for more details.

Current firmware v2.1 for IPR-10G2-SDI 10GigE IP to HDMI Mini-Converter models purchased before December 2019.

Please read the Release Notes for more details.

AJA eMini-Setup v2.1 for Windows includes new support for IPT-10G2-HDMI and IPT-10G2-SDI  for Windows users.

This version supports AJA Mini-Connect, HELO, KUMO Routers and Control Panels, IPT-1G-SDI, IPT-1G-HDMI, IPR-1G-SDI, IPR-1G-HDMI, IPR-10G-HDMI, IPR-10G2-HDMI, IPR-10G2-SDI, IPT-10G2-HDMI and IPT-10G2-SDI. Please read the Release Notes for more details.

Firmware v2.0.1 for the IPR-10G2-SDI 10GigE IP to HDMI Mini-Converter.

Please read the Release Notes for more details.

Firmware v1.0 for the IPR-10G2-SDI 10GigE IP to HDMI Mini-Converter.

Please read the Release Notes for more details.

AJA eMini-Setup v2.0 for Windows includes new support for IPR-10G2-HDMI and IPR-10G2-SDI  for Windows users.

This version supports AJA Mini-Connect, HELO, KUMO Routers and Control Panels, IPT-1G-SDI, IPT-1G-HDMI, IPR-1G-SDI, IPR-1G-HDMI, IPR-10G-HDMI, IPR-10G2-HDMI and IPR-10G2-SDI. Please read the Release Notes for more details.

AJA eMini-Setup v2.0 for Mac includes new support for IPR-10G2-HDMI and IPR-10G2-SDI  for Mac users.

This version supports AJA Mini-Connect, HELO, KUMO Routers and Control Panels, IPT-1G-SDI, IPT-1G-HDMI, IPR-1G-SDI, IPR-1G-HDMI, IPR-10G-HDMI, IPR-10G2-HDMI and IPR-10G2-SDI. Please read the Release Notes for more details.

AJA IPTR-10G2-Series Mini-Converters Manual v2.6

This document details the Mini-Converters and next-generation Mini-Converters that can work inside the DRM2-Plus and DRM rackframes, including their power consumption.

AJA eMini-Setup QSG v2.4.2

No, the IPR-10G2-SDI is designed to work independently of a host system. Initial setup and all control can be done remotely. It is also possible to attach an IPR-10G2-SDI to a host computer for initial setup via USB, but this is provided as an option rather than a necessity.

No software is required for regular operation. However, for deployment and regular maintenance, you should check the device firmware against what is available online at AJA.com. See Release Notes and Manual for more information.

Yes. IPR-10G2-SDI supports SMPTE ST 2110, and specifically the following parts:

• 2110-10 (System Timing)

• 2110-20 (Uncompressed Video)

• 2110-21 (Traffic Shaping for Uncompressed Video)

• 2110-30 (PCM Audio)

SMPTE ST 2110 is a standard from the Society of Motion Picture and Television Engineers (SMPTE) that describes how to send digital video over an IP network.

SMPTE ST 2110 permits granular transport of individual separate essence streams supporting video, audio, and metadata. As such, unlike SMPTE ST 2022-6, the data is not simple packetization of SDI. SMPTE ST 2110 incorporates the following in three or more different IP packet streams:

• Audio: Multiple channels of audio may be transmitted in a single packet stream, or split up into different groups of audio channels in different streams.

• Video (from active area)

• Metadata

The different streams of audio/video/metadata are all synchronized with each other using RTP timestamps.

When mapping from an SDI source to SMPTE ST 2110, since the data in the blanking is not implicitly included in the packetized video stream, the only way to transmit ancillary data such as timecode, closed captioning, etc. is in the metadata stream. Any data that is not in the metadata stream is NOT transmitted.

There are several parts that comprise SMPTE ST 2110, the parts currently supported by IPR-10G2-SDI are:

• SMPTE ST-2110-10: system timing and synchronization or the standard formerly known as SMPTE ST 2059 parts 1 & 2 (PTP, or Precision Time Protocol).
• SMPTE ST-2110-20: uncompressed video or VSF TR-03 or IETF RFC 4175.
• SMPTE ST-2110-30: uncompressed PCM Digital Audio or AES67.

It’s important to note that each channel of ST-2110-20, ST-2110-30 (and where applicable ST-2110-40) are carried over separate IP streams or essences. AJA’s IPT-10G2-HDMI and IPR-10G2-SDI transmitters take an incoming baseband signal and effectively separates out the video, audio, and metadata to be transmitted as separate IP streams along with PTP timing information. AJA’s IPR-10G2-HDMI and IPR-10G2-SDI receive these streams, and they are reassembled and aligned with the timing information provided in each stream essence.

For more information, please see https://www.smpte.org/st-2110.

Yes, via dual 10 GigE SFP+ cages, IPR-10G2-SDI supports hitless switching for SMPTE ST 2110 (as defined in SMPTE ST 2022-7).

IPR-10G2-SDI supports SMPTE ST 2110 only. There is no support for SMPTE 2022-6

Yes, IPR-10G2-SDI can receive from Narrow/Wide senders.

Yes, IPR-10G2-SDI can receive in either “Linear” or “Gapped” Mode.

There are two methods available for initial setup and updating firmware for IPR-10G2-SDI:

• Web browser on a host computer connected to the same network as the IPR-10G2-SDI

• AJA eMini-Setup application running on a host computer directly connected to IPR-10G2-SDI via USB

Web Browser: IPR-10G2-SDI requires a network connection for initial configuration, control, and firmware updates. 10 GigE IP Mini-Converters are shipped from the factory with DHCP enabled, and support automatic network discovery via SSDP and MDNS.

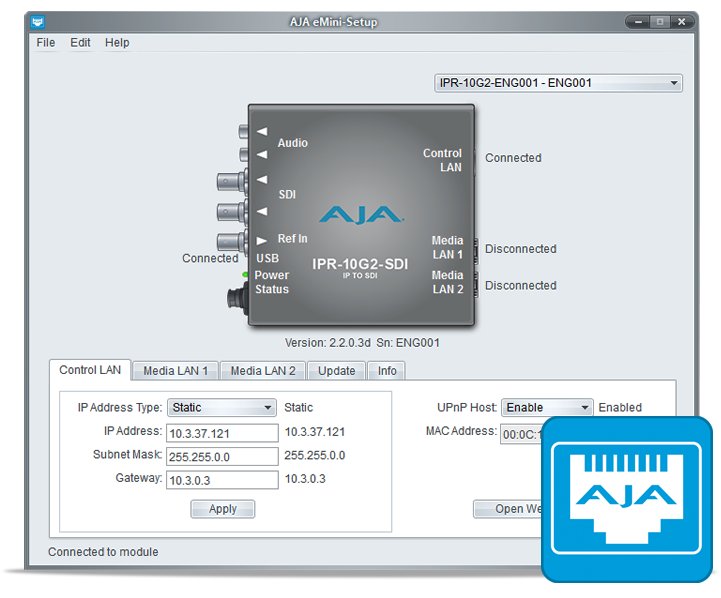

AJA eMini-Setup: eMini-Setup is a stand-alone application available from AJA, that can be used to set up IPR-10G2-SDI via direct USB attachment to a macOS or Windows host. Once set up and functional, the USB connection is no longer required.

10 GigE (10 Gigabit Ethernet)

Yes, both Unicast or Multicast setups are supported.

A switch is highly recommended for any critical production needs. SMPTE ST 2110 transmitter to IPR-10G2-SDI connections can be point-to-point, but there will be limitations. For example, a switch is required to take advantage of multicast and/or routing transmission data to multiple destinations, and without a PTP clock, there is no way to ensure lock. Baseband signals may appear miss aligned or intermittent.

For any critical production work, you will need to use a switch. A switch is also required in order to take advantage of SDP, multicast and/or routing transmission data to multiple destinations.

For initial setup/testing, you do not necessarily have to use a switch, as connections can be made point-to-point. However, without a PTP clock, there is no way to ensure lock. Baseband signals may appear miss aligned or intermittent.

Since AJA isn’t involved in the fundamental design and framework of your IT infrastructure, we highly recommend you work alongside IT professionals when designing, maintaining, upgrading and supporting the IP video infrastructure.

Use a high quality managed (configurable) switch that is IGMP aware.

For SMPTE ST 2110 specifically, switches should also be PTP aware. Spanning Tree Protocol is supported.

Discovery, registration and network control are not part of SMPTE ST 2110.

Instead, there are a number of methods available, supported via a dedicated Ethernet management port, or in-band via media ports:

• NMOS Rx discovery and control according to standards IS-04 v1.3 and IS-05 v1.1

• Ember+ control (no discovery, control only)

• AJA REST API control (discovery via SSDP or MDNS)

Yes, IPR-10G2-SDI supports NMOS Receive according to standards IS-04 v1.3 & IS-05 v1.1.

Yes, IPR-10G2-SDI supports the latest version of Ember+ SDK (v1.6.2).

AJA REST API supports single parameter GET or PUT at a time. With NMOS, multiple parameters can be retrieved or set at a time.

Timing is achieved via a SMPTE ST 2059 compliant PTP clock.

Yes, IPR-10G2-SDI is compliant with PTP, PTPv2.

For production needs an ST 2059 compliant PTP clock is highly recommended. Without a PTP clock there is no way to ensure baseband lock. Presence of an ST 2059 compliant PTP clock will be required if troubleshooting any issues with AJA Tech Support.

Yes, IPR-10G2-SDI is compliant with SMPTE ST 2059-1, standard to derive video audio and time references using the SMPTE Epoch (Jan 1, 1970, 00:00 GMT).

One channel via 3G-SDI

Sixteen channels via 3G-SDI, except 2k 29.97/30 which supports 8 channels

Two channels (via dual RCA, unbalanced) and limited to selecting channels 1-8

No ANC data support at this time.

Uncompressed, 2k 60p or 1080 60p, 4:2:2, 10-bit, YCbCr (level A/level B selectable)

See IPR-10G2-SDI Technical Specifications in Appendix B in the IPR-10G2-SDI manual for those modules we have tested. Similar modules may work fine, but if you run into problems, AJA will require you resort to using SFPs we have explicitly tested and recommended before AJA assisted support/troubleshooting can begin.

Note: Maximum supported SFP+ power is 500 mW per SFP+ cage.

Optical SFPs should be used. Copper or emSFPs* will draw too much power and may cause damage and or operating instability, voiding the product’s warranty.

* emSFP modules are third party hot-pluggable I/O devices.

Yes, but note these are cables are extremely short and not appropriate for longer cable run needs.

A single cage can be utilized. Both cages are required for Hitless Switching functionality.

Additional to dual 10GbE SFP cages, IPR-10G2-SDI provides:

• 1 GigE dedicated Control Port for remote setup and control (Media Ports can be used instead)

• USB for local setup and configuration when desired.

• 3G-SDI output.

• Analog Audio output (dual channel).

• Ref: Reserved for future potential features.

• Power

Please see IPR-10G2-SDI Technical Specifications in Appendix B in the IPR-10G2-SDI manual.

For SMPTE ST 2110, compatible 10 GigE transmitters are IPT-10G2-HDMI, IPT-10G2-SDI. These units will receive HDMI or SDI and format the data for output as SMPTE ST 2110.

Compatible 10 GigE receivers are IPR-10G2-HDMI and IPR-10G2-SDI. These units will receive SMPTE ST 2110 and format the data for output over either HDMI or SDI.

For SMPTE ST 2110, AJA KONA IP, AJA Io IP or Avid Artist DNxIP are fully compatible with each other and IPR-10G2-SDI.

Yes. IPR-10G2-SDI will receive video and audio from third party devices which support SMPTE ST 2110. AJA works alongside other vendors at interop events arranged by AIMS. The SMPTE ST 2110 standard, together with these frequent interop events are designed to ensure customers can feel comfortable when planning/integrating an entire facility with equipment from numerous vendors.
