OG-FiDO-TR

Overview

The OG-FiDO-TR is a state of the art, openGear compatible 3G-SDI/Fiber transceiver. Both 3G-SDI to Fiber and Fiber to 3G-SDI conversions are supported.

openGear cards offer unmatched flexibility and cost efficiency for 3G-SDI-Fiber conversion, allowing for long cable runs up to 10 km (32,808 ft) for single mode.

Designed for use in high density openGear 2RU frames including AJA’s OG-X-FR frame, new DashBoard software support on Windows®, macOS® and Linux® offers remote control and monitoring of the openGear architecture and provides convenient and industry standard configuration, monitoring and control options over a PC or local network.

Features

Video Formats: 150 Mbps - 3 Gbps, format agnostic
Inputs: 1x 3G-SDI BNC; 1x Single Mode LC Fiber
Outputs: 1x 3G-SDI BNC; 1x Single Mode LC Fiber
Monitor via openGear DashBoard
Input Present and Input SMPTE Lock LEDs
Automatic detection and reclocking
270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
Nominal Wavelength: 1260-1620 nm
Power: 2.5 watts
Hot swap capable
Compatible with OG-X-FR, OG-3-FR and DFR-8321 openGear frames

Connectivity

Both Fiber and 3G-SDI inputs are reclocked with best in class input jitter tolerance. 3G-SDI rates of 270Mb, 1.5Gb, and 3Gb are supported. Both signal paths are independent and can be different rates. Supports single mode fiber cable.

openGear Compatibility

The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.

Flexible I/O

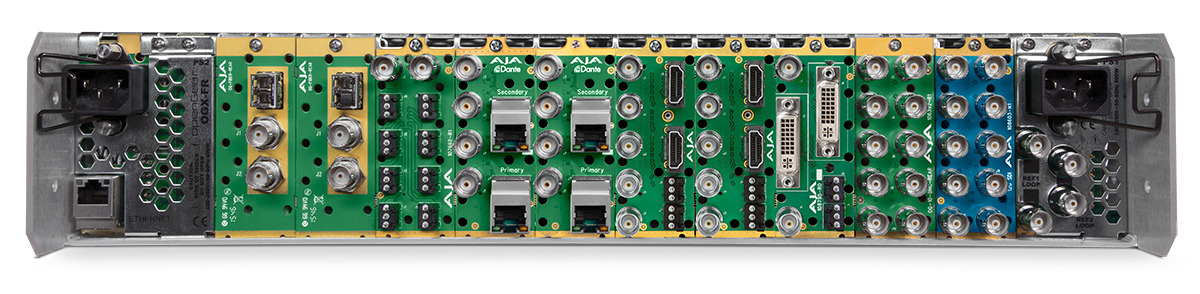

The modular rear panel allows custom I/O connections per card (included with individual cards).

Failsafe

The optional redundant power supply provides a secondary power source in the event of a primary power failure.

Ethernet Access

A standard Ethernet connection allows the frame to be accessed via the Dashboard application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.

More Info

DashBoard Software

DashBoard software offers quick and convenient configuration and control of openGear cards on macOS, Windows, and Linux.

AJA Mini-Matrix

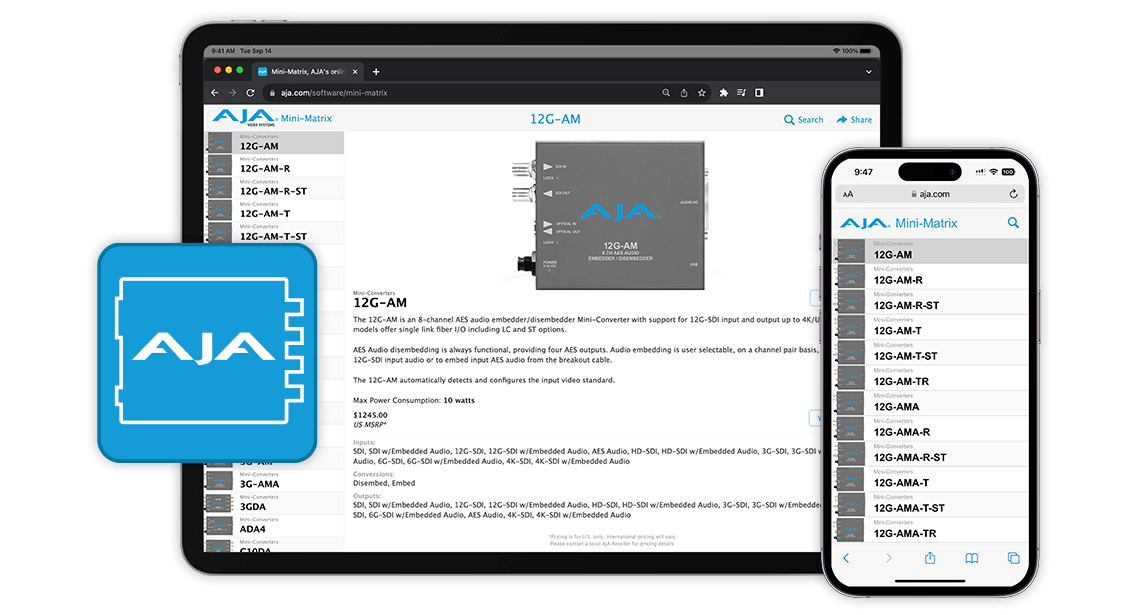

Information on the complete line of AJA Rackframes and cards are now available in the Mini-Matrix mobile app on iOS. AJA products are extensive and this app helps you find the right converter for any situation, wherever you are.

Individual products have links back to the main AJA website for more details and you can email product information directly from the app. The free AJA Mini-Matrix app for iPad® and iPhone® is available now in the Apple iTunes® Store.

Download from the Apple App Store

Launch Browser Version for Android

Industry Leading Support

AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your openGear installation, configuration, operation or encounter any technical issue, AJA Support will work with you to get up and running.

openGear products are covered by a generous five year warranty. Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.

Tech Specs

Print Tech Specs

Video Formats

150 Mbps - 3 Gbps, format agnostic

Video Input Digital

1-Channel independent 3G-SDI BNC Input, SMPTE-259/292/424
1-Channel Single Mode LC Fiber Input, SMPTE-297
Nominal Wavelength: 1260-1620 nm
Optical Sensitivity: -18dBm (min)
Overload Power: -3dBm (min)

Video Output Digital

1-Channel independent 3G-SDI BNC Output, SMPTE-259/292/424
1-Channel Single Mode LC Fiber Output, SMPTE-297
Nominal Wavelength: 1310 nm
Optical Power: -5dBm (min), 0dBm (max)
Extinction Ratio: 7.5dB (Typ)

Reclocking

270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
All other rates are passed through and not reclocked

User Interface

openGear DashBoard network control software via Windows, macOS or Linux

Size (w x d x h)

openGear standard form factor, front slot and rear card. Two slots required for each card.

Weight

0.5 lb (0.3 kg)

Power

openGear frame compatible, 2.5 watts max per card

Environment

Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)
