What is SDI?

SDI (Serial Digital Interface) is a family of digital video interfaces first standardized in 1989 by SMPTE (Society of Motion Picture and Television Engineers), which sought to bring order, interoperability and consistency to the emerging world of digital video from previous analog standards.

SDI Advantages

SDI offers a range of advantages over competing interfaces for the successful transmission of professional video and audio, which has ensured its longevity as a standard to this day. Physically, many will associate SDI with the BNC locking connector, but the interface transcends the connector itself and lends itself to transmission over Fiber and IP networks as well. Here are some of the advantages that have ensured its success over the years:

  • Latency free imagery

    SDI signals are transported in latency-free and uncompressed digital signals over coaxial cables and offer crystal-clear imagery.

  • Scalability

    As resolution, frame rates and deep color offerings have expanded from the camera down the chain of production, post and delivery, SDI has continuously evolved to meet increasing bandwidth needs.

    Deeper color-space HD and progressive imagery led to the use of two SDI cables in-sync, described as Dual-Link, to achieve the needed bandwidth; testimony to SDI’s continual evolution when faced with new demands. For many 4K/UltraHD workflows today, up to 4x 3G-SDI connections can be utilized to carry and create a full 4K/UltraHD image; 12G-SDI simplifies that with transmission of the full 4K signal across a single 12G-SDI cable.

    SDI interfaces are numerous but for the sake of simplicity can be divided into the following bandwidth categories for coax use:

    • Standard Definition SD-SDI (270 Mbps, ST 259)
    • HD standard HD-SDI (1.483 Gbps, ST 292)
    • 3G-SDI (2.97 Gbps, ST 424)
    • 6G-SDI (5.94 Gbps, ST 2081)
    • 12G-SDI (11.88 Gbps, ST 2082)
  • Connectivity

    Traditional BNC connectors offer a rugged locking mechanism that offers security on set and in the studio, guarding against accidental uncoupling.

  • Length

    HDMI cables can only run up to about 30 feet before they require some type of amplifier or repeater, reflecting their original intention as a consumer interface. SDI in contrast can, depending on bandwidth, run to lengths of 300 meters before needing assistance. By connecting a SDI over Coaxial cable to an appropriate Optical Fiber converter like AJA’s range of 3G-SDI and 12G FiDOs, the signal can be further transmitted or received up to 10km from the source.

  • Security

    SDI over Coaxial Cable has functioned as a point-to-point transmission system which helps ensure security as it cannot be distributed further until deliberately connected to a DA (Distribution Amplifier) or a Router.

  • SMPTE TimeCode

    SDI supports Time Code, which gives every frame of video its own unique identifying number. This makes frame-accurate digital editing possible, and enables the association of other data to make audio and video even more focused, accurate, and repeatable. It can be used to synchronize music and is often used to automate lighting, pyrotechnics, video, and other effects in live concert production. HDMI does not support Time Code.

  • ANC Data

    SDI offers the ability to not only carry Video but Ancillary data (commonly abbreviated as ANC data) as well. In the context of television systems, ANC refers to a means which by non-video information (such as audio, other forms of essence, and metadata) may be embedded within the serial digital interface.

    Ancillary data packets are commonly divided into two types, depending on where they are located—specific packet types are often constrained to be in one location or another.

    • Ancillary packets located in the horizontal blanking region regardless of line, are known as horizontal ancillary data, or HANC. HANC is commonly used for higher-bandwidth data, and/or for things that need to be synchronized to a particular line; common items stored in HANC are VPID (Video Payload ID) and embedded audio.
    • Ancillary packets located in the vertical blanking region, are known as vertical ancillary data, or VANC. VANC is commonly used for low-bandwidth data, or for things that only need be updated on a per-field or per-frame rate. Closed caption data is generally stored as VANC.
  • Cost

    HD-capable SDI uses standard coax cable (RG-6) which is generally cheaper to produce than HDMI per foot or meter.

SDI Historically

1.5Gbps HD-SDI routing began to appear to support digital television ATSC HD OTA (over-the-air) transmission in North America. Digital television kicked off in the United States in 1996, so 1.5Gbps HD-SDI routing was a response to a serious need for improved conveyance of uncompressed digital video.

Less than half a decade later, the television industry started to replace the 1080i signal in some acquisition, production, and contribution environments with the higher frame rate and progressive nature of 1080p50/60 fps which required 1.5 Gbps HD-SDI bandwidth to be doubled, either through Dual-Link (using two SDI cables in tandem), or by jumping to the new standard of 3G-SDI with its doubled bandwidth over a single cable.

Today its common to find 3G-SDI infrastructure in a range of facilities, mobile broadcast trucks and live event environments. With the advent of 4K/UltraHD and high frame rate workflows like 60p and above, the pressure is on to move to a higher bandwidth offering.

What is 12G-SDI and Why Does it Matter?

As camera and routing technology continues to advance, broadcast and digital cinema grade SDI standards for resolution, frame rate, and color depth have been implemented to handle the increasing bandwidth of uncompressed video signals through the production and post chains.

Many smaller local television stations in the United States and Europe today are still using SDI (1.5G) systems, while the majority of production environments utilize 3G-SDI for HD pipelines and a combination of 3G-SDI cables to handle 4K/UltraHD workflows. Moving forward, many will need to upgrade their bandwidth in due course to handle cameras with 6G-SDI outputs, not to mention the 12G-SDI workflows now demanded by newer cameras like the Venice, recently announced by Sony.

The good news is that 12G-SDI is fully backwards compatible, simplifies cabling and with the correct tools, you can move your current infrastructure forward smoothly and simply. AJA is here to help ease the transition.

12G-SDI Advantages

12G-SDI offers multiple advantages. As a family of video interfaces standardized by SMPTE, SDI and their related interfaces offer nominal data rates when used for transmission of uncompressed, unencrypted digital video signals within television facilities.

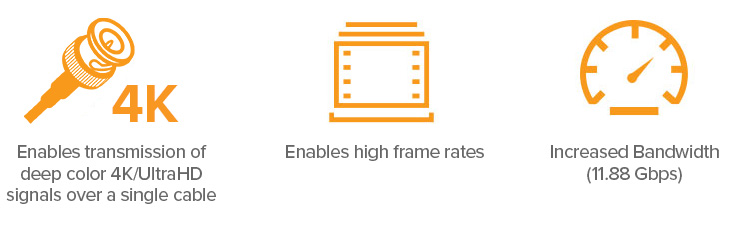

12G-SDI offers eight times the bandwidth of normal HD-SDI and offers the simplicity of single cable connectivity. 12G-SDI has the ability to handle high frame rate and deep color 4K/UltraHD signals over a single cable, including up to 100/120fps. This has major benefits for live events, broadcast studios, on set and live venues when it comes to cable complexity, weight, and troubleshooting with far fewer points of potential failure in the signal chain. 12G-SDI over optical fiber further increases the distance that 12G can travel, up to 10km.

Advances in 12G-SDI

To learn more about the history and benefits of 12G-SDI, download the informative PDF below.

Download eBook

AJA 12G Solutions

With broadcast technology constantly evolving, AJA is uniquely situated to provide future-proof technology for broadcast, production, post, ProAV, and developer partners in the video industry. AJA now supports 12G-SDI with solutions for editing, transmission over fiber, routing and Mini-Converters to Mux/Demux and distribute 12G-SDI where ever needed. AJA’s 12G-SDI solutions are all data agnostic, so they will continue to function as facilities migrate to HDR workflows and beyond.

Whether you are a high-profile media company, post-production house, mobile truck operator, or cinematographer, the reliability, flexibility and performance of AJA technology is incomparable.

View Video

Related Stories

Streaming: BRIDGE LIVE

High Performance Multi-Channel Video Encoding, Decoding and Transcoding for Live Video


BRIDGE LIVE is a turnkey solution built for critical streaming applications with high performance 12G-SDI video encoding/decoding, stream-based transcoding, flexible I/O, comprehensive metadata support, closed caption support and a compact 1RU form factor with redundant power supplies.

Designed with the ability to support both low-latency and high-quality workflows across a range of codecs, containers and protocols, BRIDGE LIVE enables numerous use cases; Multi-input live streaming to platforms such as YouTube, Facebook or Twitch, providing high quality reference video for remote collaboration in production and post, backhauling remote live SDI video sources to the media production facility, SDI to MPEG-TS conversions for Telcos/IPTV/Cable networks, through to encoding for content distribution with ABR ladder profiles or hand-off for OTT packaging; all supported via public internet.

Learn More

Playback and Recording: Ki Pro Ultra 12G

Ki Pro Ultra 12G

Ki Pro Ultra 12G is a multi-channel Apple ProRes® recorder offering up to 4-Channels of simultaneous HD recording, or in Single-Channel mode, a 4K/UltraHD/2K/HD Apple ProRes or Avid DNxHR® recorder and player. Avid DNxHD® MXF is also supported up to HD formats in Single-Channel mode.

Ki Pro Ultra 12G offers 12G-SDI single cable simplicity for large rasters andHDMI 2.0 digital video connectivity with HDR support for recording and playback plus a wealth of analog and digital audio connectivity answers any project’s demand for efficient, powerful and flexible workflows. For distance and remote needs, Fiber SFP+ options are available.

Learn More

Mini-Converters: 12GDA, 12GM, Hi5-12G, HA5-12G, 12G-AM, 12G-AMA


12G-SDI to/from SDI Muxer/DeMuxer

12GM is a compact SDI transport converter that enables 12G-SDI to Quad-link 3G-SDI and Quad-link 3G-SDI to 12G-SDI conversion. The Muxer/DeMuxer supports 4K, UltraHD, 2K, HD and SD workflows and conversions from quad-link SDI signals to single link SDI signals, and vice versa at 12G, 6G, 3G and 1.5G bit rates. Both Square Division (Quadrant) and Two Sample Interleave (2SI) input and output mappings are supported.

Learn More


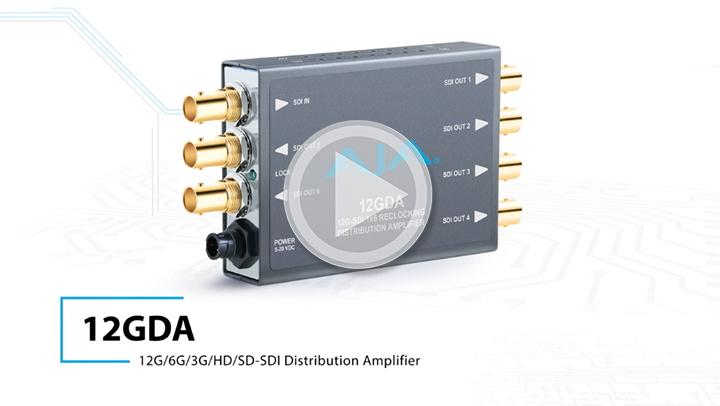

12G/6G/3G/HD/SD-SDI Distribution Amplifier

12GDA is a miniature 1x6 12G-SDI re-clocking distribution amplifier that allows facilities to save on cable runs and install times. With support for 12G-SDI for 4K/UltraHD single link workflows, the format-agnostic device features six separately buffered SDI outputs identical to the recovered input. It also offers automatic input detection, re-clocking and cable equalization, as well as a throw down package and LED signal detection indicator.

Learn More


The 12G-AM is an 8-channel AES audio embedder/disembedder Mini-Converter with support for 12G-SDI input and output up to 4K/UltraHD. Fiber models offer single link fiber I/O including LC and ST options. AES Audio disembedding is always functional, providing four AES outputs. Audio embedding is user selectable, on a channel pair basis, to either pass 12G-SDI input audio or to embed input AES audio from the breakout cable. The 12G-AM automatically detects and configures the input video standard.

12G-AM Models Available:

12G-AM 12G 8-Channel AES audio embedder/disembedder
12G-AM-TR with LC Fiber Transceiver
12G-AM-T with LC Fiber Transmitter
12G-AM-T-ST with ST Fiber Transmitter
12G-AM-R with LC Fiber Receiver
12G-AM-R-ST with ST Fiber Receiver

Learn More


The 12G-AMA is a 4-channel analog audio embedder/disembedder Mini-Converter with support for 12G-SDI input and output up to 4K/UltraHD single link with fiber I/O including LC and ST options. Audio disembedding is always functional, providing four analog outputs. Audio embedding is user selectable, on a channel pair basis, to either pass 12G-SDI input audio or to embed input analog audio from the breakout cable. Analog audio levels are selectable. The 12G-AMA automatically detects and configures the input video standard.

12G-AMA Models Available:

12G-AMA 4-channel analog audio embedder/disembedder
12G-AMA-R with LC Fiber Receiver
12G-AMA-R-ST with ST Fiber Receiver
12G-AMA-T with LC Fiber Transmitter
12G-AMA-T-ST with ST Fiber Transmitter
12G-AMA-TR with LC Fiber Transceiver

Learn More


12G-SDI to HDMI 2.0 Conversion

Hi5-12G converts a 4K/UltraHD/2K/HD 12G-SDI single-link input with eight channels of embedded digital audio to an HDMI 2.0 output with two or eight channels of audio. It includes a 12G-SDI single-link input with a re-clocked SDI loop out for simpler confidence monitoring or pass on for SDI pipelines.

Fiber SFP-equipped Hi5-12G models include the Hi5-12G-R receiver, which extends HDMI 4K signals over long distances from either an SDI or a Fiber connected source, and the Hi5-12G-TR transceiver, which delivers a 4K/UltraHD SDI or Fiber source signal to an HDMI destination with pass on of the source through SDI or Fiber to a secondary destination.

Hi5-12G is also available with a Fiber ST connector as the Hi5-12G-R-ST receiver, offering the same long distance benefits as its Fiber SFP variant.

Hi5-12G Models Available:

Hi5-12G   -   12G-SDI to HDMI 2.0
Hi5-12G-R   -   Includes 1x Fiber LC Receiver
Hi5-12G-TR   -   Includes 1x Fiber LC Transceiver
Hi5-12G-R-ST   -   Includes 1x Fiber ST Receiver

Learn More


HDMI 2.0 to 12G-SDI Conversion

HA5-12G allows users to convert an HDMI 2.0 input with up to 8 channels of audio from an HDMI source to two 12G-SDI single-link outputs.

The portable converter includes two SDI DA outputs and transmits 12G-SDI on each SDI link, reducing cable runs when transporting 4K/UltraHD over SDI.

A Fiber SFP-equipped HA5-12G model is available, the HA5-12G-T single-channel transmitter, which extends HDMI 4K signals over long distances (10 km Single-Mode).

HA5-12G is also available with a Fiber ST connector as the HA5-12G-T-ST offering the same long distance benefits as its Fiber SFP variant.

HA5-12G Models Available:

HA5-12G   -   HDMI 2.0 to 12G-SDI Coaxial
HA5-12G-T   -   Includes 1x Fiber LC 1-Ch Transmitter
HA5-12G-T-ST   -   Includes 1x Fiber ST Transmitter

Learn More

Optical Mini-Converters: FiDO 12G

The FiDO family of 12G-SDI/Optical fiber Single-Mode converters by AJA allows for the transport of 12G over distances of up to 10KM when using standard Single-Mode fiber optic cable. All our FiDO converters meet all relevant SMPTE specifications and are designed for multiple applications.


1-Channel 12G-SDI/LC Single-Mode LC Fiber Transceiver

Learn More


1-Channel 12G-SDI to Single-Mode LC Fiber Transmitter

Learn More

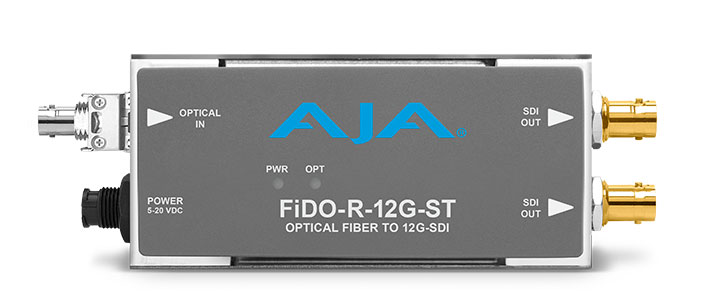

1-Channel Single-Mode LC Fiber to 12G-SDI Receiver
