HDP3

HDP3

3G-SDI to DVI-D and Audio Converter

AJA Mini-Config

$879 US MSRP*

* Pricing is for US only. International pricing will vary.

Overview

The HDP3 is a miniature 3G-SDI to DVI-D converter with support for 1080p50, 59.94, 60 input formats, and a DVI-D output for digital display devices such as LCD, DLP, and Plasma monitors or projectors. Using a very high quality scaling engine and de-interlacer, the HDP3 will automatically size 4:3 or 16:9 inputs to many DVI-D monitors, providing an efficient conversion for professional video sources to ubiquitous cost-effective displays.

Features

  • 3G/HD/SD-SDI to DVI-D
  • HDMI 1.3a support (via DVI-D connector), including: - Deep Color 30-bit video (24-bit also supported) - 2 or 8 channels of embedded audio
  • Automatically adapts to popular LCD/ DLP/Plasma monitors (and projectors) up to 1920x1200 and 1080p
  • High quality scaling engine for proper display of 4:3 or 16:9 content-even better quality than original HDP
  • 1 to 1 scaling for appropriate monitor configurations
  • 2-channel RCA analog audio output (user-assignable channels)
  • HD-SDI/SDI looping output
  • Setup via PC/Mac using USB port and supplied USB cable (USB configuration software application supplied on CD)
  • Five year warranty

Extended Features

The HDP3 is a 3G-SDI to DVI-D mini-converter for digital display devices such as LCD, DLP, and Plasma monitors or projectors. Using AJA’s very high quality scaling engine and deinterlacer, the HDP3 handles 3G-SDI signals up to 1080p60. The HDP3 will adapt the input frame rate for monitor compatibility, and because it responds to EDID from monitor or projector, it can automatically determine the best output format and scaling parameters. 1 to 1 pixel mapping can can also be selected. The HDP3 provides user- assignable 2-Channel analog audio monitoring, 2 to 8-Channel 24-bit embedded audio (via DVI-D to HDMI adapter only), plus a looping output of the SDI input retaining 8-Channels of embedded audio.

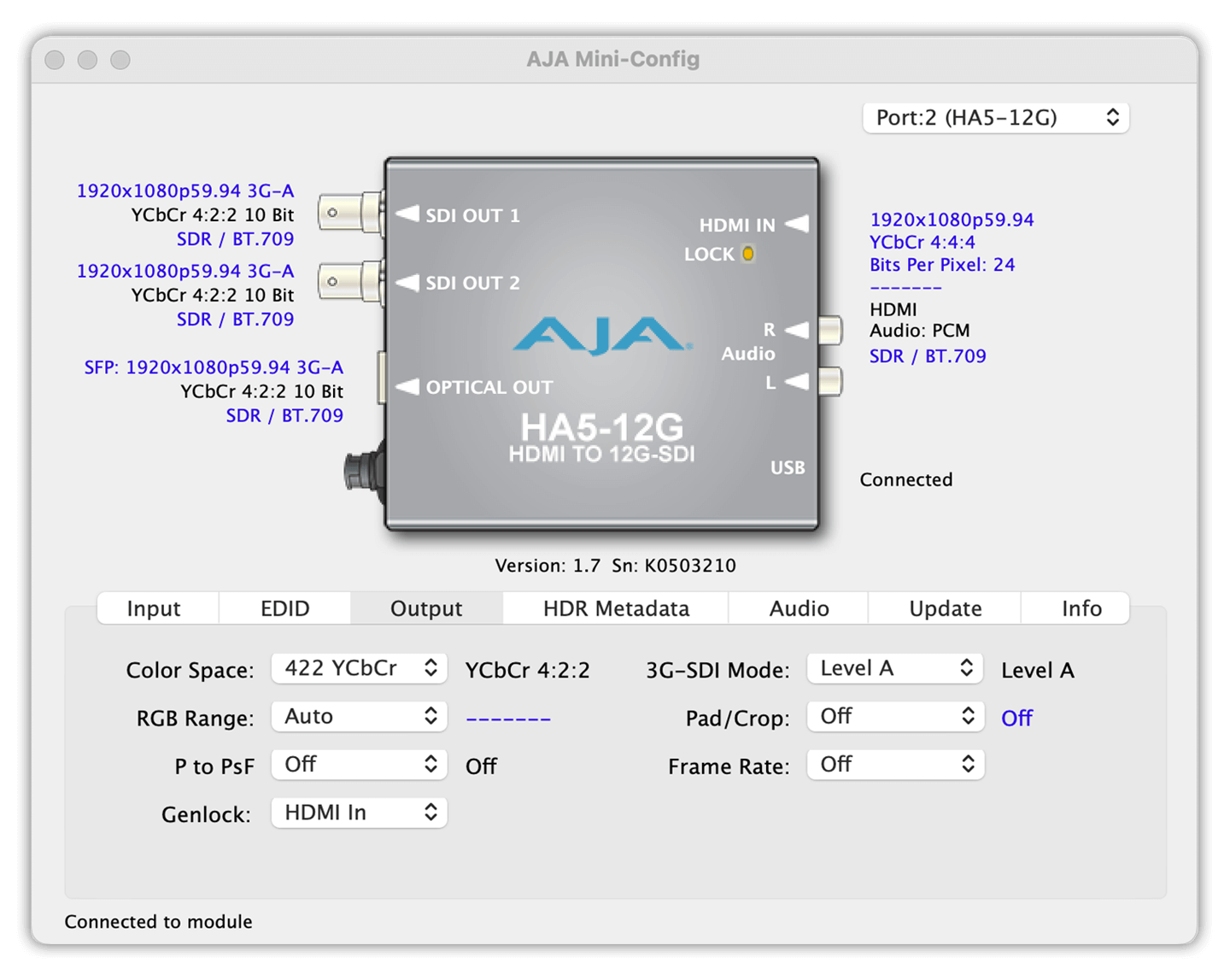

USB and Mini-Config Support

AJA’s free Mini-Config software can be used with any USB enabled AJA Mini-Converter and provides an easy to use graphical interface with detailed information about the current input and output formats. Control all the parameters of any supported AJA Mini-Converter as well as loading firmware updates from AJA that add new features and functionality.

Download Mini-Config

Universal Power Supply

All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.

Compact and Portable

AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

AJA Mini-Matrix

Information on the complete line of AJA Converters is available in Mini-Matrix. AJA products are extensive and this resource helps you find the right Converter for any situation, wherever you are. Individual products have links back to the main AJA website for more details.

Launch Mini-Matrix

Industry Leading Support

AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your Mini-Converter installation, configuration, operation or encounter any technical issue,  AJA Support will work with you to get up and running.

Mini-Converter products are covered by a generous five year warranty. Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.


Tech Specs


Video Input Formats

  • 1x 3 Gb SDI (Level A)
    • (HD) 1920 x 1080p 50, 59.94, 60
  • 1x 1.5 Gb SDI
    • (HD) 1920 x 1080p 23.98, 24, 25, 29.97, 30
    • (HD) 1920 x 1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920 x 1080i 50, 59.94, 60
    • (HD) 1280 x 720p 50, 59.94, 60
  • 1x 270 Mb SDI
    • (SD) 625i 50
    • (SD) 525i 59.94

Video Input Digital

  • 1 x 3G-SDI BNC, SMPTE-259/292/424

Video Output Digital

  • 1 x DVI Type D female connector
  • Automatically adapts to popular LCD/DLP/Plasma monitors (and projectors) up to 1920 x 1200 and 1080p
  • High quality scaling engine for proper display of 4:3 or 16:9 content-even better quality than original HDP
  • 1 to 1 scaling for appropriate monitor configurations

Audio Input Digital

  • SDI embedded audio, 24-bit, 8-Channel

Audio Output Digital

  • DVI embedded audio, 24-bit, 2 or 8-Channel (HDMI adapter only)
  • SDI (looped) embedded audio, 24-bit, 8-Channel

Audio Output Analog

  • 1x RCA Stereo analog outputs at -10dBu (nominal)

Size (w x d x h)

  • 5.8” x 3.1" x 1.0" (147.32 x 78.74 x 25.4 mm)

Weight

  • 0.7 lb (0.5 kg)

Power

  • 5-20VDC regulated, 6.5 watts, power supply required (included with purchase)

Environment

  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
