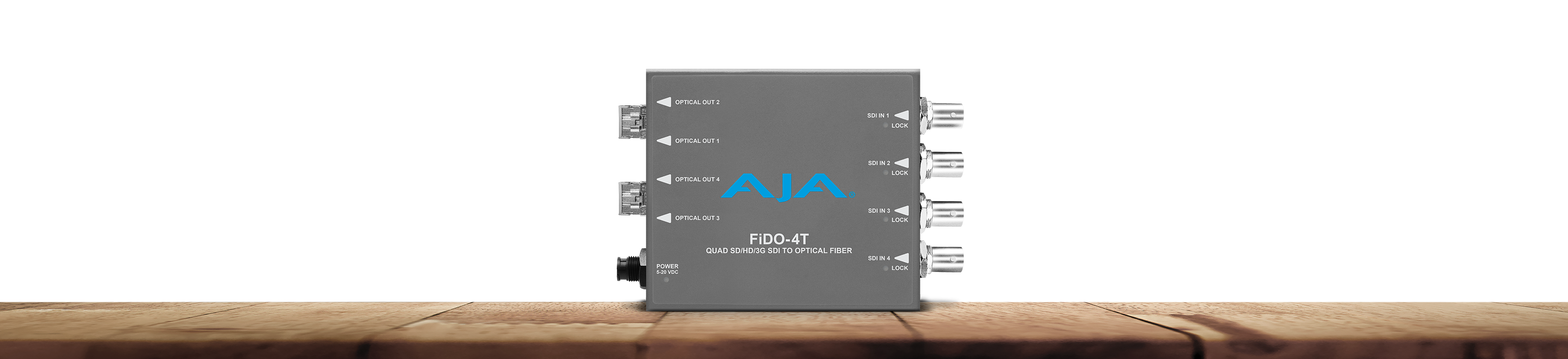

FiDO-4T

FiDO-4T

4-Channel 3G-SDI
to Single-Mode LC Fiber Transmitter

$1869 US MSRP*

* Plus any applicable tariffs. Pricing is for US only. International pricing will vary.

FiDO-4T

Overview

Tech Specs

Downloads

LC Single Mode 3G

Overview

FiDO-4T offers unmatched flexibility and cost efficiency for SDI-Fiber conversion, allowing for long cable runs up to 10 km (32,808 ft) with electrical isolation - useful for eliminating ground loop problems.

FiDO converters use a compact, low-profile enclosure that works well in tight spaces around and behind equipment racks, trucks and on camera.

Features

  • 4-Channel 3G-SDI to Single-Mode LC Fiber Transmitter
  • 4 simplex or 2 duplex output connections (LC connector)
  • 4 independent channels of 3G/HD/SD-SDI input
  • 4K/UltraHD-SDI over 4 fiber links
  • Uses 5-20VDC power (Universal power supply included)
  • Five year warranty

Universal Power Supply

Customers can purchase a spare universal power supply for use with any of their Mini-Converters. This universal power supply includes international plug connections for use around the world.

Compact and Portable

AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

AJA Mini-Matrix

Information on the complete line of AJA converters, routers, frame synchronizers, and openGear cards are available in Mini-Matrix. AJA products are extensive and this resource helps you find the right converter for any situation, wherever you are. Individual products have links back to the main AJA website for more details.

Launch Mini-Matrix

Industry Leading Support

AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your Mini-Converter installation, configuration, operation or encounter any technical issue,  AJA Support will work with you to get up and running.

Mini-Converter products are covered by a generous five year warranty. Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.

Tech Specs

Print Tech Specs

Video Formats

  • 150 Mbps - 3 Gbps, format agnostic

Video Input Digital

  • 4-channel independent 3G-SDI BNC Inputs, SMPTE-259/292/424

Video Output Digital

  • 4-channel independent Single Mode LC Fiber Outputs, SMPTE-297
  • Nominal Wavelength: 1310 nm
  • Optical Power: -5dBm (Min), 0dBm (Max)
  • Extinction Ratio: 7.5dB (Typ)

Reclocking

  • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
  • All other rates are passed through and not reclocked

Size (w x d x h)

  • 4.6" x 4.02" x 0.85" (117.0 x 102.11 x 21.6mm)

Weight

  • 0.8 lb (0.4 kg)

Power

  • 5 watts, max
  • Uses 5-20VDC power, universal power supply included

Environment

  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
