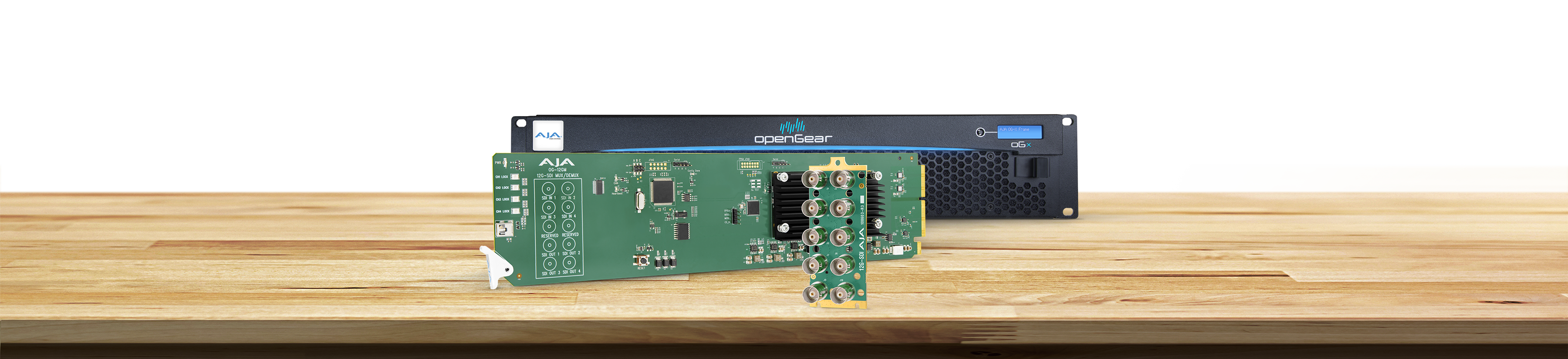

OG-12GM

OG-12GM

12G-SDI to/from SDI Muxer/DeMuxer

$1189 US MSRP*

* Plus any applicable tariffs. Pricing is for US only. International pricing will vary.

OG-12GM

Overview

Tech Specs

Downloads

openGear Infrastructure

Overview

OG-12GM is a compact SDI transport openGear card that enables 12G-SDI to quad link 3G-SDI and quad link 3G-SDI to 12G-SDI conversion. The muxer/demuxer supports 4K, UltraHD, 2K, HD and SD workflows and conversions from quad link SDI signals to single link SDI signals, and vice versa at 12G, 6G, 3G and 1.5G bit rates, as well as Dual Link and Dual Stream conversions. Both Square Division (Quadrant) and Two Sample Interleave (2SI) input and output mappings are supported.

AJA openGear products are designed for use in high density openGear 2RU frames including AJA’s OG-X-FR frame, with industry standard DashBoard software support on Windows®, macOS® and Linux®, offering remote control and monitoring over a PC or local network.



Features

  • openGear compatible card
  • SDI Transport Converter for 12G, 6G, 3G and 1.5G-SDI
  • Supports multiple types of Quad, Dual, and Single type conversions
  • Two Sample Interleave (2SI) to/from Square Division (Quadrant) pixel mapping
  • 3G-SDI Level A to/from 3G-SDI Level B Dual Link (DL)
  • 3G-B Dual Stream Support
  • Simple Frame Rate Conversion (FRC)
  • HDR signaling metadata pass-through and optional override
  • Pass-through of Single Link 12G, 6G, 3G, 1.5G and 270M SDI video
  • Distribution Amplifier support (1x4)
  • Input signal diagnostics and timing analyzer for quad link signals
  • Automatic or manual control
  • Detailed timing analysis for validating alignment of quad link SDI inputs
  • Passes SDI embedded audio, 24-bit, up to 16-Channels
  • Remote Ethernet configuration through Ross DashBoard software
  • Power: 13 watts
  • Hot-swappable
  • Rear I/O card included
  • Two slots required for each card
  • Compatible with OG-X-FR and OG-3-FR openGear frames
  • Five year warranty

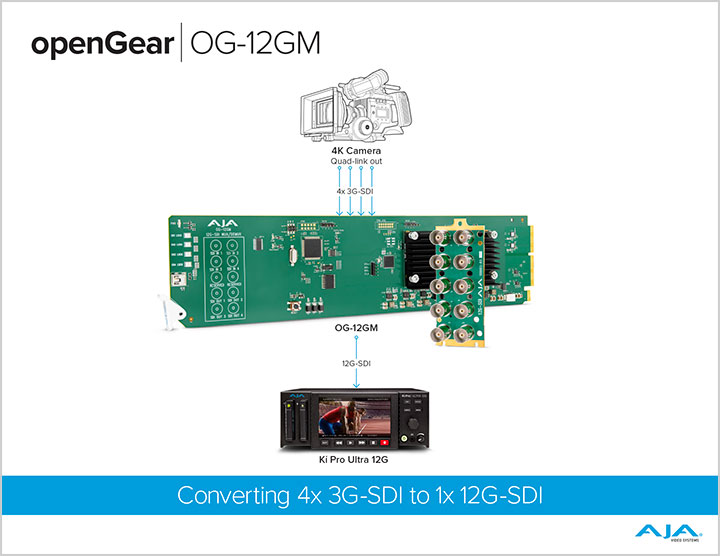

OG-12GM Workflow Diagram

This workflow diagram shows a 4K camera system outputting video via a 4x 3G-SDI quad-link connection. This output is connected to the 4x 3G-SDI inputs of the OG-12GM, which converts it in turn into single-link 12G-SDI, shown here with a Ki Pro Ultra 12G recording the video at the end of the signal chain.

Download

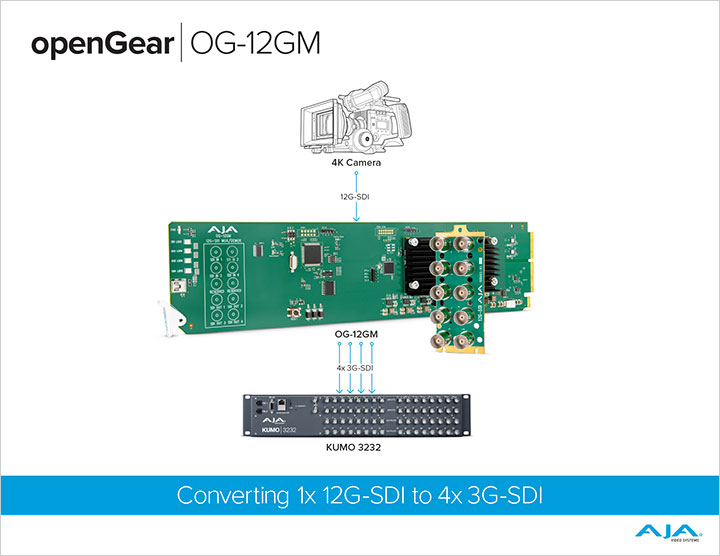

OG-12GM Workflow Diagram

This workflow diagram shows a 4K camera system outputting video via 1x 12G-SDI connection. This output is connected to the 12G-SDI input of the OG-12GM, which then converts it into quad-link 3G-SDI, here shown with an AJA KUMO 3232 3G-SDI router providing further distribution.

Download

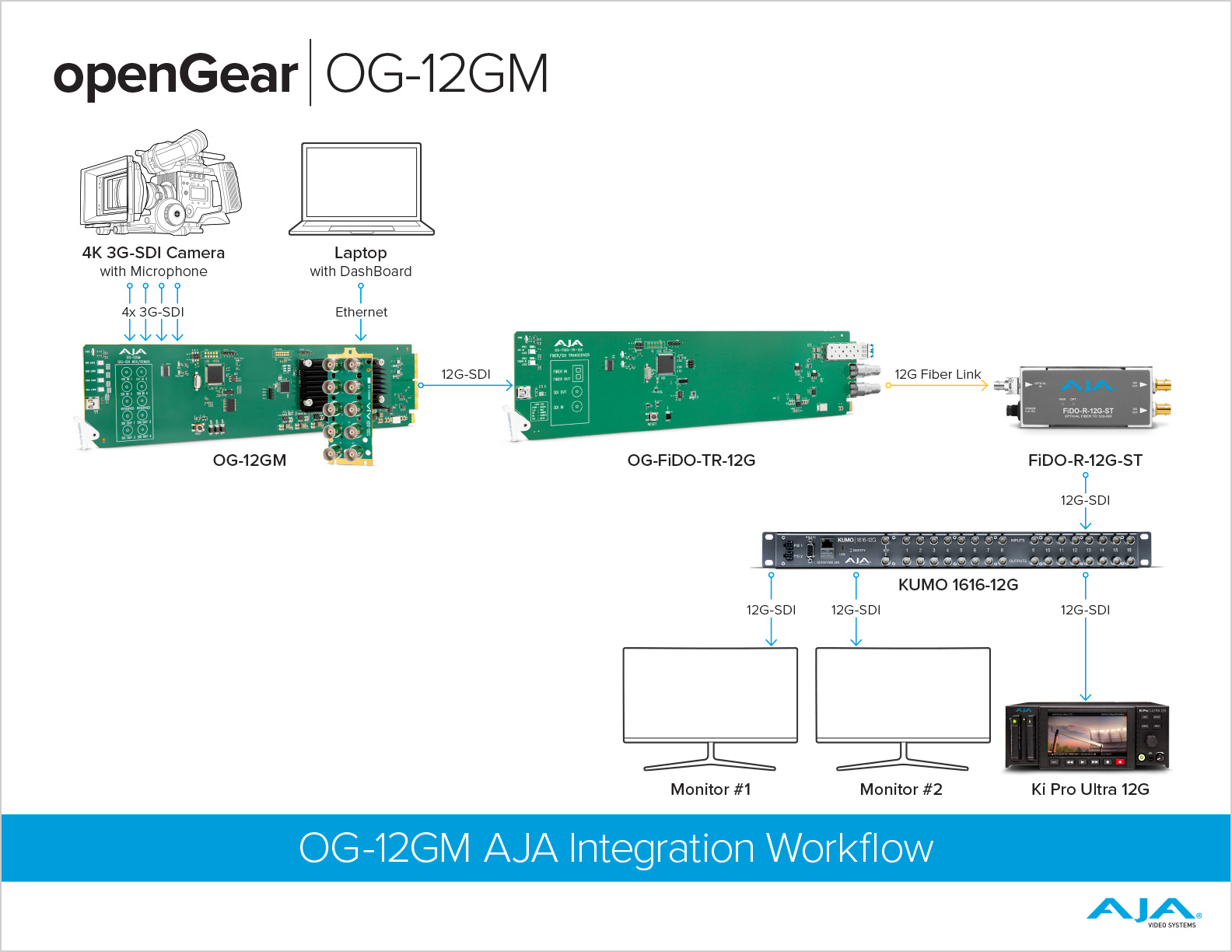

OG-12GM Integration Diagram

This integration workflow diagram shows a 4K camera system outputting video via a 4x 3G-SDI quad-link connection. The OG-12GM provides a conversion from quad-link 3G-SDI into single link 12G-SDI, allowing the 4K 3G-SDI camera source to fit seamlessly into a 4K 12G-SDI eco system. Multiple OG-12GM cards can be housed in the appropriate openGear rackframe, making multi-cam conversions easy.

Download

openGear Compatibility

The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the standard for professional rackframe solutions.

Flexible I/O

The modular rear panel allows custom I/O connections per card (included with individual cards).

Failsafe

The optional redundant power supply provides a secondary power source in the event of a primary power failure.

Ethernet Access

A standard Ethernet connection allows the frame to be accessed via the Ross DashBoard software application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.

More Info

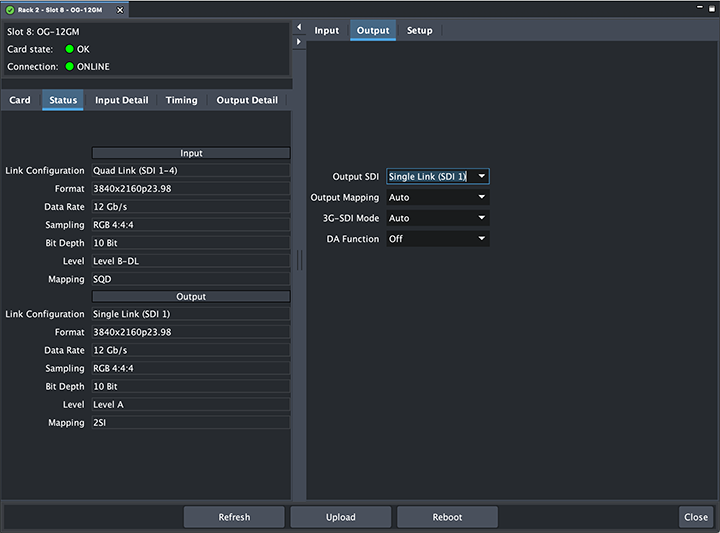

DashBoard Software

DashBoard software offers quick and convenient configuration and control of openGear cards on macOS, Windows, and Linux.

AJA Mini-Matrix

Information on the complete line of AJA openGear frames and cards is now available in the Mini-Matrix. AJA products are extensive, and this resource helps you find the right converter for any situation, wherever you are. Individual products have links back to the main AJA website for more details.

Launch Mini-Matrix

Industry Leading Support

AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your openGear installation, configuration, operation, or encounter any technical issues, AJA Support will work with you to get up and running.

openGear products are covered by a generous five year warranty.  Please see the individual Product Manual for additional specifics regarding warranty conditions for the product itself.

Related Products

12GM

12G-SDI Muxer/DeMuxer

Visit Page

Tech Specs

Print Tech Specs

Video Formats

  • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • (4K) 4096x2160PsF 23.98, 24, 25, 29.97, 30
  • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (UltraHD) 3840x2160PsF 23.98, 24, 25, 29.97, 30
  • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920x1080i 50, 59.94, 60
  • (HD) 1280x720p 50, 59.94, 60
  • (SD) 625i 50
  • (SD) 525i 59.94
  • YCbCr 4:2:2/4:4:4
  • RGB 4:4:4, SMPTE or Full level
  • 10 or 12-bit



Note: Raster and Frame Rate Dependent, please see OG-12GM Video Formats in the Download / Documents section of the website product page.

Video Input Digital

  • 4x 12G-SDI BNC, SMPTE 259/292/372/424/2081/2082
  • 4x 3 Gb SDI (Level A or B Dual Link)
    • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (4K) 4096x2160PsF* 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (Ultra HD) 3840x2160PsF* 23.98, 24, 25, 29.97, 30
  • 4x 1.5 Gb SDI
    • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30
    • (4K) 4096x2160PsF 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840x2160PsF 23.98, 24, 25, 29.97, 30
  • 2x 6 Gb SDI
    • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • 2x 3 Gb SDI (Level B Dual Stream)
    • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30
    • (4K) 4096x2160PsF 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840x2160PsF 23.98, 24, 25, 29.97, 30
  • 2x 1.5 Gb SDI (Dual Link HD-SDI), SMPTE-372
    • (HD) 1920x1080p 47.95, 48, 50, 59.94, 60
  • 2x 1.5 Gb SDI (Dual Stream HD-SDI)
    • (HD) 2x 1920x1080p 23.98, 24, 25, 29.97, 30
  • 1x 12 Gb SDI
    • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • 1x 6 Gb SDI
    • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30
    • (2K) 2048x1080p 47.95, 48, 50, 59.94, 60
    • (HD) 1920x1080p 50, 59.94, 60
  • 1x 3 Gb SDI (Level A or B Dual Link)
    • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080i 50, 59.94, 60
    • (HD) 1280x720p** 50, 59.94, 60
  • 1x 3 Gb SDI (Level B Dual Stream)
    • (HD) 2x 1920x1080p 23.98, 24, 25, 29.97, 30
  • 1x 1.5 Gb SDI
    • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30
    • (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080i 50, 59.94, 60
    • (HD) 1280x720p 50, 59.94, 60
  • 1x 270 Mb SDI
    • (SD) 625i 50
    • (SD) 525i 59.94



*PsF is Level B Dual Link
**1280x720p is Level A Only

Video Output Digital

  • 4x 12G-SDI BNC, SMPTE 259/292/372/424/2081/2082
  • 4x 3 Gb SDI (Level A or B Dual Link)
    • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (4K) 4096x2160PsF* 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (Ultra HD) 3840x2160PsF* 23.98, 24, 25, 29.97, 30
  • 4x 1.5 Gb SDI
    • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30
    • (4K) 4096x2160PsF 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840x2160PsF 23.98, 24, 25, 29.97, 30
  • 2x 6 Gb SDI
    • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • 2x 3 Gb SDI (Level B Dual Stream)
    • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30
    • (4K) 4096x2160PsF 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840x2160PsF 23.98, 24, 25, 29.97, 30
  • 2x 1.5 Gb SDI (Dual Link HD-SDI), SMPTE-372
    • (HD) 1920x1080p 47.95, 48, 50, 59.94, 60
  • 2x 1.5 Gb SDI (Dual Stream HD-SDI)
    • (2K) 2x 1920x1080p 23.98, 24, 25, 29.97, 30
    • (2K) 2x 1920x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 2x 1920x1080p 23.98, 24, 25, 29.97, 30
    • (HD) 2x 1920x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 2x 1280x720p 47.95, 48, 50, 59.94, 60
    • (HD) 2x 1920x1080i 47.95, 48, 50, 59.94, 60
  • 1x 12 Gb SDI
    • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • 1x 6 Gb SDI
    • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30
    • (2K) 2048x1080p 47.95, 48, 50, 59.94, 60
    • (HD) 1920x1080p 50, 59.94, 60
  • 1x 3 Gb SDI (Level A or B Dual Link)
    • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080i 50, 59.94, 60
    • (HD) 1280x720p** 50, 59.94, 60
  • 1x 3 Gb SDI (Level B Dual Stream)
    • (2K) 2x 1920x1080p 23.98, 24, 25, 29.97, 30
    • (2K) 2x 1920x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 2x 1920x1080p 23.98, 24, 25, 29.97, 30
    • (HD) 2x 1920x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 2x 1280x720p 47.95, 48, 50, 59.94, 60
    • (HD) 2x 1920x1080i 47.95, 48, 50, 59.94, 60
  • 1x 1.5 Gb SDI
    • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30
    • (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080i 50, 59.94, 60
    • (HD) 1280x720p 50, 59.94, 60
  • 1x 270 Mb SDI
    • (SD) 625i 50
    • (SD) 525i 59.94



*PsF is Level B Dual Link
**1280x720p is Level A Only

Supported Conversions and Functions

  • Quad 3G-SDI Level A to Single 12G-SDI
  • Quad 3G-SDI Level B Dual Link to Single 12G-SDI
  • Quad 3G-SDI Level A to Dual 6G-SDI
  • Quad 3G-SDI Level B Dual Link to Dual 6G-SDI
  • Quad 3G-SDI Level A to Quad 3G-SDI Level B Dual Link
  • Quad 3G-SDI Level B Dual Link to Quad 3G-SDI Level A
  • Quad 1.5G-SDI to Single 6G-SDI
  • Dual 6G-SDI to Single 12G-SDI
  • Dual 6G-SDI to Quad 3G-SDI Level A
  • Dual 6G-SDI to Quad 3G-SDI Level B Dual Link
  • Dual 3G-SDI Level A to Single 6G-SDI
  • Dual 3G-SDI Level B Dual Stream to Single 6G-SDI
  • Dual Link 1.5G-SDI to Single 3G-SDI Level A
  • Dual Link 1.5G-SDI to Single 3G-SDI Level B Dual Link
  • Dual Stream 1.5G-SDI to Single 3G-SDI Level B Dual Stream
  • Single 12G-SDI to Quad 3G-SDI Level A
  • Single 12G-SDI to Quad 3G-SDI Level B Dual Link
  • Single 12G-SDI to Dual 6G-SDI
  • Single 6G-SDI to Dual 3G-SDI Level A
  • Single 6G-SDI to Dual 3G-SDI Level B Dual Stream
  • Single 6G-SDI to Quad 1.5G-SDI
  • Single 3G-SDI Level A to Dual Link 1.5G-SDI
  • Single 3G-SDI Level B Dual Link to Dual Link 1.5G-SDI
  • Single 3G-SDI Level B Dual Stream to Dual Stream 1.5G-SDI
  • Two Sample Interleave (2SI) to Square Division (Quadrant) pixel mapping
  • Square Division (Quadrant) to Two Sample Interleave (2SI) pixel mapping
  • HDR VPID pass-through or override for Colorimetry and Transfer Characteristic
  • Pass-through of Single Link 12G, 6G, 3G, 1.5G, and 270M SDI video
  • Distribution Amplifier support
    • Single Link Outputs duplicated on outputs 2, 3, and 4
    • Dual Link Outputs duplicated on outputs 3, and 4
  • Input signal diagnostics
  • Input timing analyzer for Quad/Dual link signals

Cable Equalization

(Belden 1694A coax)

  • 12 Gbps, 70m
  • 6 Gbps, 100m
  • 3 Gbps, 140m
  • 1.5 Gbps, 200m
  • 270 Mbps, 300m

Audio Input/Output Digital

  • Passes SDI embedded audio, 24-bit, up to 16-channels

User Interface

  • openGear DashBoard network control software via Windows, macOS, or Linux

Size

  • openGear standard form factor, front slot, and rear card
  • Two slots required for each card

Weight

  • 0.5 lb (0.3 kg)

Power

  • openGear frame compatible, 13 watts max per card

Environment

  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
