Scan Converters Overview

AJA's ROI family of scan converters allow exceptionally high quality conversion of computer and video signals in a small Mini-Converter form factor. ROI offers Region of Interest support allowing computer signals and extraction of video source signals, including DVI, DP, HDMI and 3G-SDI to be scaled and converted to 3G-SDI and for some models, and/or HDMI video. With incredible image scaling and rotation, extensive aspect ratio and frame rate conversion, ROI fulfills the need to scale computer and video sources to a desired resolution, all in realtime, in a very portable and easy to use package.

MiniMatrix

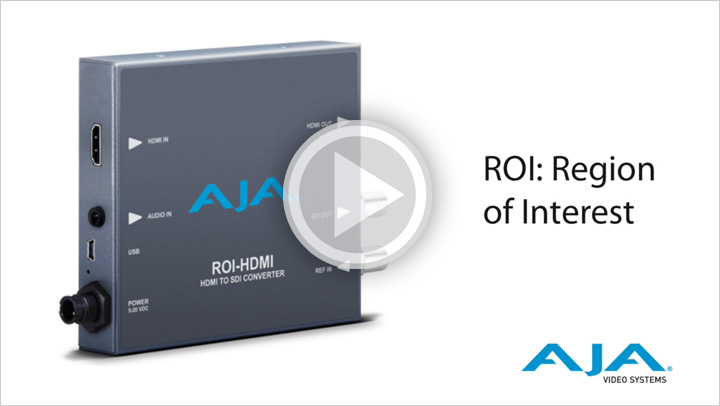

ROI Scan Converter Video

Watch this video to learn how to configure and control your ROI with AJA's free Mini-Config control software.

View Video

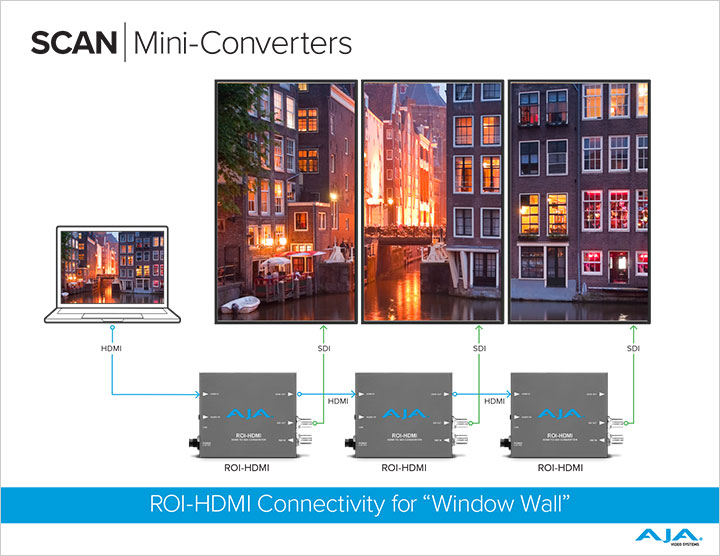

ROI Window Wall Workflow

You're able to easily create highly effective and engaging displays by using additional ROI-HDMI mini-converters. By utilizing three ROI-HDMI mini-converters you can feed three display monitors side by side, each rotated to portrait mode. By using the HDMI pass through of the ROI-HDMI, the HDMI routed image is in sync, with each ROI-HDMI providing the necessary region of interest output via SDI. The result is a visually exciting and creative way to feed display content.

View Workflow

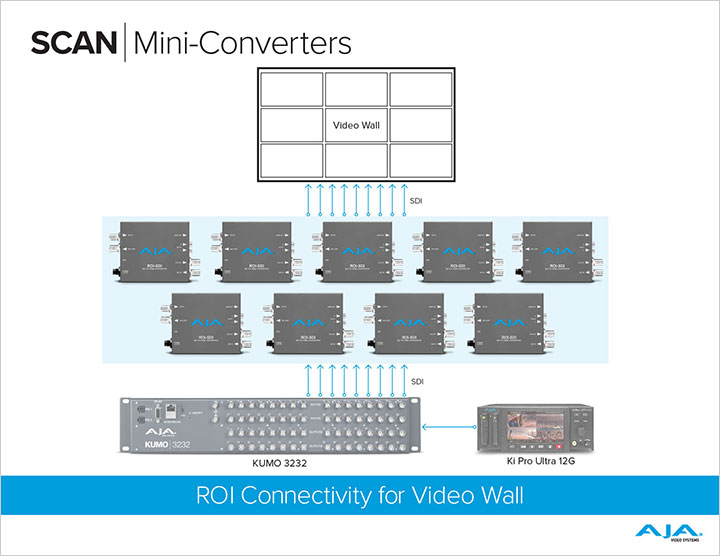

ROI Video Wall Workflow

It is also possible to expand output options and create a large, synchronized video wall display. In this workflow diagram you can see a HD video source in the Ki Pro Ultra 12G is being fed directly to a KUMO 3232 router. The KUMO 3232 can pass the same, synchronized signal to each of the nine ROI-HDMI's. The individual region of interest is output via SDI to the nine video monitors. Immense flexibility can be achieved with ease, with the same solution being scalable to up to 25 monitors as a 5 x 5 video wall. To go larger simply use the KUMO 6464 and create walls of up to 64 screens in an 8 x 8 video wall, all from a single HD source.

View Workflow

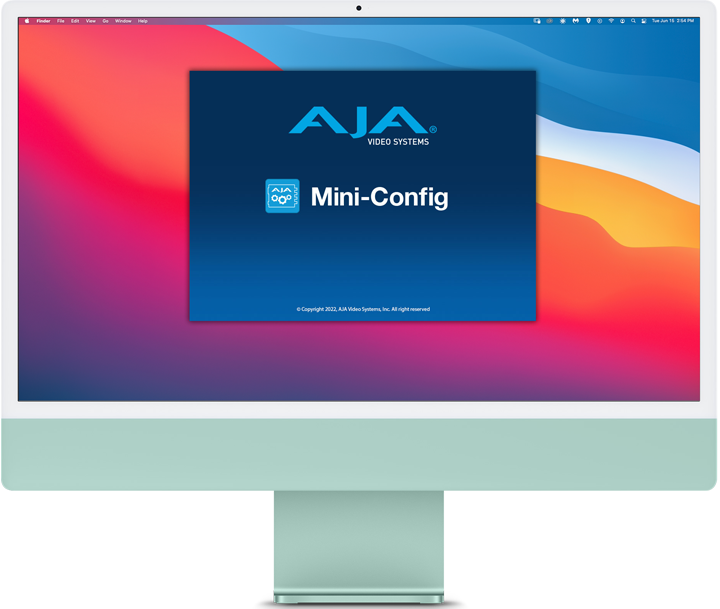

USB and Mini-Config Support

USB and Mini-Config Support

AJA’s free Mini-Config software can be used with any USB-enabled AJA Mini-Converter and provides an easy-to-use graphical interface with detailed information about the current input and output formats. Control all the parameters of any supported AJA Mini-Converter as well as loading firmware updates from AJA that add new features and functionality.

Download Mini-Config

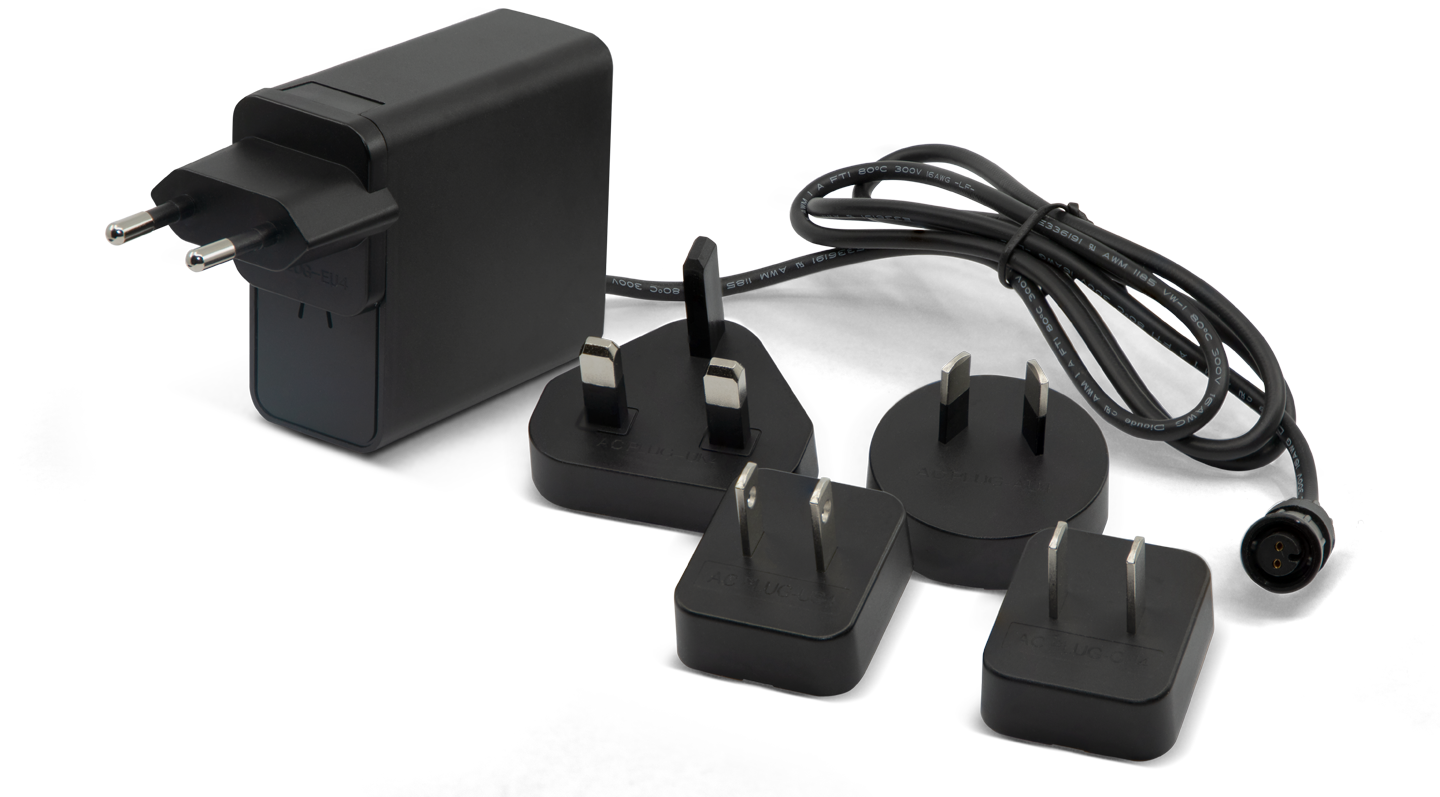

Universal Power

Universal Power Supply

All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.

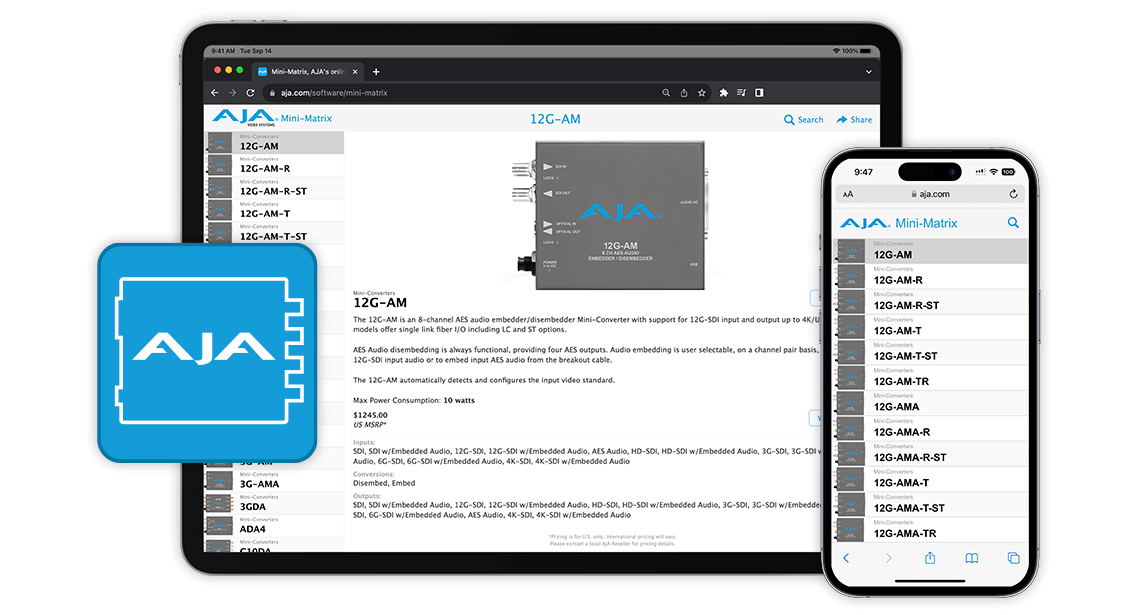

AJA Mini-Matrix

AJA Mini-Matrix

Mini-Matrix offers information on the complete line of AJA Mini-Converters as a convenient search tool, available online. The Mini-Converter product line is extensive and this app helps you find the right converter for any situation, wherever you are. Please click here to use Mini-Matrix to help find the AJA Mini-Converter you need.

Launch Mini-Matrix

5 Year Warranty

Industry Leading Support

AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your Mini-Converter installation, configuration, operation or encounter any technical issue, AJA Support will work with you to get up and running.

Mini-Converter products are covered by a generous five year warranty. Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.
