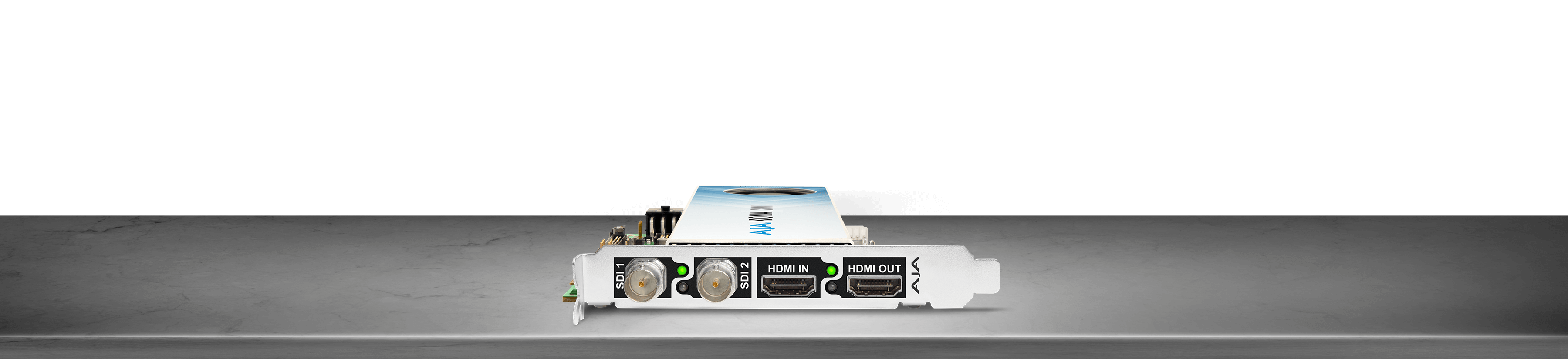

KONA XM

KONA XM

Video I/O for AI/AR Medical Devices

$3,995 US MSRP*

* Pricing is for US only. International pricing will vary.

KONA XM

Overview

Tech Specs

Developer

Overview

KONA XM represents a new generation of I/O technology from AJA that allows medical OEM developers to leverage streaming DMA (Direct Memory Access) to ensure ultra-low latency for the most mission-critical video applications, including surgical and medical video hardware devices. KONA XM is designed to be the heart of the next generation medical video technology solutions.

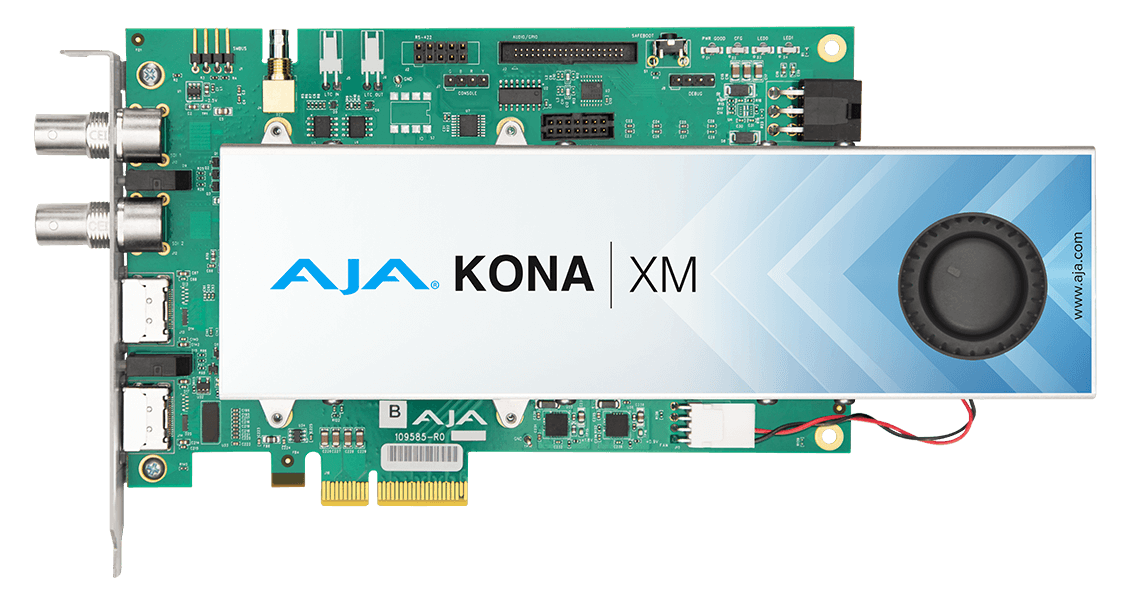

KONA XM is a 4-lane, PCIe 3.0 video I/O card with dual 12G-SDI BNC connections, one for input and one for output, and two full-sized HDMI 2.0 connections, one for input and one for output. KONA XM provides an ultra-low latency design, which enables powerful real time workflows with no perceptible delay on I/O and processing.

KONA XM lets OEM developers achieve sub-frame latencies with GPUDirect DMA; the ability to transfer data from host memory into a hardware accelerator and stream the results back to host memory without using local FPGA memory as a temporary buffer.

KONA XM supports video healthcare innovation by developing world-class video devices that are ideally suited for OEM customers looking for reliable, best-in-class video I/O technology.



Features

  • 4K/UltraHD/2K/HD/SD capture and playback, up to 60p
  • Ultra-Low Latency: As low as sub-frame delay on processed video output
  • 2x uni-directional 12G-SDI connections with 16-channel embedded audio
  • HDMI 2.0 input and output, with VESA support
  • RGB 4:4:4 12-bit workflows supported
  • YCbCr 4:2:2 10-bit workflows supported
  • Windows and Linux support for OEM applications via the AJA SDK
  • In Firmware Microcontroller
  • Supports graphics up to 4K/UltraHD with alpha channel
  • VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry and Luminance via SDI
  • HLG and HDR10 HDR support, via HDMI
  • Audio accessed through the AJA SDK
  • Available in active and passive cooling options
  • Three year warranty



Next Generation Medical Procedures with NVIDIA IGX and Holoscan

AJA KONA XM is the recommended video I/O solution for NVIDIA’s IGX edge computing AI hardware platform. KONA XM integrates seamlessly with NVIDIA Holoscan, a deployable software solution targeting IGX and other NVIDIA platforms. The combination of NVIDIA IGX and Holoscan makes it easy for medical device manufacturers to apply real time, low latency, high performance AI-driven overlays to live video in a variety of medical devices and create innovative medical video solutions.

Ultra-Low Latency / Streaming DMA

KONA XM supports application driven streaming DMA (Direct Memory Access); the DMA operation happens directly between the video I/O and computer buffer, completely bypassing the on-card memory. This enables OEM developers to achieve as low as sub-frame latencies and a much simpler method of dealing with dynamic video (i.e., video whose frame rate may wander or generated video that needs to be generated much closer to the scan line it's output).

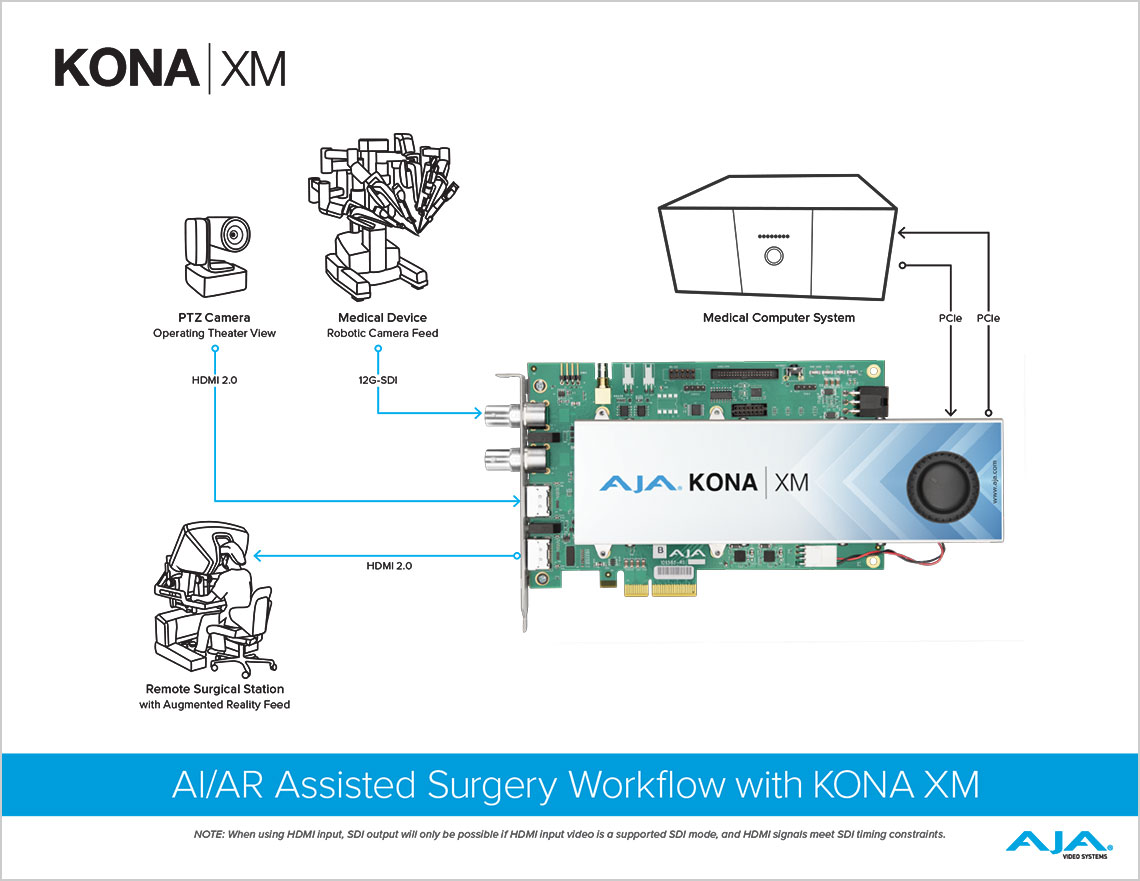

KONA XM Augmented Reality Assisted Surgery Workflow Diagram

In this workflow example, the video signal is coming into the KONA XM inside a medical device computer system from two separate video sources: a remotely controllable PTZ camera,  and the robotic surgical device up to UltraHD/4K. The signal is then processed in the medical device's computing platform and the video signal with the AI/AR overlay is then fed into the surgical workstation.

Download Workflow

IEC 60601-1-2 EMI/ESD

KONA XM has undergone rigorous testing to meet the IEC 60601-1-2 EMI/ESD standards required for medical device components—one of the few video I/O cards on the market to do so.

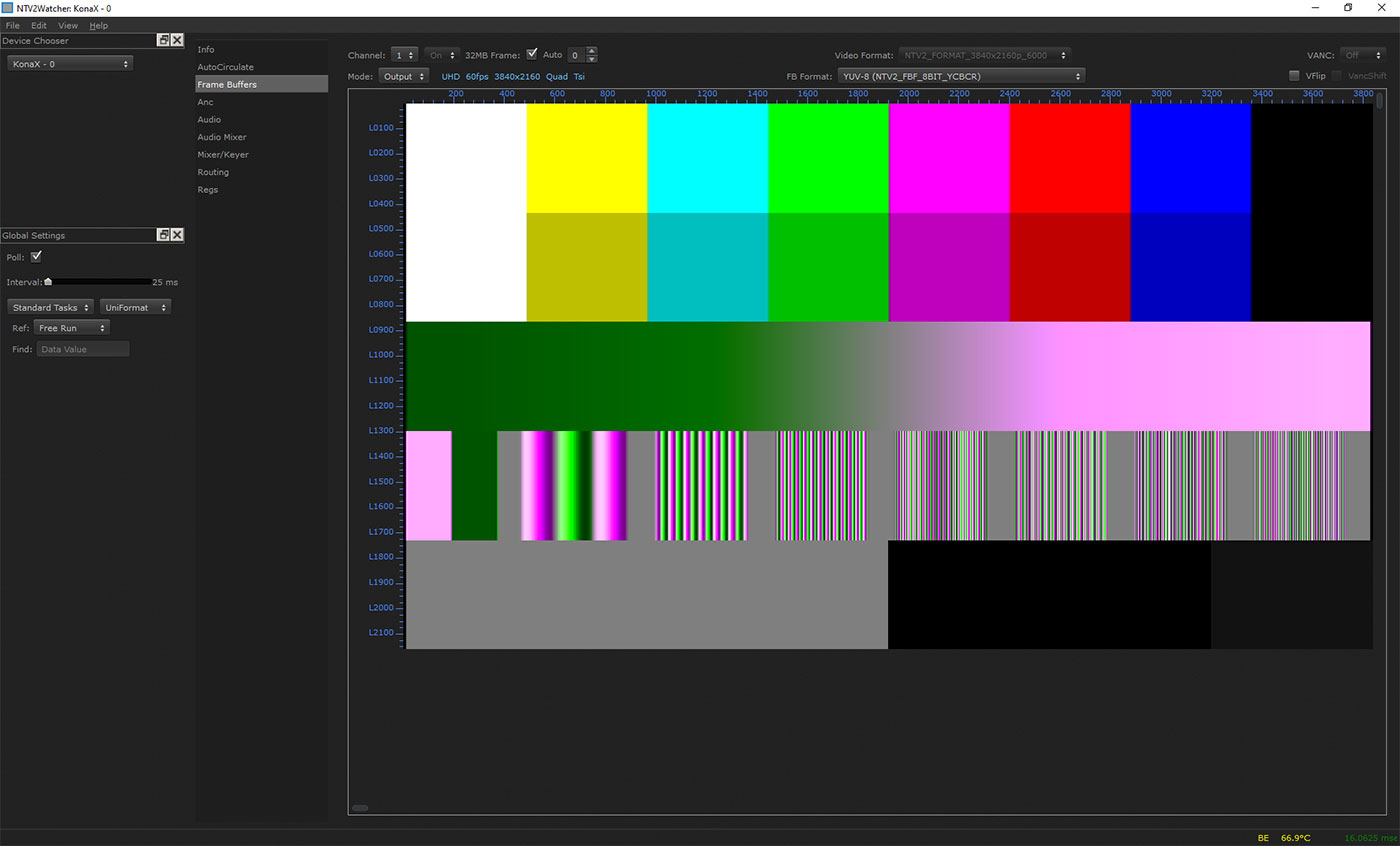

AJA SDK

Developers who wish to use AJA’s world-class SDK (Software Development Kit) can choose between two different methods to gain access and start putting their creativity to work with this rich, deep and powerful set of video technologies. AJA’s SDK is available on Windows, Linux, and macOS, including support for the latest Apple silicon.

For the quickest and easiest way to get up and running with the core AJA SDK, we recommend the AJA Open Source Developer path which is under the MIT license and hosted via GitLab.

For access to the AJA SDK including AJA proprietary technologies and world-class support, we recommend the AJA Developer Program path. This is accessed via the dedicated AJA SDK Support Site, and requires a signed agreement.

It is entirely possible for a developer to begin on the AJA Open Source Developer path, and if necessary in the future, apply to enroll in the AJA Developer Program path.

In Firmware Microcontroller

KONA XM OEM developers can run code directly on the card with the in Firmware Microcontroller for supervisory and safety purposes and achieve ultra-low latency or functionality that might need to exist before the system containing the card fully boots.

This feature makes the high performance video processing of the KONA XM ideal for developing and testing artificial intelligence and augmented reality video playback without the need to create a fully finalized device. Medical device developer partners can use the in Firmware Microcontroller to speed the development cycle.

KONA XM Operating Systems Compatibility

  • Linux Ubuntu support for 20.04 LTS, 22.04
  • Linux Rocky 8.5 and Rocky 9.1
  • Windows 11, 10 and updates

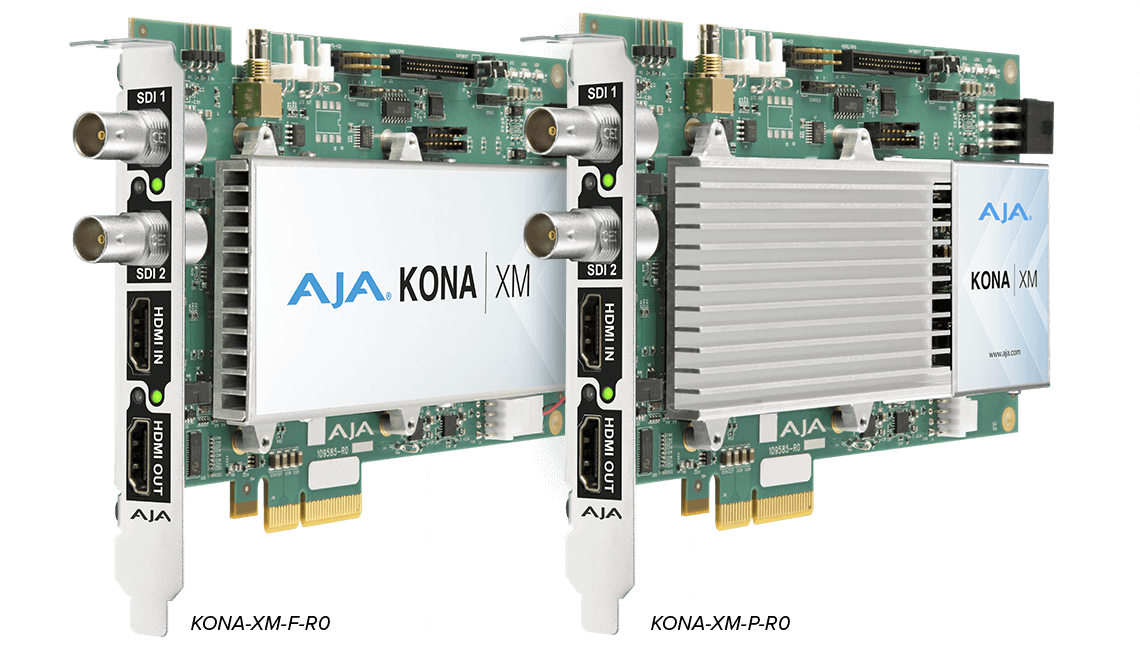

Two Cooling Options

KONA XM is available in both active (with fan) and passive (fanless) cooling versions.

Part Numbers:

Passive: KONA-XM-P-R0  $3,995 US MSRP

Active: KONA-XM-F-R0  $4,195 US MSRP

Industry Leading Developer Support

AJA’s SDK support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your KONA XM development, configuration, operation or encounter any technical issue, AJA SDK Support will work with you to get up and running.

KONA products are covered by a generous three year warranty.

Tech Specs

Print Tech Specs

SDI Video Formats

  • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1920x1080i 50, 59.94, 60
  • (HD) 1280x720p 50, 59.94, 60
  • (SD) 625i 50
  • (SD) 525i 59.94

HDMI Video Formats

  • (4K CEA) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (2K CEA) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920x1080i 50, 59.94, 60
  • (VESA DMT) 1600x1200p 60
  • (VESA DMT) 1280x1024p 60
  • (HD) 1280x720p 50, 59.94, 60
  • (VESA DMT) 1024x768p 60
  • (VESA DMT) 800x600p 60
  • (SD) 625i 50
  • (SD) 525i 59.94
  • (VESA DMT) 640 x 480p 60



Note: Additional VESA (DMT) formats supported for certain applications

Video Inputs Digital

  • 12G-SDI, SMPTE-2082, 12-bit, 10-bit
    • YCbCr 4:2:2 10-bit up to 60p, RGB 4:4:4 12-bit up to 30p
  • 6G-SDI, SMPTE-2081, 10-bit
  • 3G-SDI, SMPTE 425
    • RGB 4:4:4 12-bit, YCbCr 4:2:2 10-bit
  • 1.5G-SDI, SMPTE 292M
    • Single Link HD-SDI YCbCr 4:2:2 10-bit
  • 270 Mbps SDI, SMPTE 259M-C
    • YCbCr 4:2:2 10-bit, 8-bit
  • HDMI v2.0
    • 30/36-bits/pixel, RGB or YUV, 6 Gbps per color component
    • 4K, UltraHD, 2K, HD, and SD
    • YCbCr 4:2:2 10-bit up to 60p, RGB 4:4:4 12-bit up to 30p
    • Connectors are full-size BNC / full-size HDMI
    • HDMI Inputs and Outputs support VESA (DMT) rasters and at limited rates

Video Outputs Digital

  • 12G-SDI, SMPTE-2082*, 12-bit, 10-bit
    • YCbCr 4:2:2 10-bit up to 60p, RGB 4:4:4 12-bit up to 30p
  • 6G-SDI, SMPTE-2081*, 10-bit
  • 3G-SDI, SMPTE 425
    • RGB 4:4:4 12-bit, YCbCr 4:2:2 10-bit
  • 1.5G-SDI, SMPTE 292M
    • Single Link HD-SDI YCbCr 4:2:2 10-bit
  • 270 Mbps SDI, SMPTE 259M-C
    • YCbCr 4:2:2 10-bit, 8-bit
  • HDMI v2.0
    • 30/36-bits/pixel, RGB or YUV, 6 Gbps per color component
    • 4K, UltraHD, 2K, HD, and SD
    • YCbCr 4:2:2 10-bit up to 60p, RGB 4:4:4 12-bit up to 30p
    • Connectors are full-size BNC / full-size HDMI
    • HDMI Input and Output support VESA rasters



*Compliant with subsets of specification for supported formats

HDR

  • SDI: VPID signaling for SDR/HDR Transfer Characteristics, Colorimetry, and Luminance
  • HDMI: HDR10 Support - HDR Infoframe metadata, compatible with HDMI 2.0a/CTA-861.3
  • HDMI: HLG Support - compatible with HDMI 2.0b/CTA-861-G

SDI I/O
(Via PCIe Bracket)

  • 2x full-size 12G-SDI connections
  • SDI connections are one for input and one for output
    • Single channel SDI capture (plus simultaneous SDI pass-through monitoring)
    • Single channel SDI output

HDMI I/O
(Via PCIe Bracket)

  • 2x full-size (Type A) HDMI 2.0 connections
  • HDMI connections are uni-directional (1x Input, 1x Output)
    • Single channel HDMI input
    • Single channel HDMI output

HDMI Monitoring for SDI Inputs

  • HDMI output connector supports
    • Single channel SDI source monitoring

Video I/O Performance

  • Capable of two channel 4K p60 capture or playback

Audio Support

  • KONA XM card is equipped with on-board hardware to support embedded audio, and the optional KONA Xpand board contains the hardware to support AES/EBU digital audio and discreet analog audio (and other functions).  However, audio functionality is controlled by firmware programming.  If you require audio functionality with KONA XM, please consult AJA SDK Support for more information.

Downstream Keyer

  • Supports graphics up to 4K/UltraHD with alpha channel over video, matte or framebuffer, or framebuffer content over incoming video or matte

Reference

  • Analog Color Black (1V) or Composite Sync (2 or 4V) or HD Tri-Level Sync (1V)
  • Reference input is terminated into 75 ohms when Genlock is set to Ref In



Note: Available via optional KONA Xpand card or via customer supplied breakout connection to internal card

Timecode

  • LTC timecode input
  • LTC timecode output



Note: Available via optional KONA Xpand card or via customer supplied breakout connection to internal card

Electrical Interface

  • PCIe Gen 3x4

Machine Control

  • RS-422, Sony 9-pin protocol
  • 9-pin D-connector pinout is as follows:

1     GND
2     RX-
3     TX+
4     GND
5     No Connection
6     GND
7     RX+
8     TX-
9     GND
Shell GND



Note: Available via optional KONA Xpand card or via customer supplied breakout connection to internal card

Noise

  • <50dBA (A-weighted at 1m in free air) <40-45dBA preferred (Phase 01 )>
  • Fan is rated at 33.1dBA

Regulatory Compliance

  • RoHS 3

  • IEC 62368-1: 2014 2nd Edition safety standard

  • Performed testing to the IEC/EN 60601-1-2: 2015 + A1: 2021 EMC standard

  • EMC testing against other EMC standards, including EN 55032 and EN 55035

Size

  • Passive Configuration (no fan): 190.5 x 15.9 x 98.6 mm (7.5" x 0.63" x 3.88")  Bracket Height: 127 mm (5.0")
  • Active Configuration (with fan): 247.7 x 15.9 x 98.6 mm (9.75" x 0.63" x 3.88")  Bracket Height: 127 mm (5.0")
  • Xpand Card: 108.0 x 15.9 x 98.6 mm (4.25" x 0.63" x 3.88")  Bracket Height: 127 mm (5.0")

Weight

  • PCIe Card: Active (with fan): 290.3g (10.2oz), Passive (no fan): 217.7g (7.7oz)
  • Xpand Card: 90.7g (3.2oz)

Power

  • 20W typical with 16W on +12V and 4W on +3.3V
  • PC Internal or PCi Aux Power Connector: Molex part number 45558-0003



Note: Card can utilize PCIe power from a 6 pin PCi 2x3 Aux Power  connector or from the PCIe slot

Environment

  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet) IEEE 1588-2008
