12GDA

12GDA

12G-SDI 1x6 Distribution Amplifier

$625 US MSRP*

* Pricing is for US only. International pricing will vary.

Overview

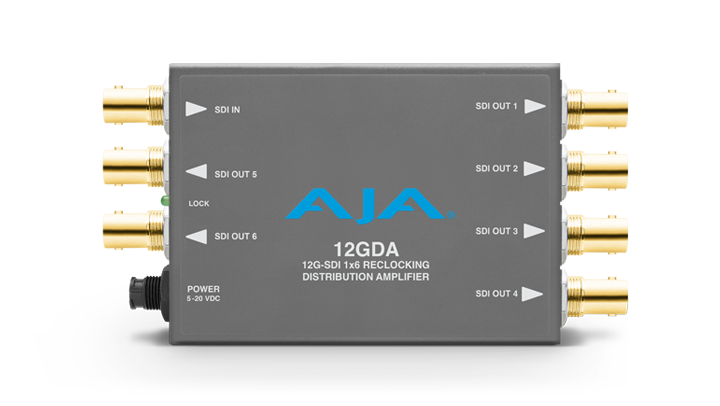

12GDA is a miniature 1x6 12G-SDI reclocking distribution amplifier that allows facilities to save on cable runs and install times. With support for 12G-SDI for 4K/UltraHD single link workflows, the format agnostic device features six separately buffered SDI outputs identical to the recovered input. It also offers automatic input detection, reclocking and cable equalization, as well as a throw down package and LED signal detection indicator.

Features

  • Compact 12G-SDI distribution
  • Six separately buffered outputs
  • Miniature size
  • 12G cable equalization (1694 coax)
  • 12 Gbps, 70m
  • 6 Gbps, 120m
  • 3 Gbps, 190m
  • 1.5 Gbps, 195m
  • 270 Mbps, 405m
  • 12G/6G/3G/HD/SD-SDI input, auto sensing
  • Passes all ancillary data
  • DWP-U-R1 power supply included
  • Five year warranty

12G-SDI from Camera to Fiber, Edit and More

Explore how AJA’s latest 12G-SDI solutions can simplify production and post workflows, providing ample bandwidth to handle high resolution, high frame rate and deep color content over a single cable.

Learn more about our FiDO 12G-SDI/optical fiber Mini-Converters, 12GDA distribution amplifier, 12GM muxer/demuxer, FS-HDR converter/frame synchronizer and Io 4K Plus Thunderbolt™ 3-equipped audio and video I/O device with 12G-SDI support.

Universal Power Supply

All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.

Compact and Portable

AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

AJA Mini-Matrix

Information on the complete line of AJA mini-converters is now available in the Mini-Matrix. AJA products are extensive and this resource helps you find the right converter for any situation, wherever you are.

Individual products have links back to the main AJA website for more details.

Launch Mini-Matrix

Industry Leading Support

AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your Mini-Converter installation, configuration, operation or encounter any technical issue,  AJA Support will work with you to get up and running.

Mini-Converter products are covered by a generous five year warranty. Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.


Tech Specs


Video Formats

• 100 Mbps - 12 Gbps, format agnostic


Video Input Digital

• 1 x 12G-SDI BNC, SMPTE-259/292/424/2081/2082


Video Output Digital

• 6 x 12G-SDI BNC, SMPTE-259/292/424/2081/2082


Cable Equalization

(Belden 1694A coax)

• 12 Gbps, 70m
• 6 Gbps, 120m
• 3 Gbps, 190m
• 1.5 Gbps, 195m
• 270 Mbps, 405m


Reclocking

• 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
• All other rates are passed through and not reclocked


Size (w x d x h)

• 5.8" x 3.1 x 1" (147mm x 79mm x 25mm)


Weight

• 0.7 lb (0.3 kg)


Power

• +5-20VDC, regulated, 3 watts, power supply required, included with purchase
• AC Adapter: 100-240VAC, 50/60 Hz, universal input


Environment

• Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
• Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
