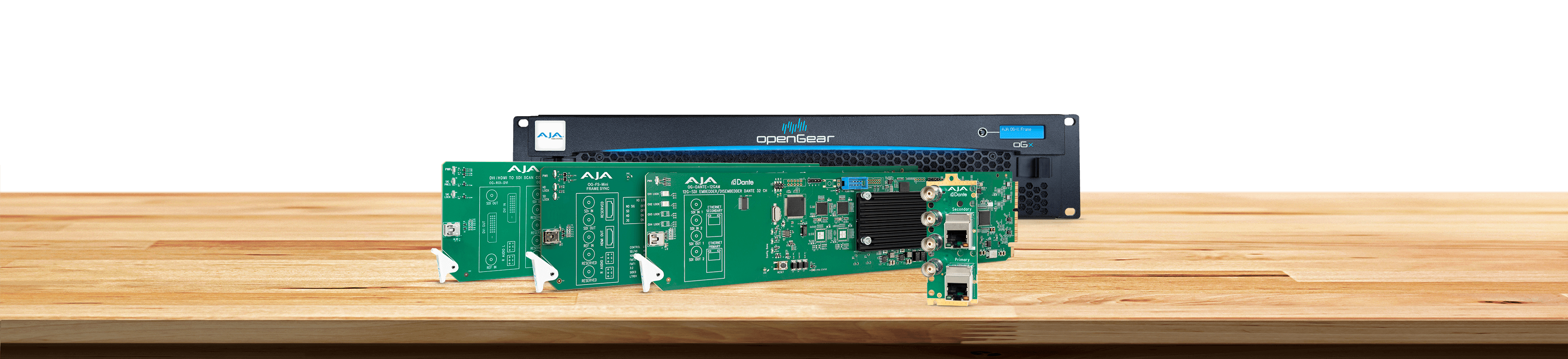

openGear Overview

For critical broadcast and IP applications, AJA openGear compatible converter cards provide the highest levels of quality and reliability for use in openGear frames including the new AJA OG-X-FR. AJA offers cards for video and audio over IP, infrastructure, HDMI/SDI conversion, scan conversion, Fiber conversion and scaling. All AJA openGear cards are DashBoard software compatible, allowing easy configuration and control.

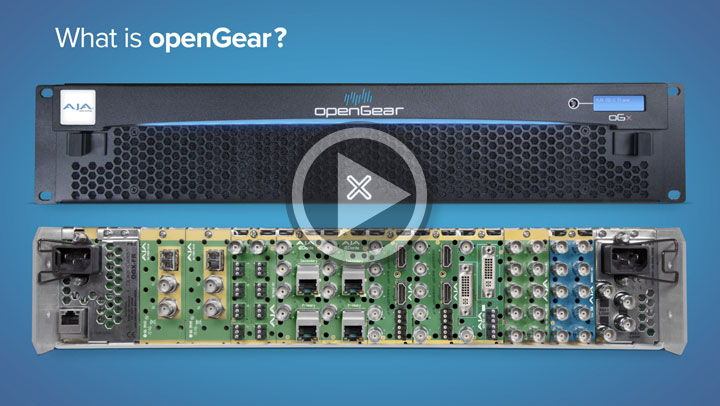

openGear Video Overview

Video Overview

Watch this video to learn more about openGear advantages, DashBoard software and AJA openGear card solutions for your workflows.

Watch Video

DashBoard Support with Smart Control

DashBoard Support
with Smart Control

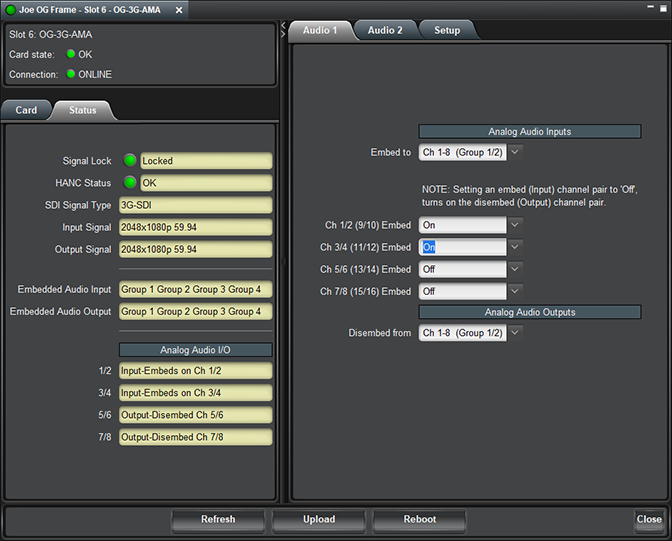

DashBoard is the one control system that unites openGear. DashBoard offers setup, real time control, monitoring, and tools for creating customized workflow through CustomPanels. The optional Advanced Networking controller features DataSafe, which automatically saves and restores settings if a module is swapped.

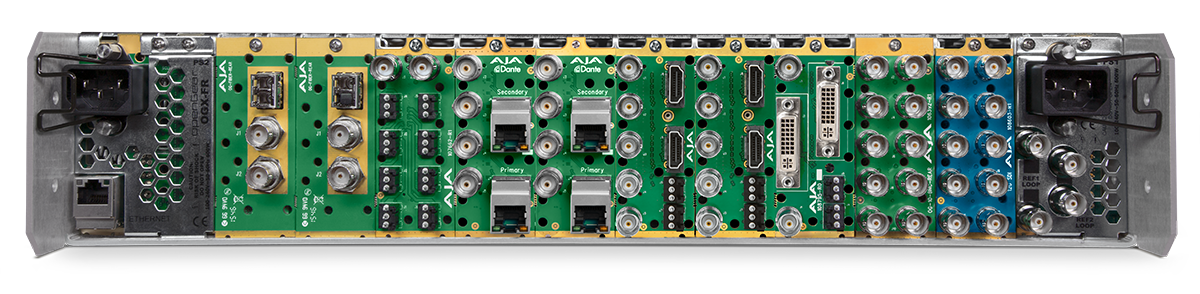

openGear Compatibility

openGear Compatibility

The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.

openGear ROI Video Wall Workflow

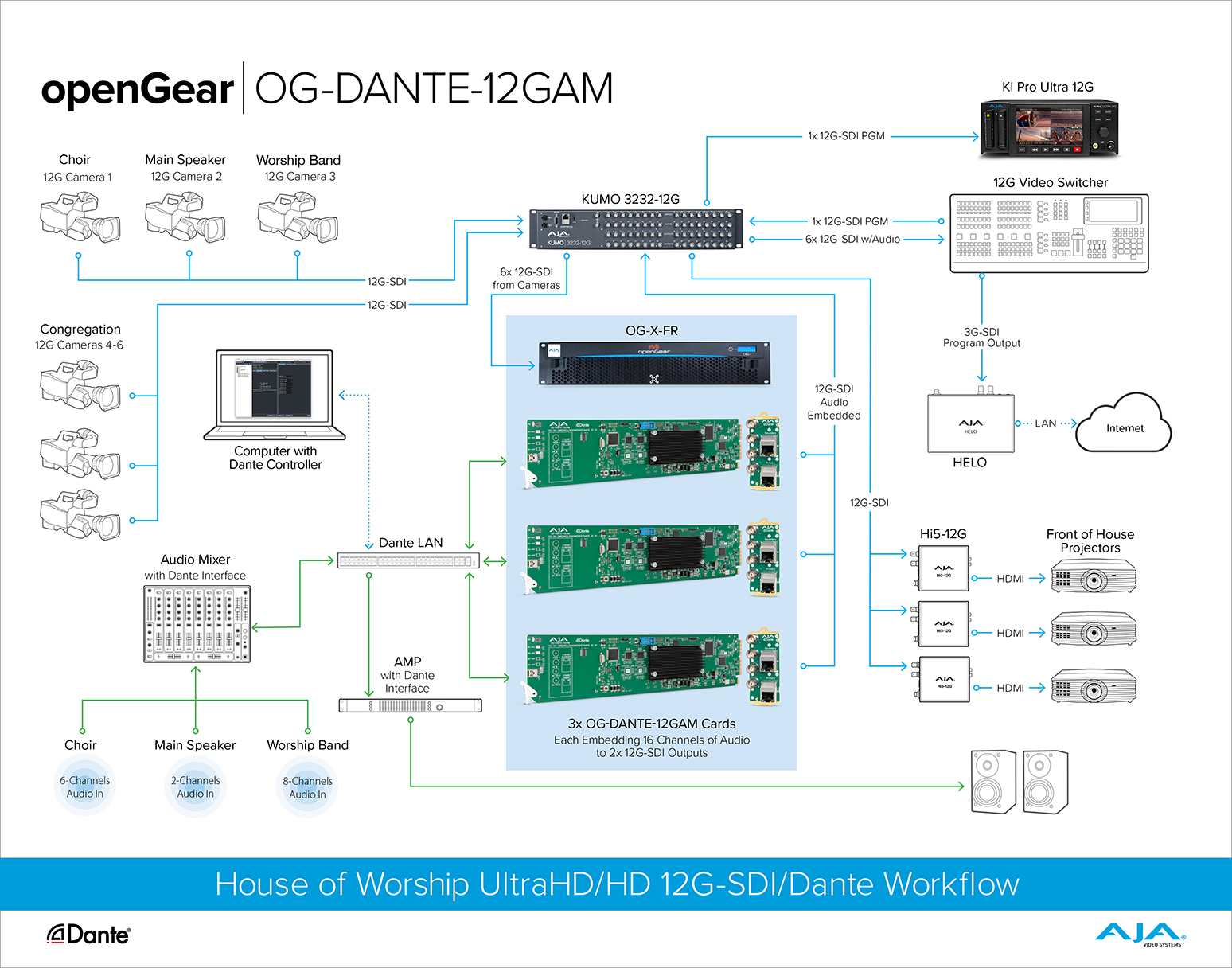

Bridge Between SDI/Dante Sources and Destinations

OG-DANTE-12GAM bridges between SDI sources and destinations with embedded audio to/from the Dante audio ecosystem. It's your SDI/Dante Gateway.

  • OG-DANTE-12GAM provides two 12G-SDI ports for input and two ports for outputs, providing single cable support of 4K/UltraHD/2K/HD/SD video material and up to 16-channels of embedded audio support per SDI connection. This enables 64-channels of SDI/Dante bridging simultaneously.
  • Audio can be bridged, mapped and embedded from Dante sources into each SDI stream or disembedded from SDI and served to Dante destinations using Dante Controller software.

Download Workflow

openGear ROI Window Wall Workflow

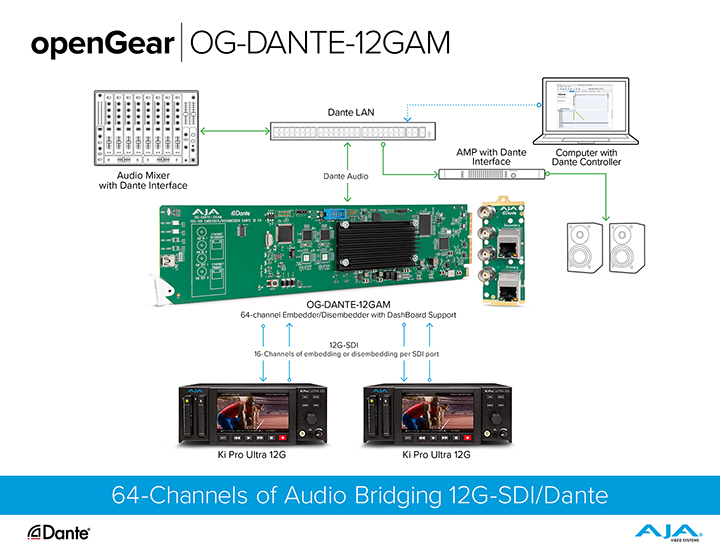

OG-DANTE-12GAM Workflow

OG-DANTE-12GAM is your bridge between embedded SDI audio and Dante sources and destinations. With Dante Controller software, you can route sources and destinations wherever required across 1 GigE networks.

Embed your DAW audio outputs into your video projects for mastering and more. Disembed your SDI program's audio content and deliver across the network to drive mixers, amplifiers and more in live venue contexts.

Download Workflow

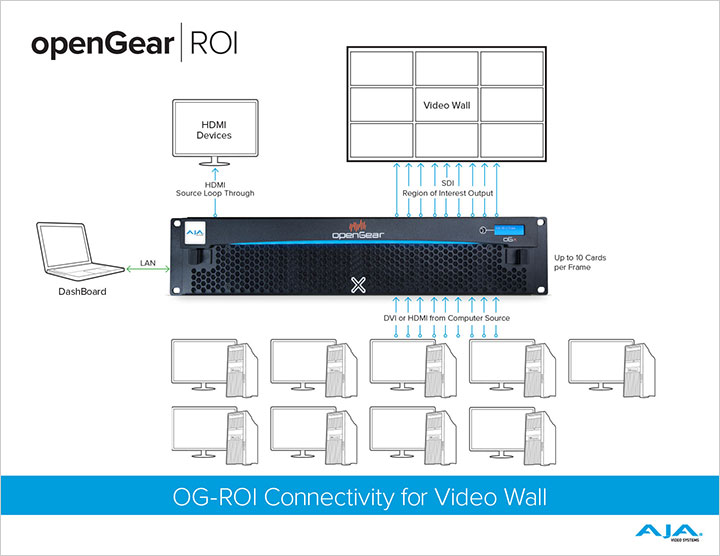

openGear ROI Video Wall Workflow

openGear ROI Video Wall Workflow

It is also possible to expand output options and create a large, synchronized video wall display. The workflow diagram shows 9 x OG-ROI-HDMI utilized in a rackframe to produce a video wall of 9 SDI monitors. Control over each OG-ROI-HDMI is provided via ethernet to the DashBoard. Each computer source is connected to an OG-ROI-HDMI input with the region of interest output via SDI. Simple controls and connectivity for the OG-ROI-HDMI can be used to create sophisticated and complex video wall presentations.

View Workflow

openGear ROI Window Wall Workflow

openGear ROI Window Wall Workflow

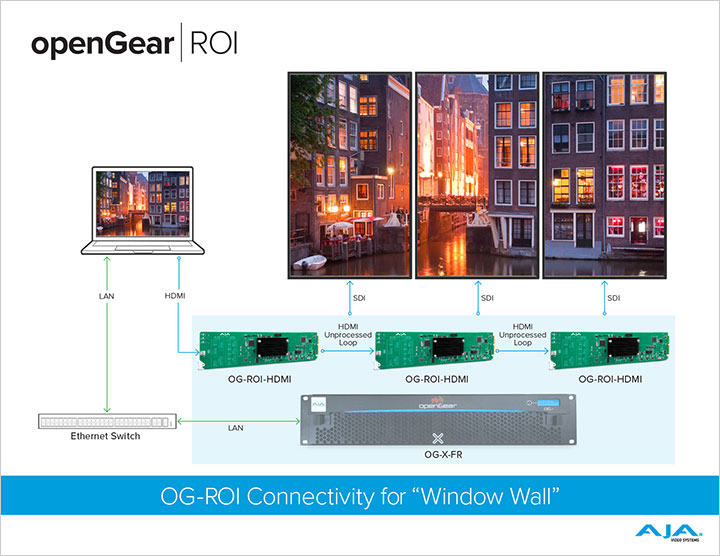

You're able to easily create highly effective and engaging displays by using additional OG-ROI-HDMI openGear converters. By utilizing three OG-ROI-HDMI openGear converters in the appropriate rackframe you can feed three display monitors side by side, each rotated to portrait mode. By using the HDMI pass through of the OG-ROI-HDMI, the HDMI routed image is in sync, with each OG-ROI-HDMI providing the necessary region of interest output via SDI. Settings for each of the OG-ROI-HDMI openGear converters is provided via ethernet control through an ethernet switch. The result is a visually exciting and creative way to feed display content.

View Workflow

AJA Mini-Matrix

AJA Mini-Matrix

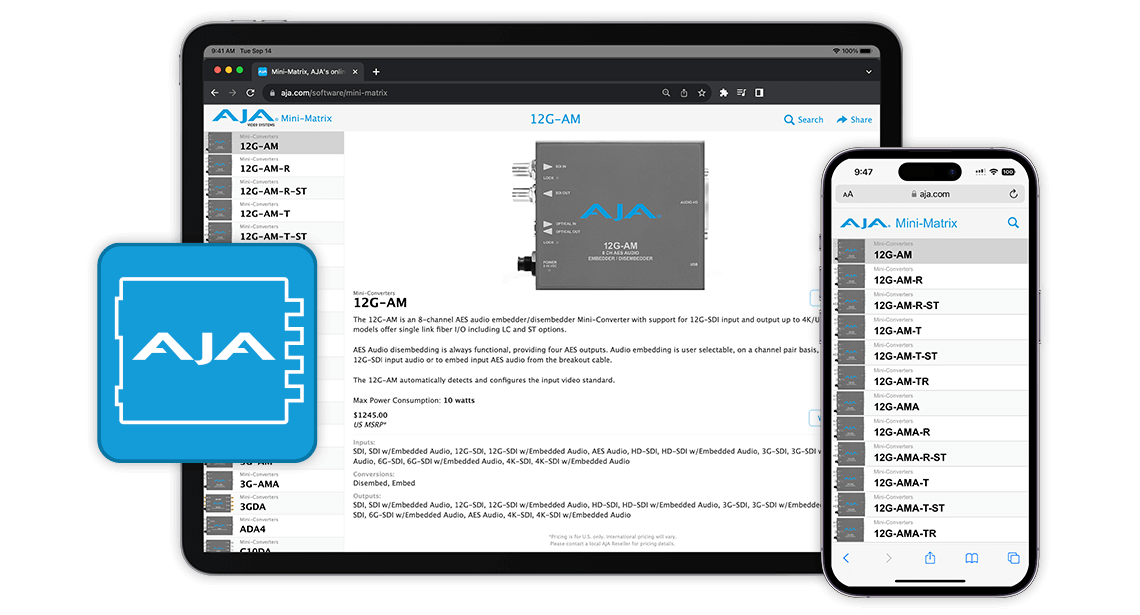

Mini-Matrix offers information on the complete line of AJA openGear converters as a convenient search tool, available online and as an iOS app. The AJA Converter product line is extensive and this app helps you find the right converter for any situation, wherever you are. Please click here to use Mini-Matrix to help find the AJA openGear converter you need.

Launch Browser Version

The free AJA Mini-Matrix app for iPad® and iPhone® is available now in the Apple App Store. Individual products have links back to the main AJA website for more details and you can email product information directly from the app.

Download from the App Store

5 Year Warranty

Industry Leading Support

AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your openGear installation, configuration, operation or encounter any technical issue, AJA Support will work with you to get up and running.

OpenGear products are covered by a generous five year warranty. Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.
