4K/UltraHD 12G-SDI to HDMI 2.0 Converters

$999 US MSRP*

* Pricing is for US only. International pricing will vary.

OG-Hi5-12G

Overview

Tech Specs

Downloads

openGear HDMI

Overview

The OG-Hi5-12G converts 12G-SDI to HDMI 2.0, with pristine image fidelity and HFR support up to 60p for 4K/UltraHD, in the popular openGear form factor. The OG-Hi5-12G provides an easy to deploy monitoring connection from professional 4K 12G-SDI devices to devices with HDMI 2.0 inputs. The OG-Hi5-12G can also generate HDR metadata in accordance with HDMI 2.0 and CTA-861-G.

It features a 12G-SDI single link input with a reclocked SDI loop out for SDI monitoring or pass through for SDI pipelines.

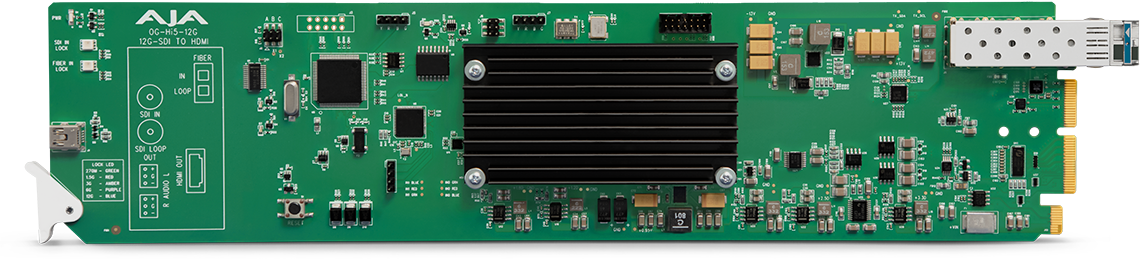

Fiber SFP-equipped OG-Hi5-12G models are available, including the OG-Hi5-12G-R receiver, which can receive 4K signals over long distances from a Fiber connected source, and the OG-Hi5-12G-TR transceiver, which delivers a 4K/UltraHD SDI or Fiber source signal to an HDMI destination with pass through of the source via SDI or Fiber to a secondary destination. The Video Source Auto Switch Over feature (SDI and Optical Inputs) in OG-Hi5-12G-R and OG-Hi5-12G-TR provides automatic input changeover with configurable Switch Over Priority selection (Last Valid Input, Priority SDI, and Priority Optical).



Features

  • Convert 12G-SDI to HDMI 2.0 at up to 4K 60p
  • Support for 4:4:4/4:2:2/4:2:0 HDMI 2.0 output
  • Supports 12-bit workflows
  • HDR signaling metadata pass-through and optional override
  • Embedded audio support 8-channel 24-bit
  • Embedded audio pass-through of AC-3 (Dolby Digital) and E-AC-3 (Dolby Digital Plus) compressed audio, including DD+ Atmos (aka DD+ JOC)
  • 12G-SDI loop out
  • Fiber SFP models available
  • Monitor and control via Ross DashBoard software
  • 13 watts max per card
  • Five year warranty
  • Starting at only $999 US MSRP*

DashBoard Software

Ross DashBoard software offers quick and convenient configuration and control of openGear cards on macOS, Windows, and Linux.

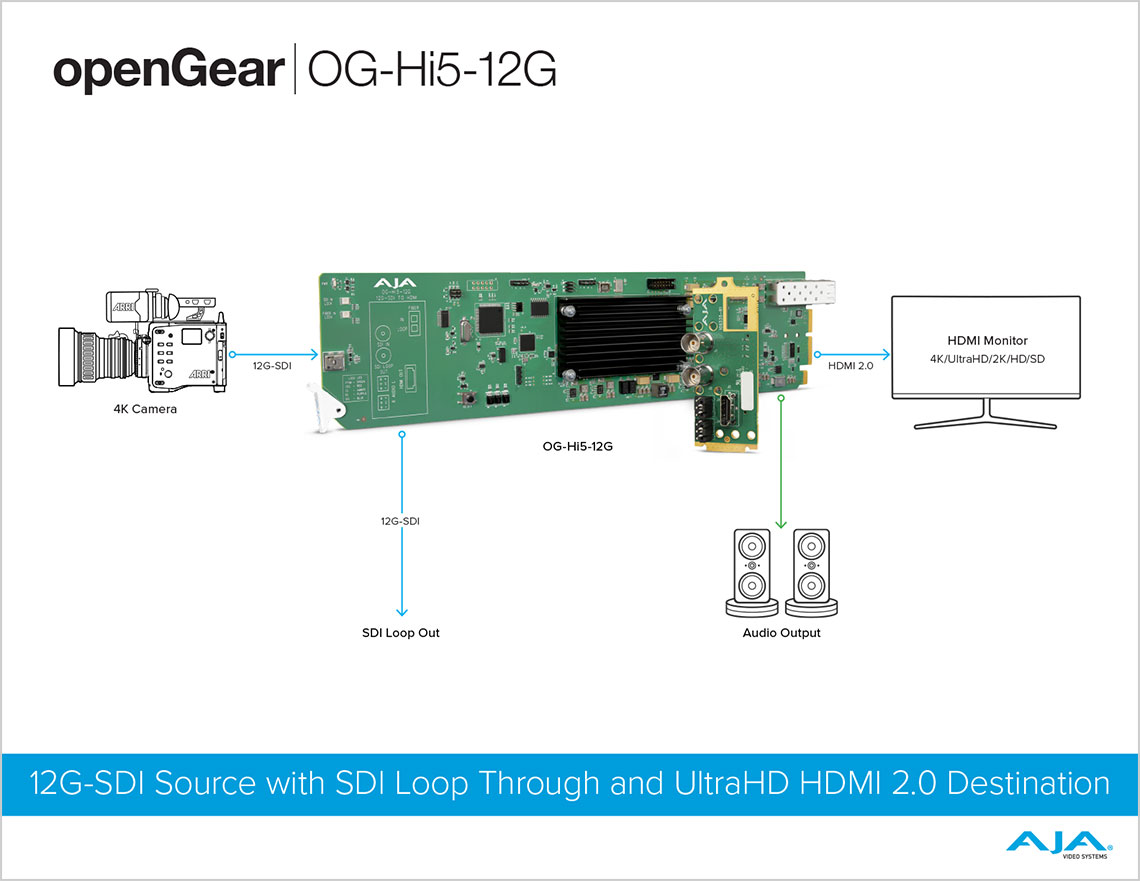

OG-Hi5-12G Workflow

12G-SDI Source with SDI Loop Through and UltraHD HDMI 2.0 Destination

Download Workflow

OG-Hi5-12G-R

12G-SDI to HDMI 2.0 Conversion with LC Fiber Receiver

  • Pristine image fidelity and HFR support up to 60p for 4K/UltraHD 12G-SDI to HDMI 2.0 conversion with a single cable
  • Supports 12-bit workflows
  • Generates HDR10 metadata in accordance with HDMI v2.0b/CTA-861-G and supports HLG over HDMI
  • Provides a monitoring connection from professional 4K devices using 12G-SDI over coaxial or Fiber LC outputs
  • 12G-SDI single link input with a reclocked SDI loop out for SDI monitoring or pass on for SDI pipelines
  • Ships with a Fiber LC single channel SFP receiver for extending 4K signals over long distances
  • Monitor and control via Ross DashBoard software
  • Five year warranty

Only $1,245 US MSRP*

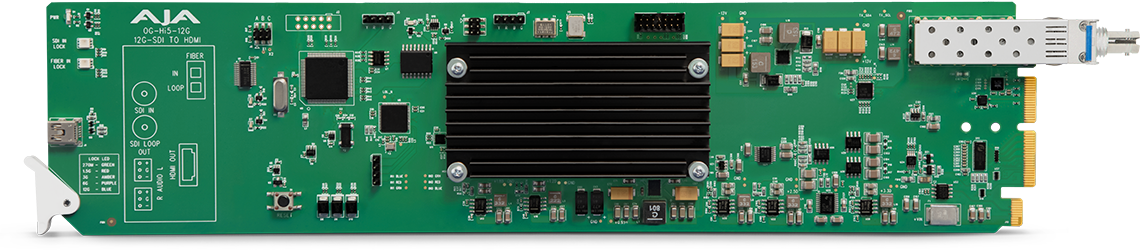

OG-Hi5-12G-R-ST

12G-SDI to HDMI 2.0 Conversion with ST Fiber Receiver

  • Pristine image fidelity and HFR support up to 60p for 4K/UltraHD 12G-SDI to HDMI 2.0 conversion with a single cable
  • Supports 12-bit workflows
  • Generates HDR10 metadata in accordance with HDMI v2.0b/CTA-861-G and supports HLG over HDMI
  • Provides a monitoring connection from professional 4K devices using 12G-SDI over coaxial or Fiber ST outputs to displays with HDMI 2.0 inputs
  • 12G-SDI single link input with a reclocked SDI loop out for simpler SDI confidence monitoring or pass on for SDI pipelines
  • Ships with a Fiber ST single channel SFP receiver for extending 4K signals over long distances
  • Monitor and control via Ross DashBoard software
  • Five year warranty

Only $1,375 US MSRP*

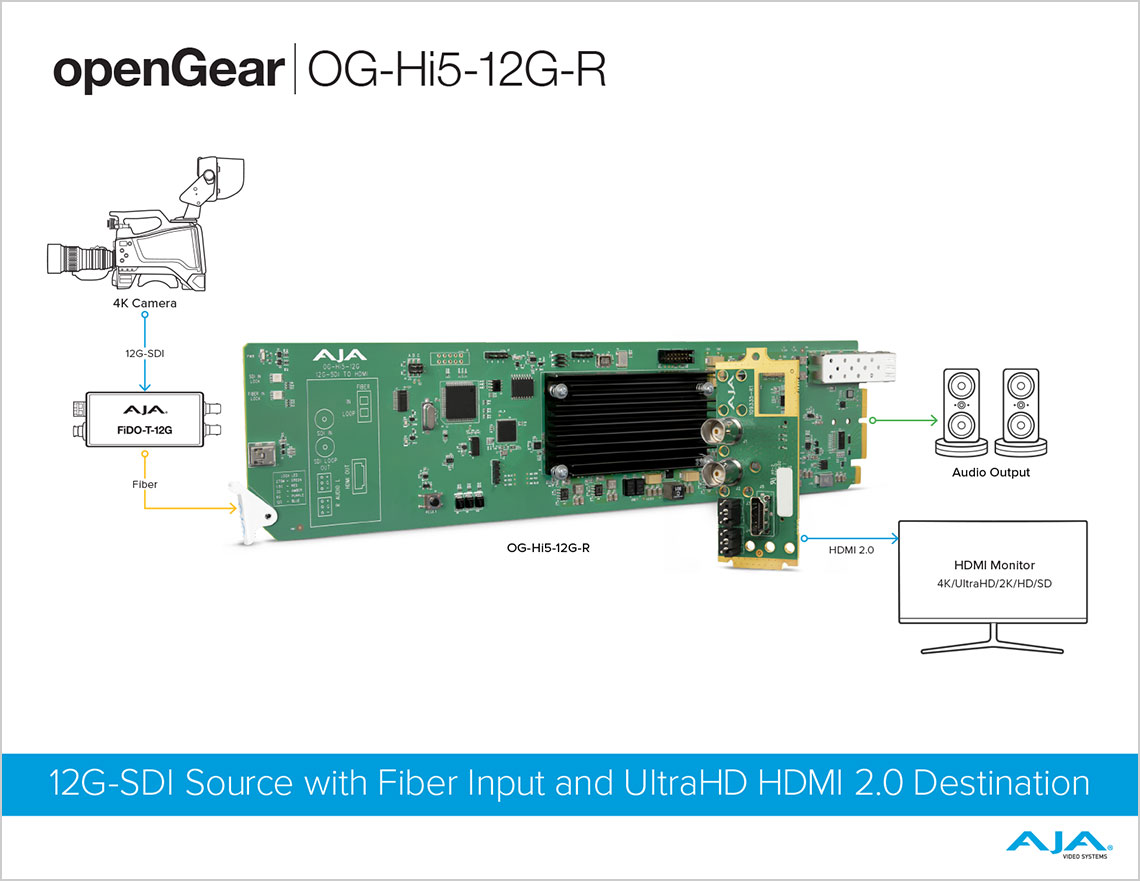

OG-Hi5-12G-R Workflow

12G-SDI Source with Fiber Input and UltraHD HDMI 2.0 Destination

Download Workflow

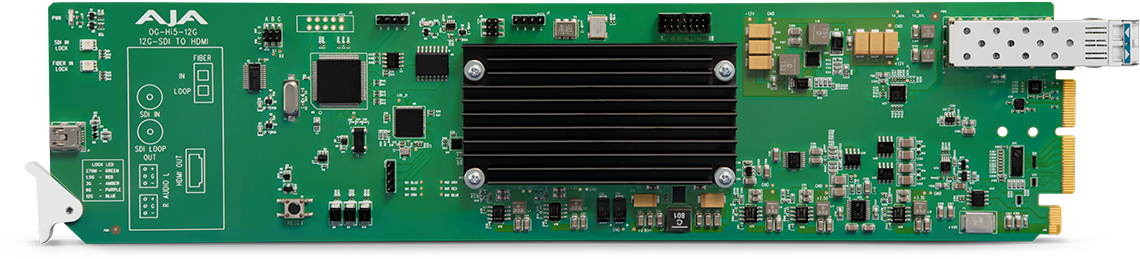

OG-Hi5-12G-TR

12G-SDI to HDMI 2.0 Conversion with LC Fiber Transceiver

  • Pristine image fidelity and HFR support up to 60p for 4K/UltraHD 12G-SDI to HDMI 2.0 conversion with a single cable
  • Supports 12-bit workflows
  • Generates HDR10 metadata in accordance with HDMI v2.0b/CTA-861-G and supports HLG over HDMI
  • Simple monitoring connection from professional 4K devices using 12G-SDI outputs to displays with HDMI 2.0 inputs
  • Features a 12G-SDI single link input with a reclocked SDI loop out and includes a Fiber LC single channel SFP transceiver which delivers a 4K/UltraHD SDI or Fiber source signal to an HDMI destination with pass on of the source through SDI or Fiber to a secondary destination
  • Ships with a Fiber LC single channel SFP transceiver for extending 4K signals over long distances
  • Monitor and control via Ross DashBoard software
  • Five year warranty

Only $1,495 US MSRP*

OG-Hi5-12G-TR Workflow

12G-SDI Source with Fiber Input, UltraHD HDMI 2.0 Destination and Fiber Destinations

Download Workflow

HDR

HDR, or High Dynamic Range, provides the ability to display a wider and richer range of colors, much brighter whites, and much deeper, darker blacks than standard signals allow. This gives your imagery a more ‘dynamic’ look and allows for natural true to life colors to be communicated to your audience.

The OG-Hi5-12G and family provide support for your 4K/UltraHD/HD HDR pipelines to HDMI compatible displays by generating HDR metadata in accordance with HDMI v2.0b/CTA-861-G.  The OG-Hi5-12G also provides support for Hybrid Log Gamma (HLG) HDR displays over HDMI.

Explore more of our HDR Solutions here:

HDR Solutions

4K and UltraHD

Typical 4K signals use a resolution of 4096 x 2160 pixels while UltraHD signals measure 3840 x 2160. This difference can prevent some monitors from being used either in full 4K workflows or in UltraHD workflows. The OG-Hi5-12G can compensate for these resolution differences, allowing UltraHD monitors to be used in 4K productions and vice versa.

OG-Hi5-12G also supports High Frame Rate (HFR) inputs. 4K/UltraHD signals at 50 or 60 fps can be fed into OG-Hi5-12G and output at up to 60p for viewing with appropriate HDMI 2.0 capable displays.

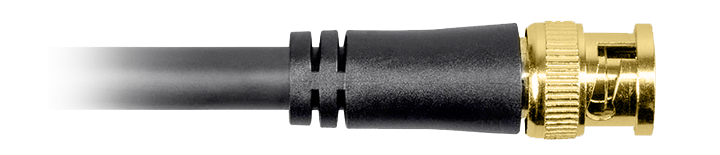

12G-SDI Support

The 12G-SDI input on OG-Hi5-12G allows extremely high quality signal representation through to the HDMI output for use with large raster and deep color workflows where image quality is critical.

12G-SDI Solutions



Audio Integration

Up to 16-channels of embedded SDI audio are supported on input and can be passed to 8-channel of embedded HDMI audio on the output with the ability to delay the audio from 0 to 7 frames for proper synchronization with the output video.

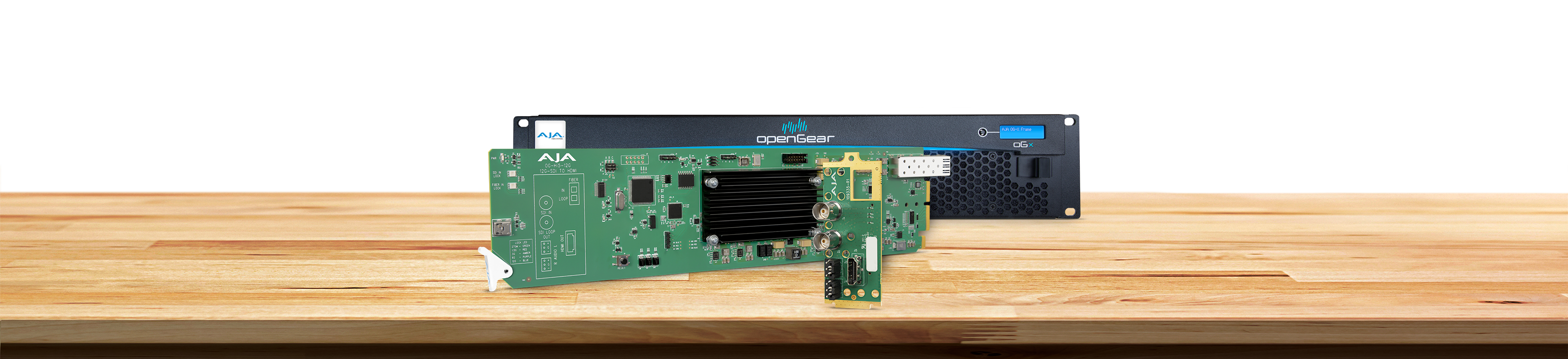

openGear Compatibility

The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.

Flexible I/O

The modular rear panel allows custom I/O connections per card (included with individual cards).

Failsafe

The optional redundant power supply provides a secondary power source in the event of a primary power failure.

Ethernet Access

A standard Ethernet connection allows the frame to be accessed via the Ross Dashboard application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.

More Info

Industry Leading Support

AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your openGear installation, configuration, operation or encounter any technical issue, AJA Support will work with you to get up and running.

openGear products are covered by a generous five year warranty.  Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.

Tech Specs

Print Tech Specs

Video Formats

  • (4K) 4096x2160p
  • (UltraHD) 3840x2160p
  • (2K) 2048x1080p
  • (HD) 1920x1080p
  • (HD) 1920x1080i
  • (HD) 1280x720p
  • (SD) 720x576i
  • (SD) 720x480i



Note: Raster and Frame Rate Dependent, please see OG-Hi5-12G Video Formats in Documents and Manual

Video Input Digital

  • 1x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
  • YCbCr 4:2:2/4:4:4
  • RGB 4:4:4, SMPTE or Full level
  • 8, 10, 12-bit
  • Two Sample Interleave (2SI) 4K/UltraHD source mapping
  • 1x 12 Gb SDI
    • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • 1x 6 Gb SDI
    • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30
  • 1x 3 Gb SDI (Level A or B DL)
    • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080i 50, 59.94, 60
    • (HD) 1280x720p* 50, 59.94, 60
  • 1x 1.5 Gb SDI
    • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30
    • (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080i 50, 59.94, 60
    • (HD) 1280x720p 50, 59.94, 60
  • 1x 270 Mb SDI
    • (SD) 625i 50
    • (SD) 525i 59.94



*1280x720p is Level A Only

Input Signal Selection - OG-Hi5-12G-R and OG-Hi5-12G-TR Only

  •  1x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
  • 1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082
    • Nominal Wavelength: Rx 1260 nm (min), 1620 nm (max)
    • Optical Sensitivity: -10 dBm (min 12 Gbps), -14 dBm (min 3 Gbps)
    • Overload Power: -2 dBm (min)

Input Signal Selection - OG-Hi5-12G-R-ST Only

  • 1x 12G-SDI BNC, SMPTE-259/292/424/2081/2082
  • 1x 12G-SDI Fiber ST connector, SMPTE 297/259/292/424/2081/2082
    • Nominal Wavelength: Rx 1260 nm (min), 1620 nm (max)
    • Optical Sensitivity: -10 dBm (min 12 Gbps), -14 dBm (min 3 Gbps)
    • Overload Power: -2 dBm (min)

Video Output Digital

  • 1x HDMI Type A connector*, HDMI v2.0b
  • HDR infoframe generation with pass-through or override for Colorimetry and Transfer Characteristic
  • YCbCr 4:2:2/4:4:4/4:2:0
  • RGB 4:4:4, SMPTE or Full level
  • 24, 30, or 36-bits Per Pixel  (HFR 4K/UltraHD 4:4:4 limited to 24 BPP)
  • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
  • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920x1080i 50, 59.94, 60
  • (HD) 1280x720p 50, 59.94, 60
  • (SD) 720x576i 50
  • (SD) 720x480i 59.94



*If a connected monitor doesn’t support HDMI protocol, the unit automatically switches to DVI protocol (which does not pass audio)

Video Output Digital - Additional for OG-Hi5-12G-TR Only

  • 1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082
    • Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max)
    • Optical Power: -5 dBm (min), 0.5 dBm (max)
    • Extinction Ratio: 5.4 dB (min)

Audio Pass-Through Formats

  • PCM
  • Dolby Digital (AC-3)
  • Dolby Digital Plus (E-AC-3), including Atmos Immersive Sound (JOC)

Audio Input Digital

  • SDI embedded audio, 24-bit (SD limited to 20-bit), 16-channel

Audio Output Digital

  • HDMI embedded audio, 24-bit, 8-channel

Audio Output Analog

  • 2x 3-pin terminal block connector, 2-channel balanced analog audio +24dBu (nominal)

User Interface

  • openGear DashBoard network control software via Windows, macOS, or Linux

Size

  • openGear standard form factor, front slot, and rear card
  • Two slots required for each card

Weight

  • 0.5 lb (0.3 kg)

Power

  • openGear frame compatible, 13 watts max per card

Environment

  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)*
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
