HA5-12G

HA5-12G

HDMI 2.0 to 12G-SDI Converters

SFP Configurator

$999 US MSRP*

* Pricing is for US only. International pricing will vary.

Overview

AJA’s HA5-12G converts an HDMI 2.0 input to 12G-SDI for 4K/UltraHD single link outputs. HA5-12G includes two 12G-SDI distribution amplifier outputs with 8 or 2-channels of embedded audio from an HDMI source or two-channel analog audio (RCA) input.

HA5-12G also supports Extended Display Identification Data (EDID) emulation, which ensures the connected source continuously supplies custom preferred video formats on output.

HA5-12G-T and HA5-12G-T-ST Fiber SFP-equipped models are single channel transmitters capable of extending HDMI 4K/UltraHD signals over long distances, up to 10km over a single LC or ST Fiber link respectively. These models ship with SFPs installed, and include all functionality of the HA5-12G, with the added benefit of extending audio and video signals further.

Features

  • Convert HDMI 2.0b to 4K/UltraHD 60 fps to 12G-SDI with a second mirrored output
  • Supports up to 60p input at 4:4:4/4:2:2/4:2:0
  • Supports 12-bit workflows
  • EDID LFR & HFR Emulation up to UHDp60
  • Real-timeHDMI HDR Infoframe data reporting
  • HDR signaling metadata pass-through and optional override
  • Simple Frame Rate Conversion (FRC) between Fractional and Integer rates
  • Embedded audio can be selected from the HDMI or Analog audio inputs
  • Embedded audio pass-through of AC-3 (Dolby Digital) and E-AC-3 (Dolby Digital Plus) compressed audio, including DD+ Atmos (aka DD+ JOC)
  • Configure via USB port and supplied AJA Mini-Config software
  • Uses 5-16 VDC power (DWP-U-R1 universal power supply included)
  • Five year warranty

Only $999 US MSRP*

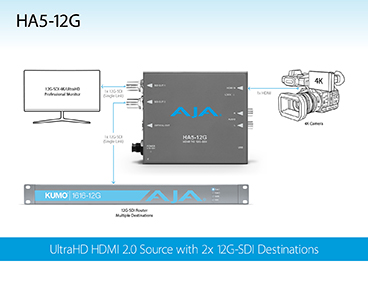

HA5-12G Workflow

UltraHD HDMI 2.0 Source with 2x 12G-SDI Destinations

View Workflow

HA5-12G-T

HA5-12G-T Features:

  • Convert HDMI 2.0b to 4K 60p to 12G-SDI with a second mirrored output
  • Includes a single channel Fiber 12G LC transmitter, which extends 12G-SDI signals over long distances (10 km Single Mode)
  • HA5-12G-T ships with FiberLC-1T-12G  SFP installed
  • Support for up to 60p input at 4:4:4/4:2:2/4:2:0
  • Supports 12-bit workflows
  • EDID LFR & HFR Emulation up to UHDp60
  • Two Sample Interleave (2SI) 4K/UltraHD source mapping
  • Analyzes HDR Infoframe data coming in over HDMI in accordance with HDMI v2.0b/CTA-861-G
  • Simple Frame Rate Conversion (FRC) between Fractional and Integer rates
  • Embedded audio can be selected from the HDMI or Analog audio inputs
  • Embedded audio pass-through of AC-3 (Dolby Digital) and E-AC-3 (Dolby Digital Plus) compressed audio, including DD+ Atmos (aka DD+ JOC)
  • Configure via USB port and supplied AJA Mini-Config software
  • Uses 5-16 VDC power (DWP-U-R1 universal power supply included)
  • Five year warranty

Only $1,245 US MSRP*

HA5-12G-T-ST

HA5-12G-T-ST Features:

  • Convert HDMI 2.0b up to 4K 60p to 12G-SDI with a second mirrored output
  • Includes a single channel Fiber 12G ST transmitter, which extends 12G-SDI signals over long distances (10 km Single Mode)
  • HA5-12G-T-ST ships with FiberST-1T-12G SFP installed
  • Support for up to 60p input at 4:4:4/4:2:2/4:2:0
  • Supports 12-bit workflows
  • EDID LFR & HFR Emulation up to UHDp60
  • Two Sample Interleave (2SI) 4K/UltraHD source mapping
  • Analyzes HDR Infoframe data coming in over HDMI in accordance with HDMI v2.0b/CTA-861-G
  • Simple Frame Rate Conversion (FRC) between Fractional and Integer rates
  • Embedded audio can be selected from the HDMI or Analog audio inputs
  • Embedded audio pass-through of AC-3 (Dolby Digital) and E-AC-3 (Dolby Digital Plus) compressed audio, including DD+ Atmos (aka DD+ JOC)
  • Configure via USB port and supplied AJA Mini-Config software
  • Uses 5-16 VDC power (DWP-U-R1 universal power supply included)
  • Five year warranty

Only $1,375 US MSRP*

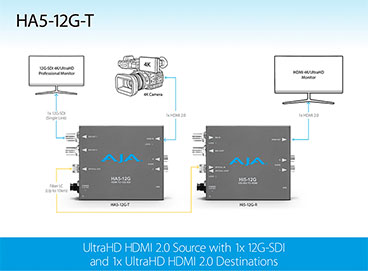

HA5-12G-T Workflow

UltraHD HDMI 2.0 Source with 1x 12G-SDI and 1x UltraHD HDMI 2.0 Destinations

View Workflow

HDR

HDR, or High Dynamic Range, provides the ability to display a wider and richer range of colors, much brighter whites, and much deeper, darker blacks than standard signals allow. This gives your imagery a more ‘dynamic’ look and allows for natural true to life colors to be communicated to your audience.

HA5-12G  provides support for analyzing HDR infoframe data coming in over HDMI when used with AJA Mini-Config software.

Explore more of our HDR Solution here:

HDR Solutions



4K and UltraHD

Typical 4K signals use a resolution of 4096 x 2160 pixels while UltraHD signals measure 3840 x 2160. This difference can prevent some monitors from being used either in full 4K workflows or in UltraHD workflows. HA5-12G can compensate for these resolution differences, allowing UltraHD monitors to be used in 4K productions and vice versa.

HA5-12G also supports High Frame Rate (HFR) inputs. 4K/UltraHD signals at 50 or 60 fps can be fed into HA5-12G and output at up to 60p for viewing with appropriate HDMI 2.0 capable displays.

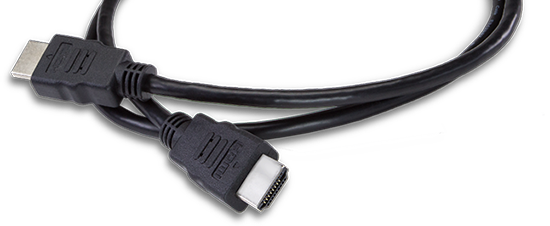

Full HDMI Support

The equalized input on HA5-12G is engineered to support HDMI runs up to 30 meters in length using 24 gauge cable. Embedded HDMI audio support allows for a single cable solution to avoid unnecessary clutter and simplify installation.

12G-SDI Support

The 12G-SDI outputs on HA5-12G allows extremely high quality signal representation for use with large raster and deep color workflows where image quality is critical.

12G-SDI Solutions

Pristine Image Quality

A 12G-SDI output with PLL clock filtering ensures a low jitter output for solid image stability. An LED indicator shows the input source as either SD (green), HD (red) or 4K/UltraHD (orange) for fast and easy signal identification.

Analog audio input

Using the two RCA analog audio inputs, embed any 2-channel analog audio signal into the SDI output to maintain proper audio sync throughout the workflow.

DSLR support

HA5-12G accepts progressive standard definition signals at 525p and 625p for compatibility with DSLR cameras, allowing the signal from those cameras to be easily incorporated into SDI workflows.


USB and Mini-Config Support

AJA’s free Mini-Config software can be used with any USB enabled AJA Mini-Converter and provides an easy to use graphical interface with detailed information about the current input and output formats. Control all the parameters of any supported AJA Mini-Converter as well as loading firmware updates from AJA that add new features and functionality.

Download Mini-Config

Universal Power Supply

All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.

Compact and Portable

AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

AJA Mini-Matrix

Information on the complete line of AJA mini-converters is now available in the Mini-Matrix. AJA products are extensive and this resource helps you find the right converter for any situation, wherever you are.

Individual products have links back to the main AJA website for more details.

Launch Mini-Matrix

Industry Leading Support

AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your Mini-Converter installation, configuration, operation or encounter any technical issue,  AJA Support will work with you to get up and running.

Mini-Converter products are covered by a generous five year warranty. Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.


Tech Specs


Video Formats

  • (4K) 4096x2160p
  • (UltraHD) 3840x2160p
  • (2K) 2048x1080p
  • (HD) 1920x1080p
  • (HD) 1920x1080i
  • (HD) 1280x720p
  • (SD) 720x576p
  • (SD) 720x576i
  • (SD) 720x480p
  • (SD) 720x480i



Note: Raster and Frame Rate Dependent, please see HA5-12G Video Formats in the Download / Documents section of the website product page.


Video Input Digital

  • 1x HDMI Type A connector, HDMI v2.0b
    • HDR Infoframe decoder as defined in CTA-861.3 and HDMI v2.0b
    • HDR VPID generation with pass-through or override for Colorimetry and Transfer Characteristic
    • YCbCr 4:2:2/4:4:4/4:2:0
    • RGB 4:4:4, SMPTE or Full level
    • 24, 30, or 36 Bits Per Pixel (HFR 4K/UltraHD 4:4:4 limited to 24 BPP)
    • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 1920x1080i 50, 59.94, 60
    • (HD) 1280x720p 50, 59.94, 60
    • (SD) 720x576p 50
    • (SD) 720x576i 25
    • (SD) 720x480p 59.94
    • (SD) 720x480i 29.97

HDCP Decryption

  • Not supported. By definition, SDI outputs are unencrypted.

Video Output Digital

  • 1x 12G-SDI BNC, SMPTE 259/292/424/2081/2082
    • YCbCr 4:2:2/4:4:4
    • RGB 4:4:4, SMPTE or Full level
    • 10-bit, 12-bit*
  • 1x 12G-SDI
    • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (4K) 4096x2160PsF 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30,50, 59.94, 60
    • (Ultra HD) 3840x2160PsF 23.98, 24, 25, 29.97, 30
  • 1x 6 Gb SDI
    • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30
    • (4K) 4096x2160PsF 23.98, 24, 25, 29.97, 30
    • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30
    • (Ultra HD) 3840x2160PsF 23.98, 24, 25, 29.97, 30
  • 1x 3 Gb SDI (Level A or Level B Dual Link)
    • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 47.95, 48, 50, 59.94, 60
    • (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
    • (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080i 50, 59.94, 60
    • (HD) 1280x720p** 50, 59.94, 60
  • 1x 1.5 Gb SDI
    • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30
    • (2K) 2048x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080PsF 23.98, 24, 25, 29.97, 30
    • (HD) 1920x1080i 50, 59.94, 60
    • (HD) 1280x720p 50, 59.94, 60
  • 1x 270 Mb SDI
    • (SD) 625i 50
    • (SD) 525i 59.94



*Some 12-bit formats not supported, please see HA5-12G Video Formats in the Documents tab and the Manuals.
**1280x720p is Level A Only


Video Output Digital - Additional for HA5-12G-T Only

  • 1x 12G-SDI Fiber LC connector, SMPTE 297/259/292/424/2081/2082
    • Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max)
    • Optical Power: -5 dBm (min), 0.5 dBm (max)
    • Extinction Ratio: 3.5 dB (min)

Video Output Digital - Additional for HA5-12G-T-ST Only

  • 1x 12G-SDI Fiber ST connector, SMPTE 297/259/292/424/2081/2082
    • Nominal Wavelength: Tx 1260 nm (min), 1310 nm (typ), 1360 nm (max)
    • Optical Power: -5 dBm (min), 2 dBm (max)
    • Extinction Ratio: 3.5 dB (min)

Audio Pass-Through Formats

  • PCM
  • Dolby Digital (AC-3)
  • Dolby Digital Plus (E-AC-3), including Atmos Immersive Sound (JOC)

Audio Input Digital

  • HDMI embedded audio, 24-bit, 8-channel




Audio Input Analog

  • 2x RCA style connector, 2-channel -10dBu (nominal)




Audio Output Digital

  • SDI embedded audio, 24-bit (SD limited to 20-bit), 16-channel

User Interface

  • USB port used with supplied cable and Mini-Config software application to configure and view device status via Mac or Windows

Size (w x d x h)

  • 4.6" x 4.02" x 0.9" (116.84 x 102.11 x 22.86 mm)

Weight

  • 0.5 lb (0.3 kg)

Power

  • 5-16VDC regulated, 11 watts, power supply required included with purchase
  • AC Adapter: 100-240VAC, 50/60 Hz, universal input

Environment

  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)



*HA5-12G, HA5-12G-T, and HA5-12G-T-ST each use approximately 12 watts of power and convection cooling. It will be warm to the touch, which is normal. When installing the unit, mount in a location where it has access to air for proper cooling. Do not stack the HA5-12G converters with other Mini-Converters.
