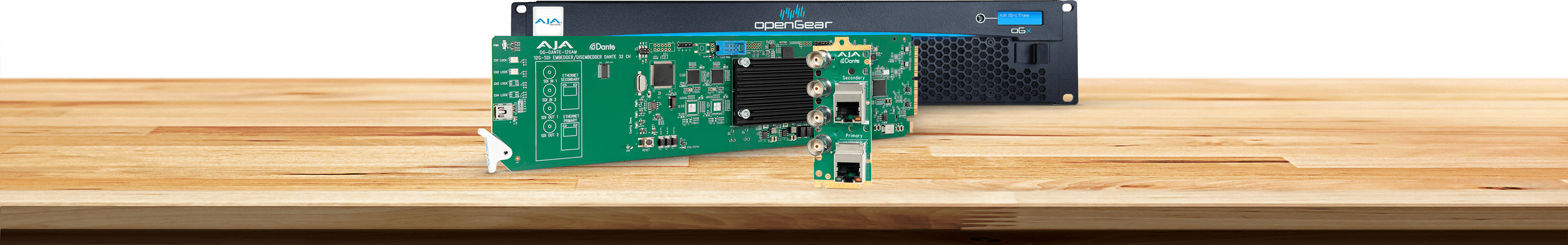

openGear 12G-SDI/DANTE 64-Channel Embedder/Disembedder

$2969 US MSRP*

* Pricing is for US only. International pricing will vary.

Overview



OG-DANTE-12GAM is an openGear, Dante audio embedder/disembedder, with dual 12G-SDI input and output ports providing up to 32-channels of audio embedding and 32-channels of disembedding simultaneously. OG-DANTE-12GAM provides the bridge between SDI and Dante infrastructures.

Dante audio networking provides digital audio distribution over local and wide-area networks with low latency, using standard network hardware or by connecting into a standard network infrastructure. This offers many advantages over analog, AES, and MADI infrastructures, including audio system scalability, easier installation, and simplified wiring.

A fully populated OG-X-FR openGear frame with ten OG-DANTE-12GAM cards provides an incredible 640-channels of audio bridging in a rack-mountable form factor for a wide range of needs.

Features

  • Support for 12G/6G/3G-SDI audio embedding to and from the Dante audio ecosystem
  • Dual, and independent 12G-SDI Input and Output ports, each supporting 16 audio channels, totaling 64-channels per card in a compact design
  • 1x Primary and 1x Secondary GigE ports for Dante network redundancy
  • 64-channels of simultaneous SDI/Dante audio bridging per card
  • 2x Internal Signal Generators which enables transmitting Dante audio channels over SDI without having an external SDI source signal

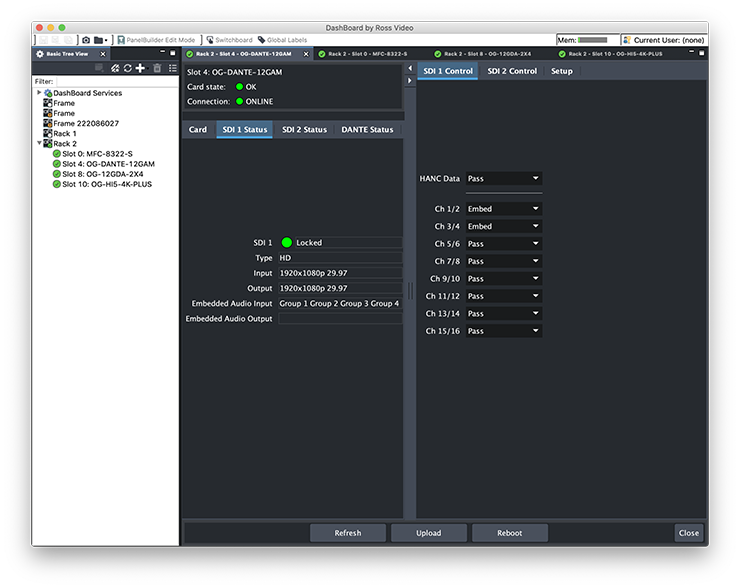

  • DashBoard support for remote signal status and configuration
  • Compatible with a range of Dante software from Audinate including Dante Controller for routing and configuration choices
  • High density and small form factor, enabling 10 cards to be utilized in a single openGear frame for up to 640-channels of SDI/Dante audio bridging
  • Supported within OG-X-FR and OG-3-FR openGear frames
  • Hot swap capable
  • Five year warranty

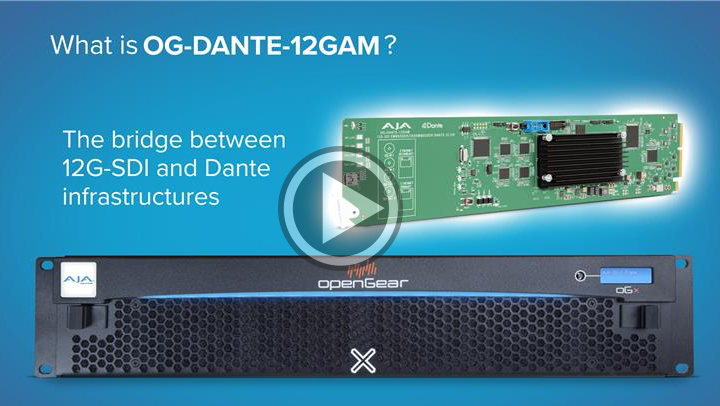

OG-DANTE-12GAM Overview Video

OG-DANTE-12GAM provides the bridge between SDI and Dante ecosystems.

Watch this video for an introduction on the many benefits and advantages Dante audio over IP offers for embedding and disembedding to and from professional SDI workflows.

Watch Video

Dante: The Audio Networking Standard for the Pro AV Industry

Dante audio networking provides digital audio distribution over local and wide area networking with low latency (<1 ms), using standard network hardware or by connecting into a standard network infrastructure. This offers many advantages, including audio system scalability, easier installation, and simplified wiring.

Dante also allows uncompressed, multi-channel, low latency high-resolution digital audio to be distributed across a switched Ethernet network using standard TCP/IP protocols while meeting the stringent quality requirements of professional audio.

Dante audio is the primary choice for ProAV system integrators and a growing number of broadcasters and is widely adopted by 450 manufacturers offering 2500+ Dante device types.

  • Current solutions require many devices, or a very high price to accomplish this bridging. DANTE reduces the amount of gear required to perform this bridging function.
  • DANTE audio provides a redundant infrastructure with two networks, a primary and secondary 1 GigE ports, which provide users with a robust system of audio transport.
  • DANTE audio solutions also provides a synchronization solution that is not met by other solutions for audio over IP.

Bridge Between SDI/Dante Sources and Destinations

OG-DANTE-12GAM bridges between SDI sources and destinations with embedded audio to/from the Dante audio ecosystem.  It's your SDI/Dante Gateway.

  • OG-DANTE-12GAM provides two 12G-SDI ports for input and two ports for outputs, providing single cable support of 4K/UltraHD/2K/HD/SD video material and up to 16-channels of embedded audio support per SDI connection. This enables 64-channels of SDI/Dante bridging simultaneously.
  • Audio can be bridged, mapped and embedded from Dante sources into each SDI stream or disembedded from SDI and served to Dante destinations using Dante Controller software.
  • Redundancy across the Primary and Secondary 1 GigE Ethernet connections in OG-DANTE-12GAM for Dante audio, provides security and peace of mind.
  • The openGear format offers high density with up to 10 cards within each openGear frame.
    • This all adds up to 640-channels of audio bridging between SDI and Dante audio in a single rack frame, ideal for flykits, OB vans and facilities.
  • The openGear OG-X-FR frame itself supports redundant power supplies, critical for live environments and constant up time.

Download Workflow

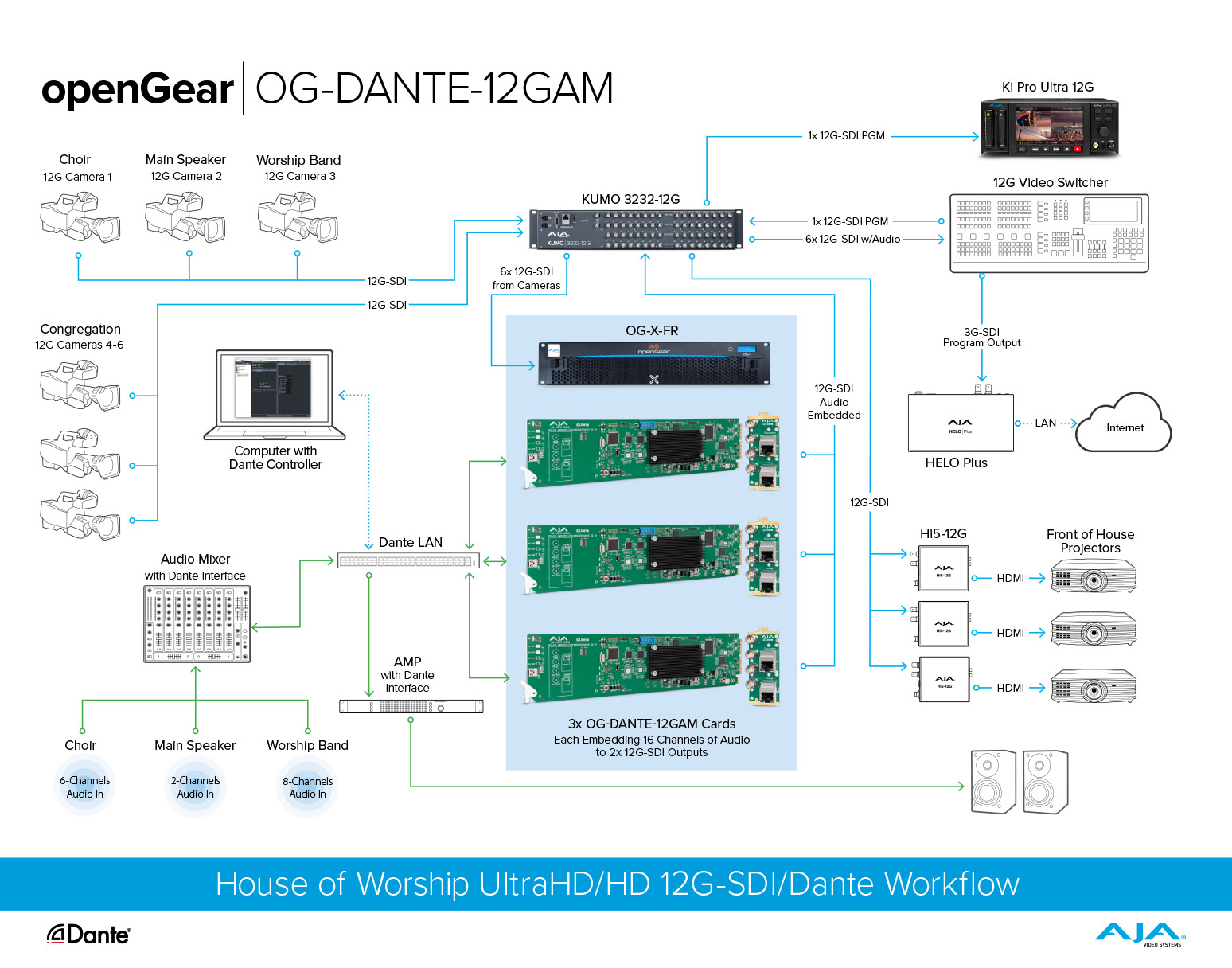

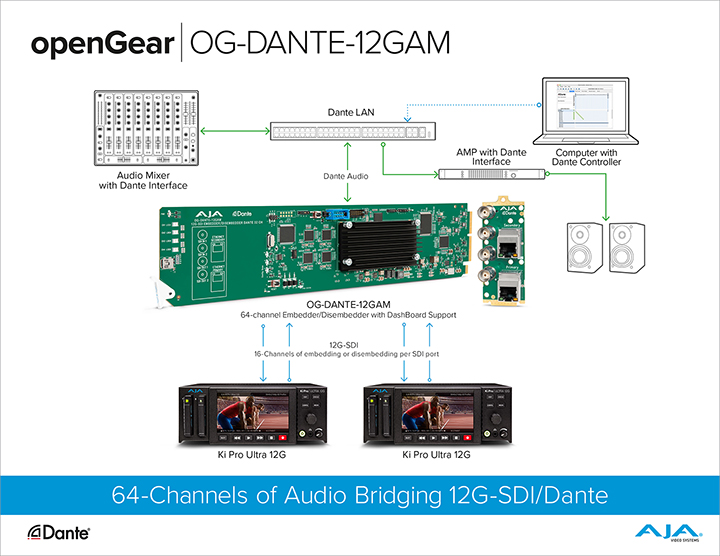

OG-DANTE-12GAM Workflow

OG-DANTE-12GAM is your bridge between embedded SDI audio and Dante sources and destinations. With Dante Controller software, you can route sources and destinations wherever required across 1 GigE networks.

Embed your DAW audio outputs into your video projects for mastering and more. Disembed your SDI program's audio content and deliver across the network to drive mixers, amplifiers and more in live venue contexts.

Download Workflow

Dante Controller

Use Dante Controller to set up the audio routing between Dante devices and when necessary, to update your softwarre. Dante Controller shows the OG-DANTE-12GAM openGear card as 32 routable audio sources and 32 routable audio destinations.

Use this application to set up the audio routing between Dante devices, control the audio connections in the Dante setup, and move audio in real-time over an ethernet network.

Learn More

Dante Domain Manager

Use Dante Domain Manager to manage the Dante network. It supports setting up authentication, security, and other similar attributes for management of various network architectures.

Learn More


Dante Via

Use Dante Via to configure audio devices to appear on the Dante network; for example, making the stereo audio portion of AJA's U-TAP appear as two audio source channels on the Dante network.

Learn More

Dante Virtual Soundcard

Dante Virtual Soundcard emulates a physical PC or Mac soundcard, but instead of connecting to actual physical audio devices like a mic, it connects to the Dante network. It can receive audio signals from the Dante network including OG-DANTE-12GAM and present them to your DAW app just like a normal physical soundcard would.

Learn More


Connectivity

The OG-DANTE-12GAM provides two 12G-SDI inputs and two 12G-SDI outputs alongside Gigabit Primary and Secondary Ethernet ports. OG-DANTE-12GAM automatically detects and configures to the SDI input video standard. Simple user controls in Dashboard and Dante Controller allow channel enabling and mapping to and from SDI and DANTE.

openGear Compatibility

The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.

Flexible I/O

The modular rear panel allows custom I/O connections per card (included with individual cards).

Failsafe

The optional redundant power supply provides a secondary power source in the event of a primary power failure.

Ethernet Access

A standard Ethernet connection allows the frame to be accessed via the Ross Dashboard application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.

More Info

DashBoard Software

DashBoard software offers quick and convenient configuration and control of openGear cards on macOS, Windows, and Linux.

Related Stories

AJA Solutions Help the Basel Academy of Art and Design FHNW Modernize AV Workflows

February 13, 2024

AJA Solutions Help the Basel Academy of Art and Design FHNW Modernize AV Workflows

The Basel Academy of Art and Design FHNW comprises nine schools, with each school containing various institutes with a specific study focus. [Read the full story]

AJA Mini-Matrix

Information on the complete line of AJA openGear frames and cards is now available in the Mini-Matrix. AJA products are extensive and this resource helps you find the right converter for any situation, wherever you are.

Individual products have links back to the main AJA website for more details.

Launch Mini-Matrix

Industry Leading Support

AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your openGear installation, configuration, operation or encounter any technical issue, AJA Support will work with you to get up and running.

openGear products are covered by a generous five year warranty.  Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.


Tech Specs


Video Formats

  • (4K) 4096x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (UltraHD) 3840x2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (2K) 2048x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920x1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1920x1080i 50, 59.94, 60
  • (HD) 1280x720p 50, 59.94, 60*
  • (SD) 625i 50
  • (SD) 525i 59.94
  • RGB and YCbCr, 4:4:4/4:2:2, 10-bit



Note: Raster and frame rate dependent, please see OG-Dante-12GAM Video Formats in Documents and Manual.


Video Input Digital

  • 2-channel independent 12G-SDI BNC connectors, SMPTE 259/292/424/2081/2082
    • Single Link SD/HD/2K/UltraHD/4K

Video Output Digital

  • 2-channel independent 12G-SDI BNC connectors, SMPTE 259/292/424/2081/2082
    • Single Link SD/HD/2K/UltraHD/4K

Internal Signal Generator

  • 2x independent internal signal generators

Cable Equalization

(Belden 1694A coax)

  • 12 Gbps, 65m
  • 6 Gbps, 120m
  • 3 Gbps, 180m
  • 1.5 Gbps, 200m
  • 270 Mbps, 405m

Video Path Delay

Video Out is a delayed, reclocked version of Video In, at the same format and frame rate. Video Out is undefined when no input.

  • Video Latency, time measured between video input and video output connector:
    • 12G = 3.2 µsec
    • 6G = 3.2 µsec
    • 3G level B-DL = 6.3 µsec
    • 3G level A = 3.2 µsec
    • HD (1.5 Gb) = 6.3 µsec
    • SD (270 Mb) = 17.2 µsec

Audio Input Digital

  • SDI: Two independent 12G-SDI BNC connectors, 16 embedded channels each
  • Dante: 1x Primary Ethernet port and 1x Secondary Ethernet port, 32-channels

Audio Output Digital

  • SDI: Two  independent 12G-SDI BNC connectors, 16 embedded channels each
  • Dante: 1x Primary and 1x Secondary Gigabit Ethernet ports, 32-channels

SDI Embedded Audio

  • SMPTE 299M (12G/6G/3G/1.5G): 24-bit, 48 kHz synchronous
  • SMPTE 272M (SD): 20-bit, 48 kHz synchronous
  • Incoming embedded audio can be passed, removed, or overridden
  • 4 groups (16-channels) of audio supported per SDI path


Note: 2048x1080p/PsF 29.97 and 30 formats support a maximum of 8-channels embedded audio.


Dante Audio

  • Sample Rates: 44.1kHz, 48kHz, 88.2kHz, 96kHz
  • Encoding: PCM 16, PCM 24, PCM 32

Audio Latency

  • Embed Path     1500 µsec
  • Disembed Path  1410 µsec

User Interface

  • openGear DashBoard network control software via Windows, macOS or Linux
  • Dante Controller

Size

  • openGear standard form factor, front slot and rear card. Two slots required for each card.

Weight

  • 0.5 lb (0.3 kg)

Power

  • openGear frame compatible, 15 watts max per card

Environment

  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
