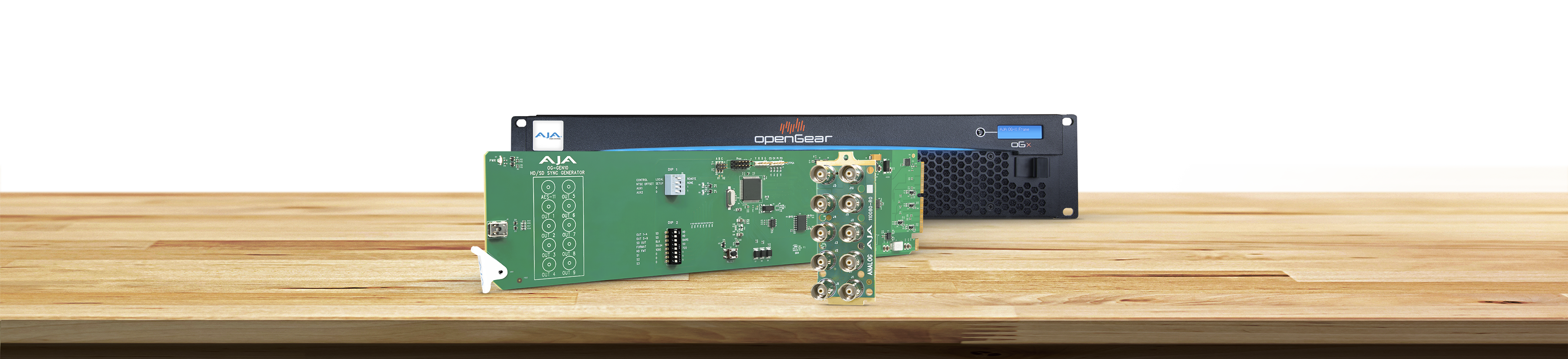

openGear HD/SD and AES-11 Sync Generator

$795 US MSRP*

* Plus any applicable tariffs. Pricing is for US only. International pricing will vary.

Overview

The OG-GEN10 is a cost effective and flexible SD/HD/AES-11 sync generator. The OG-GEN10 features 10 total outputs comprised of 2 groups of independently controlled SD/HD sync outputs and 1 AES-11 output. The SD outputs can be switched between Color Black or Color Bars. HD tri-level sync can be switched between 19 different HD formats including all that are in use today. The AES-11 output can be switched between Silence and Tone. All outputs are in sync with each other and are sourced from an accurate master time base.

Features

  • HD Tri-level sync generation
  • SD Color Black or Color Bars
  • 9x synchronized reference outputs
    • Group 1 (1-4)
    • Group 2 (5-9)
  • Two groups of independently switchable outputs allow simultaneous HD and SD sync generation
  • AES-11 output switchable between silence and tone
  • Multiple outputs can synchronize entire systems without requiring a Sync DA
  • External dip switch configuration
  • Remote control via the Ross DashBoard software
  • Optional Redundant power via the openGear frame
  • Hot swappable
  • Compatible with OG-X-FR, OG-3-FR, and DFR-8321 openGear frames
  • Power: 6.75 watts max per card
  • Five-year warranty

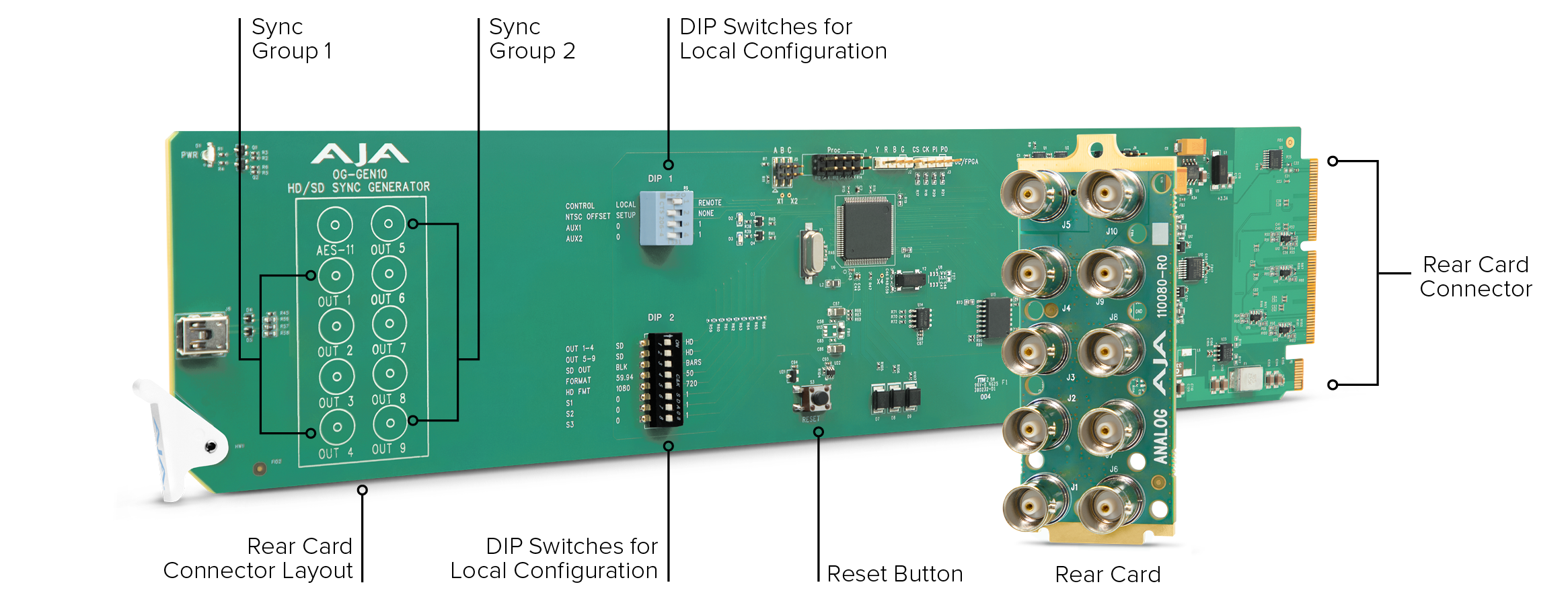

Connections

openGear Frame Reference Workflow

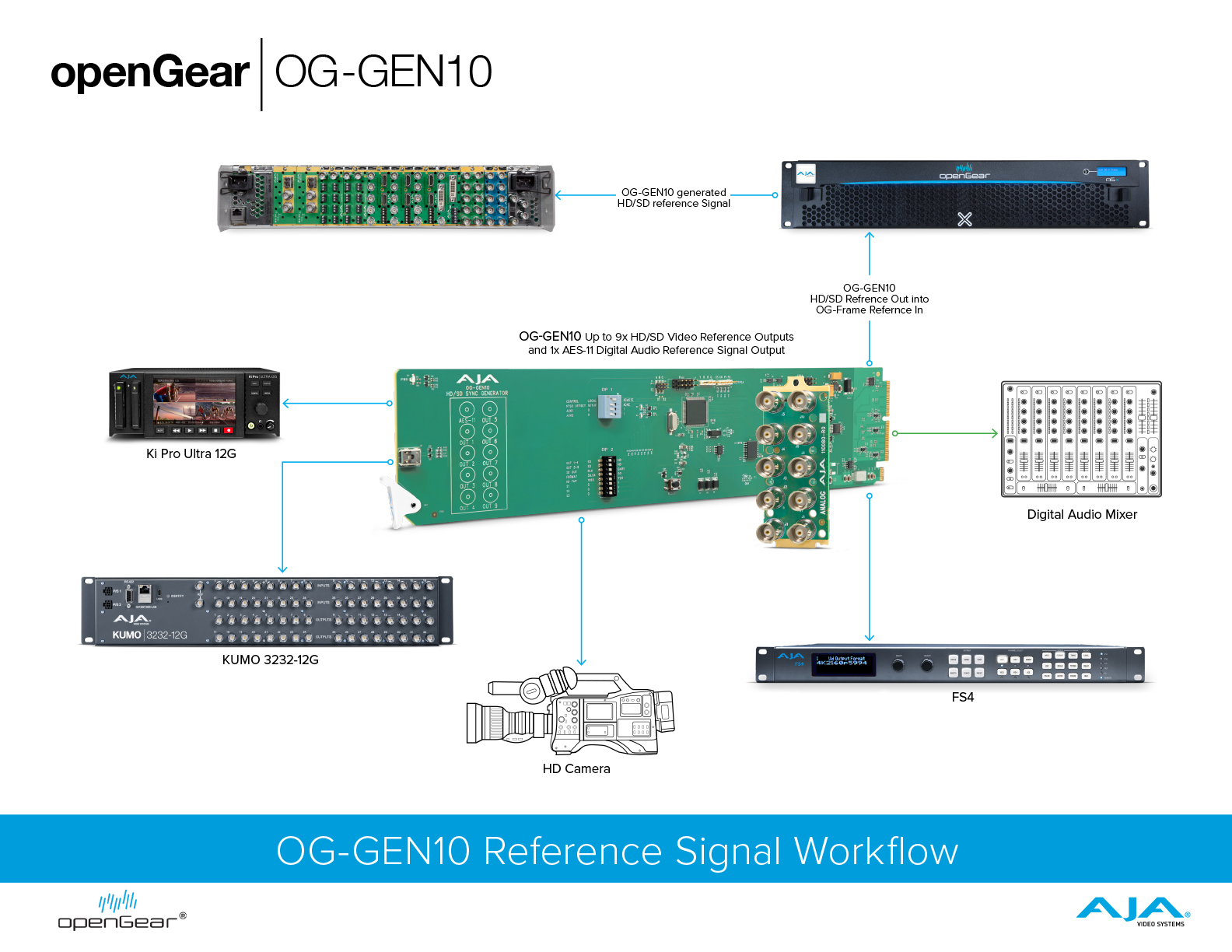

This workflow depicts the OG-GEN10 at the heart of multifaceted workflows, supplying both HD video sync and AES-11 digital audio sync to several professional devices, including the OG-FR-X openGear frame itself.



Download Workflow

DashBoard Software

Ross DashBoard software offers quick and convenient configuration of openGear cards on macOS, Windows, and Linux.

openGear Compatibility

The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the standard for professional rackframe solutions.

Flexible I/O

The modular rear panel allows custom I/O connections per card (included with individual cards).

Failsafe

The optional redundant power supply provides a secondary power source in the event of a primary power failure.

Ethernet Access

A standard Ethernet connection allows the frame to be accessed via the Ross DashBoard software application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.

More Info

AJA Mini-Matrix

Information on the complete line of AJA openGear frames and cards is now available in the Mini-Matrix. AJA products are extensive, and this resource helps you find the right converter for any situation, wherever you are. Individual products have links back to the main AJA website for more details.

Launch Mini-Matrix

Industry Leading Support

AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your openGear installation, configuration, operation, or encounter any technical issues, AJA Support will work with you to get up and running.

openGear products are covered by a generous five year warranty.  Please see the individual Product Manual for additional specifics regarding warranty conditions for the product itself.

Related Products

GEN10

HD/SD Sync Generator

Visit Page

OG-C10DA

Analog Video 1x9 Distribution Amplifier

Visit Page

Tech Specs


Formats

• 1080i 50, 59.94, 60
• 1080PsF 23.98, 24, 25, 29.97, 30
• 1080p 23.98, 24, 25, 29.97, 30
• 720p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• 625i, 525i


HD Sync

• Tri-level


SD Sync

• Color Black, 75% Color Bars


AES

• AES-11, 48 kHz, silent or 1 KHz tone (-20 or -18 dBFS)


Output

• 9x BNC, Analog SD/HD Sync
• 1x BNC, AES-11


Accuracy

• 3 ppm




User Interface

• openGear DashBoard network control software via Windows, macOS, or Linux
• Local/Remote Control
• External dipswitch


Size (w x d x h)

• openGear standard form factor, front slot and rear card
• Two slots required for each card


Weight

• 0.5 lb (0.3 kg)


Power

• openGear frame compatible, 6.75 watts max per card




Environment

• Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
• Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
