OG-FiDO-R-12G-ST

OG-FiDO-R-12G-ST

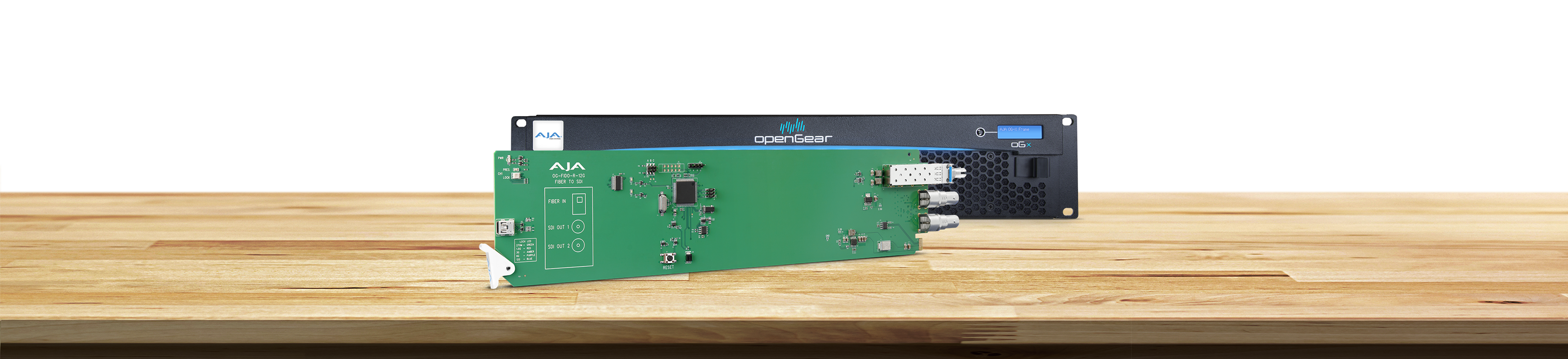

openGear 1-Channel Single Mode ST Fiber to 12G-SDI Receiver

$1135 US MSRP*

* Pricing is for US only. International pricing will vary.

Overview

The OG-FiDO-R-12G-ST is a state of the art, openGear compatible Fiber to 12G-SDI converter, enabling 12G-SDI signals to be extended up to 10 km (32,808 ft) over standard single mode fiber optic cable. The fiber input is reclocked with best in class input jitter tolerance. The OG-FiDO-R-12G-ST offers a locking ST barrel connector for secure connectivity, advantageous in many live event, production and mobile environments.

AJA openGear OG-FiDO products are designed for use in high density openGear 2RU frames including AJA’s OG-X-FR frame, with industry standard DashBoard software support on Windows®, macOS® and Linux®, offering remote control and monitoring over a PC or local network.



Features

  • Video Formats: 270 Mbps - 12 Gbps, format agnostic
  • Inputs: 1x Single-Mode ST Fiber Connectors
  • Outputs: 1x 12G-SDI BNC with SDI Loop out
  • Support for HDR - High Dynamic Range video
  • Input Present and Input SMPTE Lock LEDs
  • Automatic detection and reclocking
  • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
  • Nominal Wavelength; Rx :1260-1620 nm
  • Hot-swappable
  • Remote Ethernet Monitor through Ross DashBoard software
  • Appropriate Fiber SFP included
  • Rear I/O card included
  • Power: 3 watts Max
  • Compatible with OG-X-FR, OG-3-FR, and DFR-8321 openGear frames
  • Five year warranty

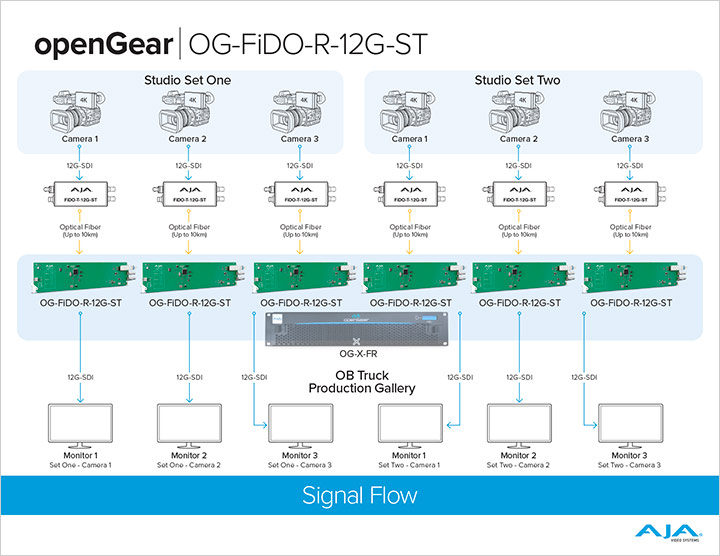

Example OG-FiDO-R-12G-ST Signal Flow Diagram

This diagram shows six openGear OG-FiDO-R-12G-ST cards being used in a OG-X-FR rack frame situated close to the Production Gallery, highlighting the high density capability of the openGear platform. These six openGear OG-FiDO-R-12G-ST cards are connected via fiber lines to two studio sets, both of which could be up to 10km away from the Production Gallery. The studio sets each contain three 12G-SDI cameras connected to three FiDO-T-12G-ST Mini-Converters, which provide the 12G-SDI to fiber ST conversion. The Production Gallery receives 6 discrete camera feeds as 12G-SDI, via the OG-FiDO-R-12G-ST, driving the gallery video monitors with ultra low latency.

Download Workflow

Connectivity

Both Fiber and 12G-SDI inputs are reclocked with best in class input jitter tolerance. 12G-SDI input and output support, which includes 6G/3G/HD/SD-SDI. Both signal paths are independent and can be different rates. Supports single mode fiber cable.

openGear Compatibility

The openGear standard ensures that AJA cards will be compatible with other openGear products from certified openGear partners. With a growing list of products, openGear is the future of rackframe products.

Flexible I/O

The modular rear panel allows custom I/O connections per card (included with individual cards).

Failsafe

The optional redundant power supply provides a secondary power source in the event of a primary power failure.

Ethernet Access

A standard Ethernet connection allows the frame to be accessed via the Ross Dashboard application for overall frame communication. Optional per-card Ethernet access can be installed in the frame for advanced communication with compatible openGear cards.

More Info

DashBoard Software

Ross DashBoard software offers quick and convenient configuration and control of openGear cards on macOS, Windows, and Linux.

AJA Mini-Matrix

Information on the complete line of AJA openGear frames and cards is now available in the Mini-Matrix. AJA products are extensive and this resource helps you find the right converter for any situation, wherever you are.

Individual products have links back to the main AJA website for more details.

Launch Mini-Matrix

Industry Leading Support

AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your openGear installation, configuration, operation or encounter any technical issue, AJA Support will work with you to get up and running.

openGear products are covered by a generous five year warranty.  Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.


Tech Specs


Video Formats

  • 270 Mbps - 12 Gbps, format agnostic

Video Input Digital

  • 1-channel 12G-SDI Single Mode ST Fiber connector, SMPTE 297/259/292/424/2081/2082
  • Nominal Wavelength: Rx 1260 nm (Min), 1620 nm (Max)
  • Optical Sensitivity: -10 dBm (Max) for 6 Gbps & 12 Gbps, -14 dBm (Max) for 270 Mbps, 1.5 Gbps & 3 Gbps
  • Overload Power: -2 dBm (Min)

Video Output Digital

  • 1-channel dual matching 12G-SDI BNC connectors, SMPTE 259/292/424/2081/2082

Reclocking

  • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select
  • All other rates are passed through and not reclocked

User Interface

  • openGear DashBoard network control software via Windows, macOS, or Linux

Size

  • openGear standard form factor, front slot and rear card
  • Two slots required for each card

Weight

  • 0.5 lb (0.3 kg)

Power

  • openGear frame compatible, 3.0 watts max per card

Environment

  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% non-condensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
