NASA Deploys AJA HA5 Converter for International Space Station

NASA Deploys AJA HA5 Converter for International Space Station

December 3, 2020

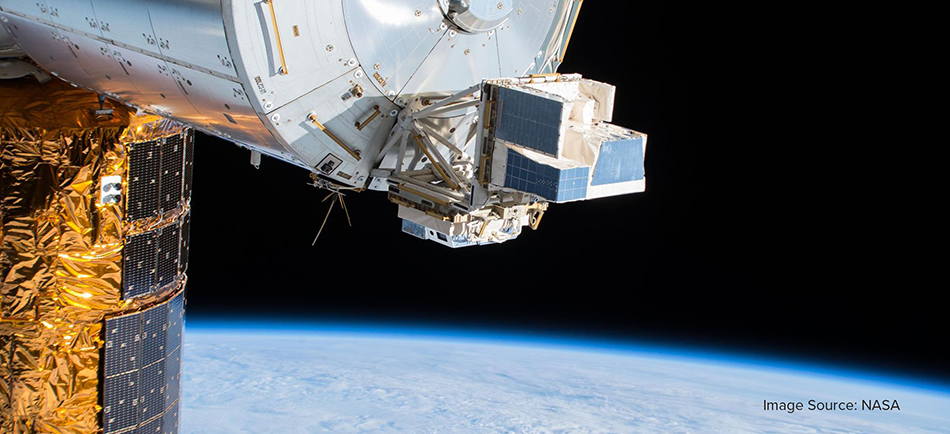

NASA’s High Definition Earth Viewing (HDEV) payload was developed to enable long-term experimentation of commercial off-the-shelf cameras and video equipment in rigorous space environments. Mounted to the exterior of the International Space Station (ISS), HDEV captured continuous live HD footage of Earth streamed to multiple CDNs, reaching more than 318 million viewers over the course of five years on USTREAM alone. Live image data was analyzed by teams on the ground to evaluate performance of the camera sensors, targeted at reducing costs and risks by helping NASA select the most durable commercial cameras for long-term use on future missions.

Prior to HDEV, the ISS was equipped with a combination of external SD and internal HD cameras that downlinked six independent video streams during end-to-end signal connections. Installation of HDEV upgraded the ISS with four exterior HD cameras that were continuously and automatically operated without requiring onboard crew control. While previous space exploration programs had used costly and specialized camera systems, HDEV was designed with commercial equipment enclosed in an environment able to withstand rigorous radiation, temperature and antigravity conditions of space. Using commercial video equipment minimized costs and development time for the payload, and robotic transfer of HDEV from the launch vehicle to the exterior of the ISS enabled simple installation without crew interaction. During ISS orbit of the Earth – once every 90 minutes – HDEV cameras captured stunning views including sunrise or sunset every 45 minutes.

The HDEV payload consisted of four cameras from manufacturers Hitachi, Sony, Panasonic and Toshiba, which were housed in a pressurized enclosure. The cameras operated individually, one-at-a-time in a repeating cycle that could be overridden by ground controls as needed. Within the pressurized enclosure, the HDEV housed a range of robust video production equipment, including AJA’s HA5 Mini-Converter for powering reliable HDMI to HD-SDI conversion in space.

During continuous camera operation, HDEV video was encoded as an H.264 stream and transmitted via Ethernet through the ISS for downlink to a ground segment in White Sands, New Mexico. Video data was sent to the Johnson Space Center in Houston to create a public real-time stream and archival footage when needed. Live streams were available for public viewing on the Internet, and HDEV video was also used as supplemental footage for ISS updates on NASA TV. The HDEV experiment launched in 2014 and lasted over five years, demonstrating high performance of commercial cameras and video equipment, including AJA’s HA5 Mini-Converters, and their durability to withstand rigorous space environments with zero downtime.

About HA5
HA5 converts HDMI to SDI or HD-SDI and is a useful tool for connecting HDMI cameras to SD/HD-SDI equipment. Up to eight channels of HDMI audio are embedded into the SD/HD-SDI output allowing a convenient single cable audio/video connection. HA5 provides two SD/HD-SDI outputs and supports long HDMI cables on the input.
