KONA® 3G

Unparalleled professional performance

KONA 3G offers users a single, powerful card with support for 4:2:2 and 4:4:4 color spaces to provide the highest quality for your images. The futureproof architecture means you can easily work with HD and 2K now and switch to working at 4K resolution when the need arises without the requirement for new hardware.

$1,995 US MSRP*

* Pricing is for US only. International pricing will vary.

The power to perform

KONA 3G is a video and audio desktop I/O card that provides professionals with unparalleled features for handling everything from SD to HD, 2K and 4K - all with full 10-bit uncompressed clarity.

KONA 3G supports Dual Link 4:4:4 HD-SDI, with full-bandwidth 4:4:4 RGB at 10-bits for 1080i, 1080p, 1080PsF and 720p formats. KONA 3G can also convert between 4:4:4 and 4:2:2 formats for single link HD-SDI monitoring and output.

With a broadcast-quality up/down/cross-converter and the ability to work in 3D, KONA 3G has the power for the work you do today and into the future.

Futureproof for 4K workflows

KONA 3G is futureproof, allowing you to easily work in HD and 2K and switch to working at 4K resolution all on the same hardware.

Leading the way for quality 4K capture, monitoring and output, KONA 3G offers 4K in both YCbCr and RGB. When 4K mode is selected, the four SDI connectors are remapped as I/O for handling the four quadrants of a 4K picture. A large number of 4K formats are supported for this emerging workflow.

Workflow

Supporting macOS, Windows and Linux, KONA 3G offers cost effective simple connectivity for a range of workflows.



View Workflow

3D ready and able

KONA 3G enables simple and affordable 3D workflows using the standard hardware, with no additional equipment required.

Through SDI, you can output discrete left and right eye feeds with a simple Stereo button choice in the AJA Control Panel. In addition, all the muxed feeds for SDI stereo monitoring are accessible through tight integration with 3rd-party application timelines for stereo monitoring.

Through HDMI 1.4a, you can utilize more affordable 3D monitors for side-by-side and Top Bottom needs.

Powerful connectivity

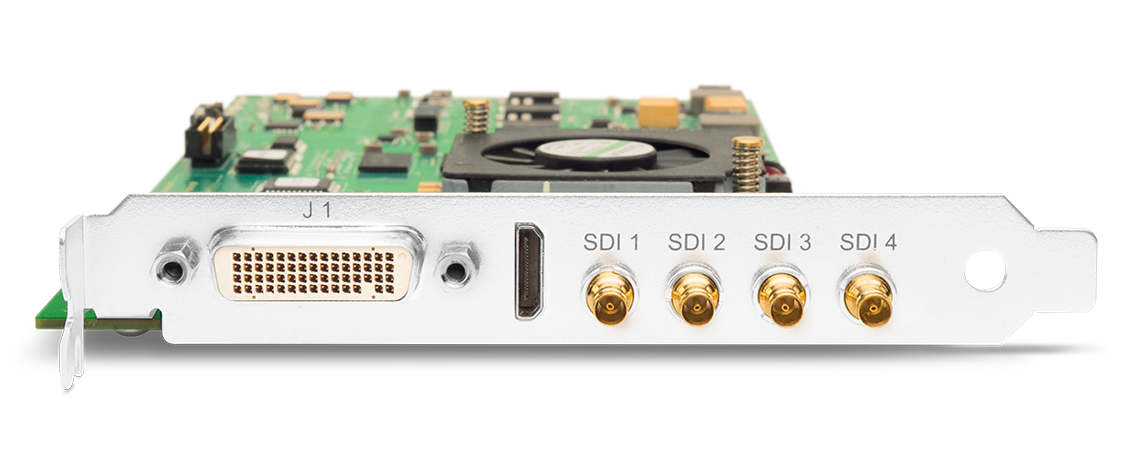

For SDI video, the card features two 3G/HD/SD-SDI inputs and two outputs - or for 4K all four SDI connectors can be used for capture and output - HDMI 1.4a monitoring output, LTC input and output, one connection for Genlock input, and configurable 3x BNC HD/SD analog video output.

For audio, tie the KONA 3G to a digital audio mixer or DAW output with 8-channel 24-bit 48kHz or 96kHz AES audio via BNC connections on the supplied breakout cable - or get the optional K3G-Box to output an even larger 16-channels of AES audio.

KONA 3G's high-quality input sample-rate conversion on AES inputs eliminates the need for audio source synchronization. For multi-channel audio mastering, 16-channel SDI embedded 24-bit 48kHz audio provides the power you need to integrate into any audio environment.

Integrated AJA hardware conversion

KONA 3G features full 10-bit, broadcast-quality, motion adaptive SD to HD up-conversion, HD to HD cross-conversion, HD to SD down-conversion, and automatic HD/SD 12-bit component analog output. Since all conversion functionality is hardware-based, it's available on ingest or playback.

Uniquely, KONA 3G can cross-convert 720p 23.98 to 1080PsF 23.98. Cross-conversion is particularly valuable in today's multi-format HD post environment where producing pristine 720p or 1080i signals at-will helps streamline dailies and deliverables.

Internal SD/HD hardware downstream keyer

KONA 3G features a powerful hardware downstream keyer that can place graphic files with an alpha channel over the video being input to the board-or a selectable color matte - or the contents of the card's framebuffer. The downstream keyer can also key a QuickTime video clip that has an alpha channel by playing it in realtime, via the supplied AJA TV application, over live video coming into the card.

Extend your Connectivity with K3G-Box

The optional K3G-Box breakout box and cables allow KONA 3G to integrate easily into rack environments, enabling quick access to all video and audio connections without having to get at the back of the tower computer.

Additional K3G-Box functionality over the standard breakout cable comes in the form of eight additional AES audio channels, 2-channel RCA analog audio monitoring jacks, and looping BNC Genlock reference connectors.

View Connections

Industry-Leading Support

AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your KONA installation, configuration, operation or encounter any technical issue,  AJA Support will work with you to get up and running.

KONA products are covered by a generous three year international warranty.

Tech Specs

Print Tech Specs

Video Formats

  • (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30
  • (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30
  • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50 and 60
  • (2K) 2048 x 1080PsF 23.98, 24, 25
  • (2K) 2048 x 1556p 15, 14.98
  • (2K) 2048 x 1556PsF 15, 23.98, 24
  • (HD) 1080i 50, 59.94, 60
  • (HD) 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 720p 23.98*, 24*, 25*, 29.97*, 30*, 50, 59.94, 60
  • (SD) 625i 50
  • (SD) 525i 23.98*, 59.94



* These formats are dependent on specific software functionality and are not normal over the wire formats.

Video Input Digital

  • 4K/UltraHD 422 and 444 (4x BNC)
  • 2K HSDL (High Speed Data Link) 4:4:4, (2x BNC)
  • 3G/SD/HD SDI, SMPTE-259/292/296/424, 8 or 10-bits
  • Dual Link HD 4:4:4 (2x BNC)
  • Single Link 4:2:2 or 4:4:4 (1x BNC)
  • 1D LUT Support

Video Output Digital

  • 4K/UltraHD 422 and 444 (4x BNC)
  • 2K HSDL (High Speed Data Link) 4:4:4, (2x BNC)
  • 3G/SD/HD SDI, SMPTE-259/292/296/424
  • Dual Link HD 4:4:4, (2x BNC)
  • Single Link 4:2:2 or 4:4:4 (1x BNC)
  • HDMI v1.4, 30/36-bits/pixel, RGB or YUV, 2.25Gbps, SD, HD, 1080p-50/60 (1x mini-HDMI)

Video Output Analog

  • Composite/S-Video (Y/C) (1x BNC/2x BNC+Adapter)
  • NTSC, NTSCJ, PAL
  • Component (3x BNC)
  • HD: YPbPr, RGB
  • SD: YPbPr, RGB (component mode)
  • SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
  • 12-bit D/A, 8x oversampling
  • +/- .2 dB to 5.0 MHz Y frequency response
  • +/- .2 dB to 1 MHz C frequency response
  • .5% 2T pulse response
  • <1% Diff Phase
  • <1% Diff Gain
  • <1 ns Y/C delay inequity

Audio Input Digital

  • 16-Channel, 16 and 24-bit SMPTE-259 SDI embedded audio, 48 kHz sample rate, synchronous
  • 16-Channel, 16 and 24-bit AES/EBU audio, 48 kHz sample rate, synchronous (via 8x BNC on optional K3G-Box)
  • 8-Channel, 16 and 24-bit AES/EBU audio, 48 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (via 4x BNC on breakout cable)

Audio Output Digital

  • 16-Channel, 16 and 24-bit SMPTE-259 SDI embedded audio, 48 kHz sample rate, synchronous
  • 16-Channel, 16 and 24-bit AES/EBU audio, 48 kHz sample rate, synchronous (via 8x BNC on optional K3G-Box)
  • 8-Channel, 16 and 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
  • 8-Channel, 16 and 24-bit AES/EBU audio, 48 kHz sample rate, synchronous or nonsynchronous, internal sample rate conversion (via 4x BNC on breakout cable)

Audio Output Analog

  • 2-Channel unbalanced output (via 2x RCA jacks on optional K3G-Box)

Downstream Keyer

  • Supports graphics with alpha channel over video, matte or framebuffer, or framebuffer content over incoming video or matte

Up-Conversion

  • Hardware 10-bit
  • Anamorphic: fullscreen
  • Pillarbox 4:3: results in a 4:3 image in center of screen with black sidebars
  • Zoom 14:9: results in a 4:3 image zoomed slightly to fill a 14:9 image with black sidebars
  • Zoom Letterbox: results in image zoomed to fill fullscreen
  • Zoom Wide: results in a combination of zoom and horizontal stretch to fill a 16:9 screen; this setting can introduce a small aspect ratio change

Down-Conversion

  • Hardware 10-bit
  • Anamorphic: fullscreen
  • Letterbox: image is reduced with black top and bottom added to image area with the aspect ratio preserved
  • Crop: image is cropped to fit new screen size

Cross-Conversion

• Hardware 10-bit
• 1080i to 720p
• 720p to 1080i
• 720p to 1080PsF

SD to SD Aspect Ratio Conversion

  • Letterbox: This transforms SD anamorphic material to a letterboxed image
  • H Crop: Will produce a horizontally stretched effect on the image; transforms anamorphic SD to full frame
  • SD Pillarbox: Will produce an image in the center of the screen with black borders on the left and right sides and an anamorphized image in the center
  • V Crop: Will transform SD letterbox material to an anamorphic image

Timecode

  • LTC timecode input and output (via 1x BNC each)

Reference Input

  • Analog Color Black (1V) or Composite Sync (2 or 4V)
  • Looping
  • 75 ohm on optional K3G-Box, terminated on supplied breakout cable

Electrical Interface

  • 4-lane PCIe 2.0

Machine Control

  • RS-422, Sony 9-pin protocol (via breakout cable or optional K3G-Box)
  • 9-pin D-connector pinout is as follows:

1

GND

2

RX-

3

TX+

4

GND

5

No Connection

6

GND

7

RX+

8

TX-

9

GND

Shell

GND

Size (w x d x h)

  • 0.75" x 8.25" x 5.0" (19.05 x 209.55 x 127.00 mm)

Weight

  • 0.7 lb (0.4 kg)

Power

  • 19W typical, 21W maximum

Environment

  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
