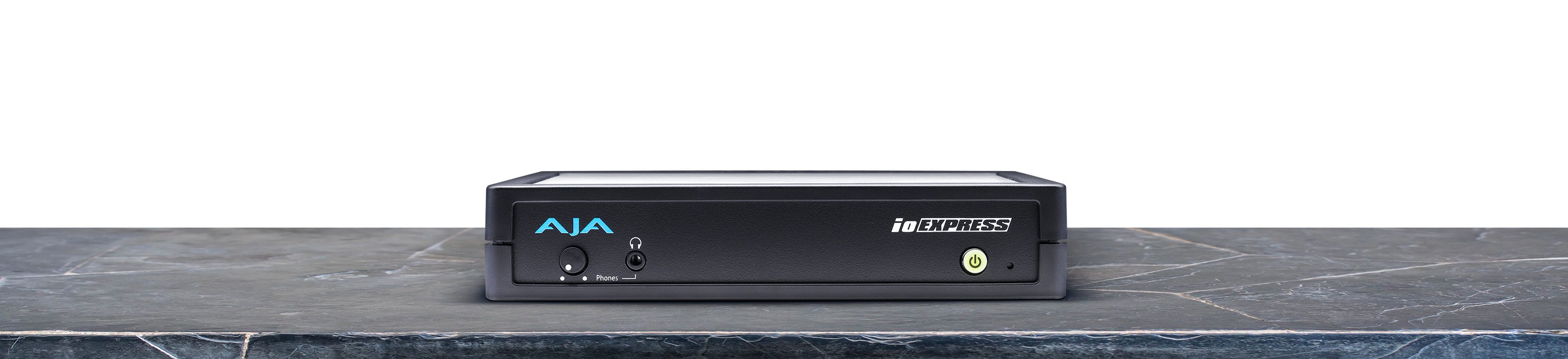

Io Express

Io Express

Mobile I/O

Io Express

Tech Specs


Video Formats

  • (HD) 1080i 50, 59.94, 60
  • (HD) 1080PsF 23.98, 24
  • (HD) 1080p 23.98, 24, 25, 29.97, 30
  • (HD) 720p 50, 59.94, 60
  • (SD) 625i 50
  • (SD) 525i 59.94

Video Input

  • SD/HD SDI, SMPTE-259/292/296/424, 8 or 10-bit
  • Single Link 4:2:2 (1x BNC)
  • HDMI v1.3

Video Output Digital

  • SD/HD SDI, SMPTE-259/292/296/424, 8 or 10-bit
  • Single Link 4:2:2 (1x BNC)
  • HDMI v1.3

Video Output Analog

  • Composite/S-Video (Y/C) (1x BNC)
  • NTSC, NTSCJ, PAL
  • Component (3x BNC)
  • HD: YPbPr, RGB
  • SD: YPbPr, RGB (component mode)
  • SMPTE/EBU N10, Betacam 525 line, Betacam 525J, RGB
  • 12-bit D/A, 8x oversampling
  • +/- .2 dB to 5.0 mHz Y frequency response
  • +/- .2 dB to 1 mHz C frequency response
  • .5% 2T pulse response
  • <1% Diff Phase
  • <1% Diff Gain
  • <1 ns Y/C delay inequity

Audio Input Digital

  • 8-Channel, 16 and 24-bit SMPTE-259 SDI embedded audio, 48 kHz sample rate, synchronous
  • 8-Channel, 16 and 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous

Audio Output Digital

  • 8-Channel, 16 and 24-bit SMPTE-259 SDI embedded audio, 48 kHz sample rate, synchronous
  • 8-Channel, 16 and 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous

Audio Output Analog

  • 2-Channel 16 and 24-bit unbalanced audio (via RCA jack)

Reference Input or LTC Input

  • 1x BNC assignable to Reference video or LTC input

Reference

  • Analog Color Black (1V) or Composite Sync (2 or 4V)
  • Nonterminating

Electrical Interface

  • PCI Express X1

Machine Control

  • RS-422, Sony 9-pin protocol
  • 9-pin D-connector pinout is as follows:

1

GND

2

RX-

3

TX+

4

GND

5

No Connection

6

GND

7

RX+

8

TX-

9

GND

Shell

GND


Size (w x d x h)

  • 8.74" x 7.09" x 1.65" (222.0 x 180.09 x 41.91 mm)

Weight

  • 1.5 lbs (0.7 kg)

Power

  • 12-18V, 11-13W

Environment

  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
