HDBaseT Products

HDBaseT Products

Video and Control over HDBaseT

AJA’s HDBaseT line of Mini-Converters offer an easy solution for extending video signals up to 100 meters over Cat 5 (or better) cable, utilizing the industry standard HDBaseT protocol. Bidirectional IR and RS-232 for device control is also supported, making these Mini-Converters ideal in a variety of scenarios including: fixed installation AV, digital signage, live events, postproduction/network/studio environments and on-set.

HDBaseT Compatibility

By conforming to the HDBaseT standard, AJA devices can be integrated with existing devices from other HDBaseT compliant manufacturers which you might already have in use. This ensures device compatibility when integrating AJA devices.

Mix and Match

The HDBaseT signal is a unified standard, allowing not only conversion to and from HDBaseT but also between HDMI and SDI.

For example, an HB-T-SDI can be used to convert an SDI signal to HDBaseT. At the receiving end, an HB-R-HDMI can be used to turn the HDBaseT signal into HDMI, effectively performing an SDI-to-HDMI conversion without the need for any additional hardware.

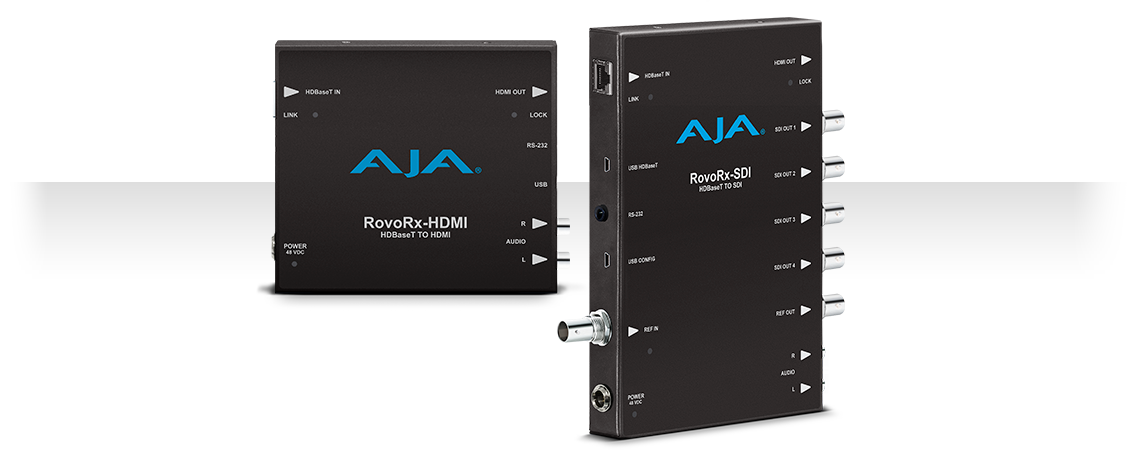

RovoRx-SDI

HDBaseT to 6G/3G-SDI and HDMI with Video, Audio, Power, RS-232 control and VISCA support

  • 4x 6G/3G-SDI outputs
  • 1x HDMI UltraHD/HD output
  • DA Mode for distributing multiple SDI signals from an HDBaseT source
  • 1x RCA Stereo audio output
  • 1x REF In/Out
  • 1x USB
  • 1x RS-232 Bi-directional
  • 1x HDBaseT connector (RJ-45) allowing for camera interaction, power, and control, all over one Cat 5e/6 cable.

Only $995 US MSRP*

More Info

RovoRx-HDMI

HDBaseT to HDMI with Video, Audio, Power, RS-232 control and VISCA support
  • HDBaseT UltraHD/HD signal extender
  • Extend uncompressed UltraHD or HD HDMI signal up to 100m over Cat 5 (or better) cable
  • Converts HDBaseT to HDMI
  • Provides Power to compatible devices like AJA's RovoCam
  • VISCA support
  • RS-232 device control connection
Only $495 US MSRP*

HB-R-HDMI

HDBaseT to HDMI

  • HDBaseT certified 4K/UltraHD signal extender
  • Converts HDBaseT to HDMI
  • Extend uncompressed 4K or HD HDMI signal up to 100m over Cat 5 (or better) cable
  • IR IN and OUT
  • RS-232 device control connection

Only $395 US MSRP*

More Info

HB-T-HDMI

HDMI to HDBaseT

  • HDBaseT certified 4K/UltraHD signal extender
  • Converts UltraHD, 4K or HD HDMI to HDBaseT
  • Extend uncompressed 4K or HD HDMI signal up to 100m over Cat 5 (or better) cable
  • IR IN and OUT
  • RS-232 device control connection

Only $395 US MSRP*

More Info

HB-R-SDI

HDBaseT to SDI

  • HDBaseT certified signal extender
  • Converts HDBaseT to 3G-SDI
  • Extend uncompressed SDI signals up to 100m over Cat 5 (or better) cable
  • Wide support for VESA (Computer) formats and DVI compatibility (with adapter)
  • Configure via USB port and supplied Mini-Config software
  • IR IN and OUT
  • RS-232 device control connection

Only $595 US MSRP*

More Info

HB-T-SDI

SDI to HDBaseT

  • HDBaseT certified signal extender
  • Converts 3G-SDI to HDBaseT
  • Extend uncompressed SDI signals up to 100m over Cat 5 (or better) cable
  • Wide support for VESA (Computer) formats and DVI compatibility (with adapter)
  • Configure via USB port and supplied Mini-Config software
  • IR IN and OUT
  • RS-232 device control connection

Only $595 US MSRP*

More Info
