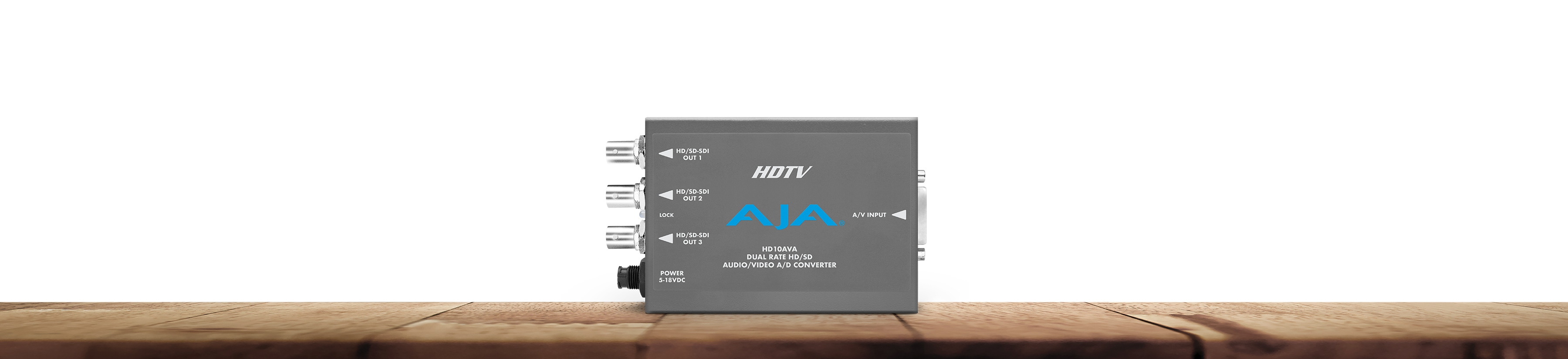

Tech Specs

Print Tech Specs

Formats

(HD) 1080i 50, 59.94, 60
(HD) 1080PsF 23.98, 24, 25
(HD) 1035i 50, 59.94, 60
(HD) 720p 50, 59.94, 60
(SD) 625i
(SD) 525i

Video Inputs

HD component YPbPr, (SMPTE-274), 1 x BNC
SD component/composite/YC (S Video), 1 x BNC

Audio Inputs

4-Channel balanced, XLR

Outputs

SDI, HD-SDI, SMPTE-259/292/296, 3 x BNC

Video A/D

12-bits

Audio A/D

24-bits, 48 kHz

Audio Levels

+10dBu, +12dBu, +18dBu, +24dBu, full scale digital

User Controls

External dipswitch
Component/composite (SD)
Composite/YC (SD)
Pedestal present (on/off) (SD)
Audio input level

Size (w x d x h)

5.8" x 3.1" x 1.0" (147mm x 79mm x 25mm)

Power

+5 to 18V DC, 5 watts, power supply required, included with purchase

Environment

Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <3,000 meters (<10,000 feet)
