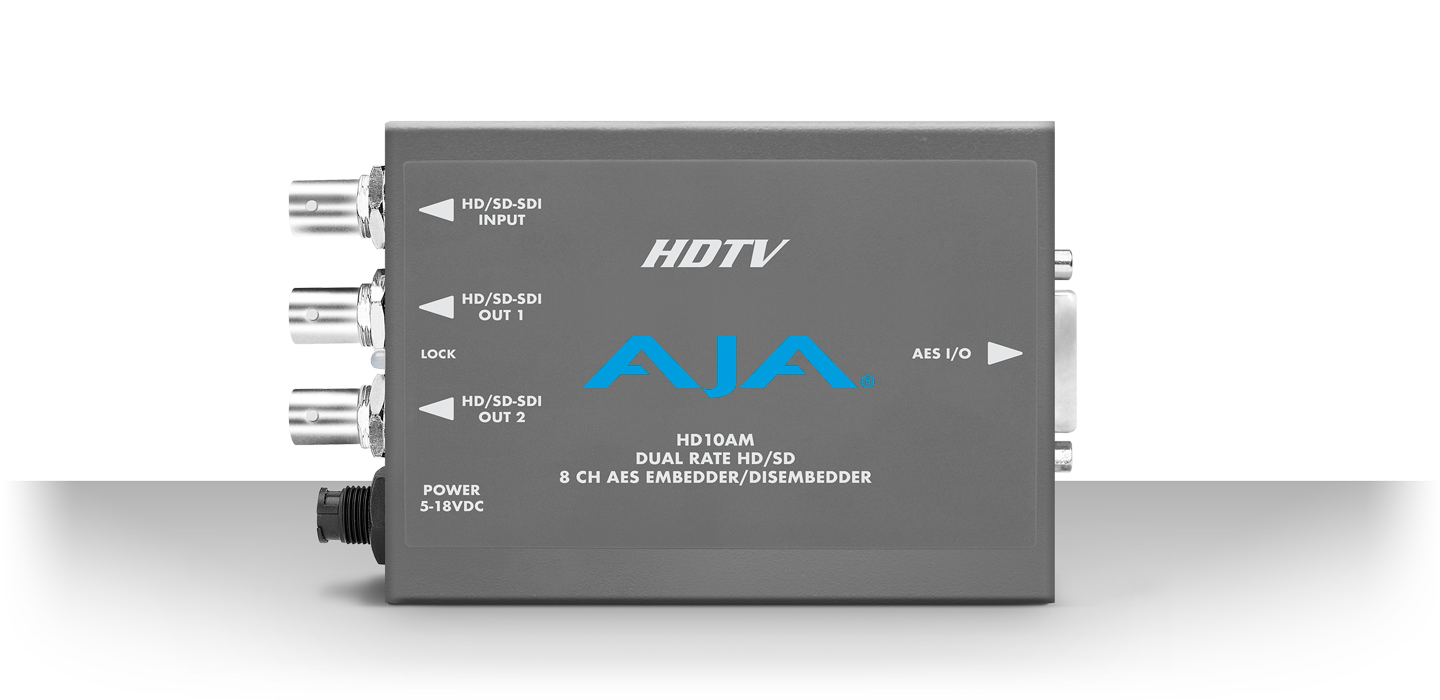

HD10AM

HD/SD 8 Channel AES Embedder/Disembedder

HD10AM is no longer available. For more information about AJA Mini-Converter products please visit the Mini-Converters page.


Tech Specs


Formats

• HD SMPTE 292/296M
• SD SMPTE 259M
(Automatic Configuration)


Video Inputs

• HD-SDI or SDI BNC


Video Outputs

• Follows input, 2 x BNC


Audio Inputs

• 4 x AES 110 ohm XLR


Audio Outputs

• 4 x AES 110 ohm XLR


AES Audio

• SMPTE 272M/299M, 48 kHz synchronous


User Controls

• External dipswitch
• Embedder on/off, Ch pairs 1/2 - 7/8
• Input group select 1/2, 3/4
• Output group Select 1/2, 3/4
• SRC bypass


Size (w x d x h)

• 5.8" x 3.1" x 1.0" (147mm x 79mm x 25mm)


Power

• +5-18VDC, 5 watts. power supply required, included with purchase


Environment

• Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
• Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
