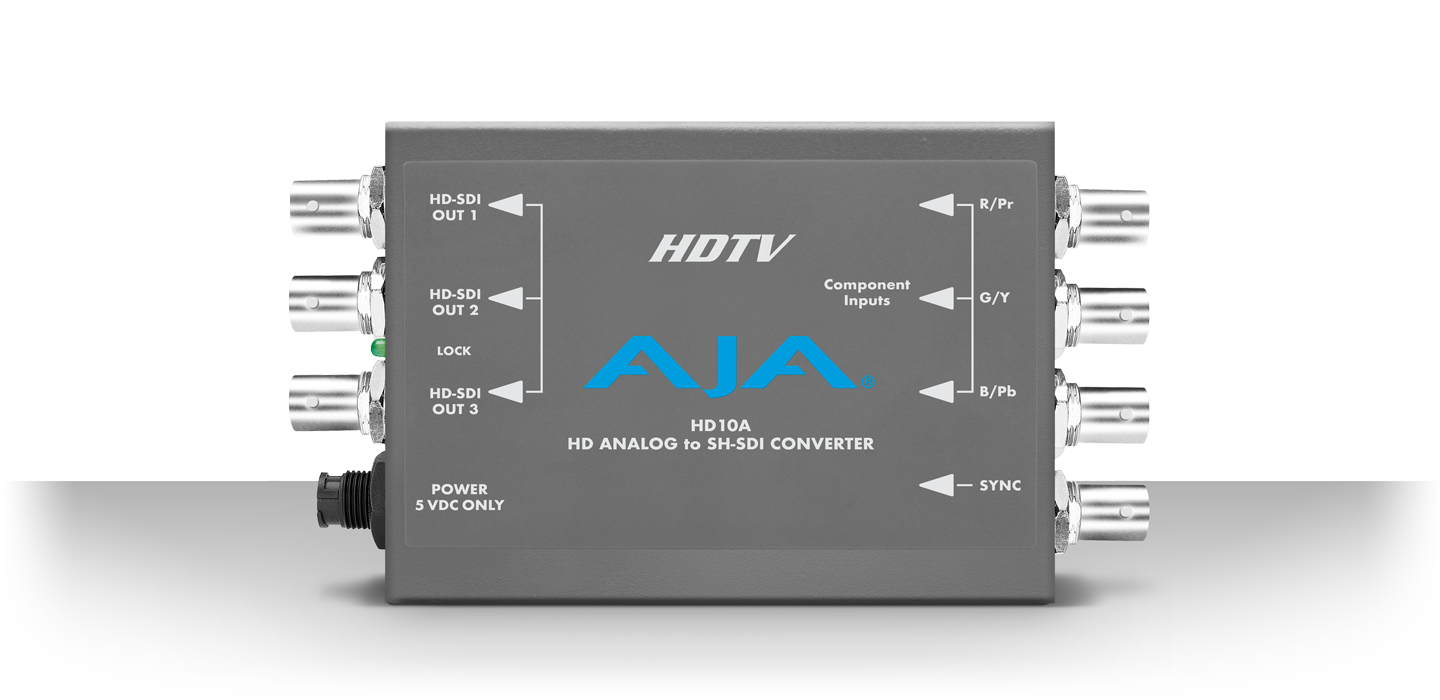

HD10A

HDTV 10-Bit Analog to Digital HD Converter

The HD10A is a miniature, high-quality, 10-bit analog to digital converter for HDTV. A companion to the popular HD10C D/A converter, the HD10A can add an HD-SDI output to cameras, computers with HD RGB graphics, VTRs, or other analog-only HD equipment. The HD10A accepts HD YPbPr or RGB analog and outputs three duplicate HD-SDI signals. Works in 1080i, 1035i, 1080psf and 720p with internal or external sync (tri-level).

Features

  • Low Cost, High Quality, 10-bit HDTV A/D Conversion
  • Full Bandwidth Component HD RGB or YPbPr Input
  • 3 HD-SDI Outputs
  • Multi-Standard
  • Internal or External Sync

Universal Power Supply

All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.

Compact and Portable

AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack, or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

AJA Mini-Matrix

Information on the complete line of AJA Mini-Converters is now available as a mobile app on iOS. The Mini-Converter product line is extensive and this app helps you find the right converter for any situation, wherever you are.

Individual products have links back to the main AJA website for more details and you can email product information directly from the app. The free AJA Mini-Matrix app for iPad® and iPhone® is available now in the Apple iTunes® Store.



Download from the Apple App Store

Launch Browser Version for Android

Industry Leading Support

AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your Mini-Converter installation, configuration, operation or encounter any technical issue,  AJA Support will work with you to get up and running.

Mini-Converter products are covered by a generous five year warranty. Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.


Tech Specs


Formats

• (HD) 1080i 50, 59.94, 60
• (HD) 1035i 50, 50.94, 60
• (HD) 1080PsF 23.98, 24, 25, 29.97, 30
• (HD) 720p 59.94, 60


Inputs

• YPbPr, RGB (SMPTE-274), 3 x BNC
• External Sync, 1 x BNC


Outputs

• HD-SDI, SMPTE-292/296
• 3 x BNC


Frequency Response

• Y +0, - .5dB to 30 mHz
• C +/- .25dB to 15 mHz


User Controls

• External dipswitch
• RGB/YPbPr input
• 59.94, 60 Hz (or 23.98, 24, or 29.97, 30)
• Internal/External sync


Environment

• Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
• Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
