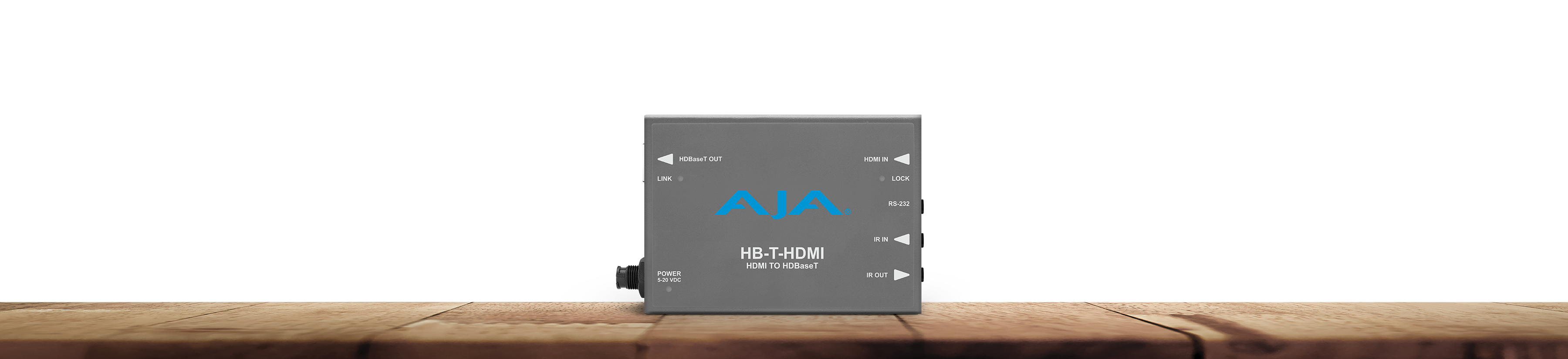

HB-T-HDMI

HDMI to HDBaseT

The HB-T-HDMI and HB-R-HDMI offer an easy solution for extending UltraHD or HD HDMI signals up to 100 meters over Cat 5 (or better) cable, utilizing the industry standard HDBaseT protocol. Bi-directional IR and RS- 232 for device control is also supported, making these Mini-Converters ideal in a variety of scenarios including: fixed installation AV, digital signage, live events, postproduction/network/studio environments and on-set.

$395 US MSRP*

* Pricing is for US only. International pricing will vary.

Key Features:

  • HDBaseT certified 4K/UltraHD signal extender
  • Converts UltraHD, 4K or HD HDMI to HDBaseT
  • Extend uncompressed 4K or HD HDMI signal up to 100m over Cat 5 (or better) cable
  • Wide support for VESA (Computer) formats and DVI compatibility (with adapter)
  • IR IN and OUT
  • RS-232 device control connection

Universal Power Supply

All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.

Compact and Portable

AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.

AJA Mini-Matrix

Information on the complete line of AJA Mini-Converters is now available as a mobile app on iOS. The Mini-Converter product line is extensive and this app helps you find the right converter for any situation, wherever you are.

Individual products have links back to the main AJA website for more details and you can email product information directly from the app. The free AJA Mini-Matrix app for iPad® and iPhone® is available now in the Apple iTunes® Store.



Download from the App Store

Industry-Leading Support

AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your Mini-Converter installation, configuration, operation or encounter any technical issue,  AJA Support will work with you to get up and running.

Mini-Converter products are covered by a generous five year international warranty. Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.

Tech Specs

Print Tech Specs

Video Formats

  • (4K) 4096 x 2160P 50, 59.94, 60 (8-bit 4:2:0)
  • (4K) 4096 x 2160P 23.98, 24, 25, 29.97, 30
  • (UltraHD) 3840 x 2160P 50, 59.94, 60 (8-bit 4:2:0)
  • (UltraHD) 3840 x 2160P 23.98, 24, 25, 29.97, 30
  • (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
  • (HD) 1080p 23.98, 24, 25, 29.97, 50, 59.94, 60
  • (HD) 1080i 25, 29.97
  • (HD) 720p 25, 29.97, 50, 59.94, 60
  • (SD) 625i
  • (SD) 525i


Note: Wide range of VESA formats supported for pass through see associated chart on VESA formats

Video Input

  •  HDMI 1.4b

Video Output

  • HDBaseT (RJ-45)
  • CAT 5e 70m (230 ft) or CAT 6a 100m (328 ft)
  • 4K/UltraHD signals require Cat 6a to achieve 100m cable run (HD signals can run the full 100m on Category 5e cable)

Video Displays

  • HDBaseT Cable Run Performance for 4K/UltraHD/HD



W x H Frame Rate Color
Sampling		 Max. Cable Length Max. Bit
Depth
Cat 5e/6 Cat 6a/7
1920 x 1080 < 30 fps 4:2:2 100 meters 100 meters 16-bit
> 30 fps 4:2:2 100 meters 100 meters 12-bit
4:2:2 70 meters 100 meters 16-bit
2048 x 1080 < 30 fps 4:2:2 100 meters 100 meters 16-bit
> 30 fps 4:2:2 100 meters 100 meters 12-bit
4:2:2 70 meters 100 meters 16-bit
3840 x 2160 < 30 fps 4:4:4 70 meters 100 meters 8-bit
> 30 fps 4:2:0 70 meters 100 meters 8-bit
4096 x 2160 < 30 fps 4:4:4 70 meters 100 meters 8-bit
> 30 fps 4:2:0 70 meters 100 meters 8-bit

VESA Displays

  • VESA Display Resolutions and Performance



W x H Frame Rate Color
Sampling		 Max. Cable Length Bits Per
Pixel
Cat 5e/6 Cat 6a/7
640 x 480 to 85 fps 4:4:4 100 meters 100 meters 24-bits
800 x 600 to 120 fps 4:4:4 100 meters 100 meters 24-bits
1024 x 768 to 120 fps 4:4:4 100 meters 100 meters 24-bits
1152 x 768 - 4:4:4 100 meters 100 meters 24-bits
1280 x 768 to 120 fps 4:4:4 100 meters 100 meters 24-bits
1280 x 800 to 120 fps 4:4:4 100 meters 100 meters 24-bits
1280 x 1024 to 120 fps 4:4:4 100 meters 100 meters 24-bits
1360 x 768 to 120 fps 4:4:4 100 meters 100 meters 24-bits
1366 x 768 to 120 fps 4:4:4 100 meters 100 meters 24-bits
1400 x 1050 to 120 fps 4:4:4 100 meters 100 meters 24-bits
1440 x 900 to 120 fps 4:4:4 100 meters 100 meters 24-bits
1600 x 1200 to 75 fps 4:4:4 100 meters 100 meters 24-bits
85 to 120 fps 4:2:0 70 meters 100 meters 24-bits
1680 x 1050 to 85 fps 4:4:4 100 meters 100 meters 24-bits
120 fps 4:4:4 70 meters 100 meters 24-bits
1920 x 1200 to 120 fps 4:4:4 100 meters 100 meters 24-bits
1920 x 1440 to 60 fps 4:4:4 70 meters 100 meters 24-bits
2560 x 1600 60_RB 4:4:4 70 meters 100 meters 24-bits

Audio Input

  • 8-channels (4 pairs) of embedded audio supported
  • Rates supported: 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, and 96 kHz

Audio Output

  • HDBaseT embedded audio

RS-232

  • 1 x 3.5mm TRS Input for RS-232/VISCA bidirectional signals

IR

  • 1 x 3.5mm TRS Input for IR Input
  • 1 x 3.5mm TRS Input for IR Output

Size (w x d x h)

  • 4.25” x 3.125” x 1.0” (108mm x 79.4mm x 25mm)

Weight

  • 0.4 lbs (0.2 kg)

Power

  • +5 to 20V DC regulated, 6 watts max., AJA external power supply model DWP-U-R1, 100-240V, 50/60 Hz universal input

Environment

  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
