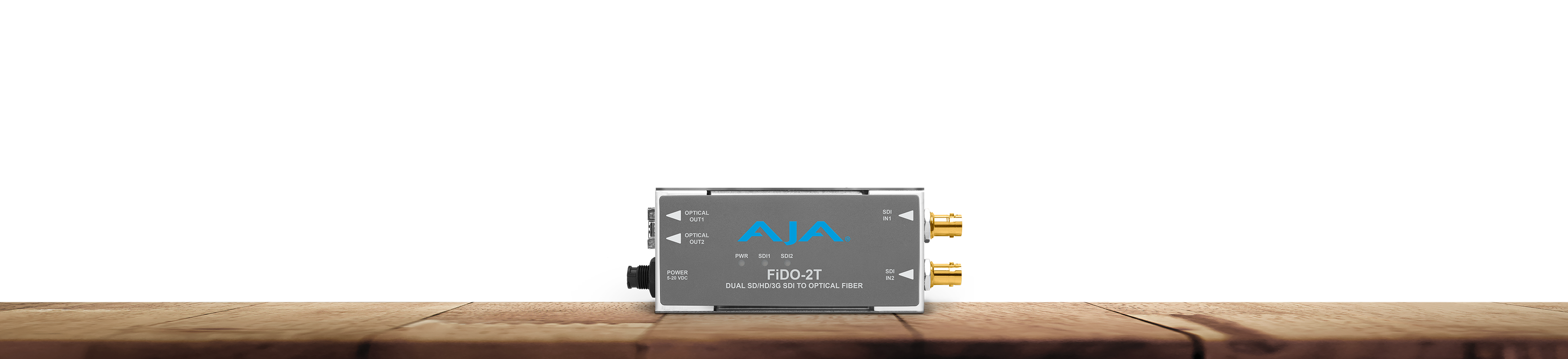

FiDO-2T-X

FiDO-2T-X

2-Channel 3G-SDI to Single-Mode LC
Fiber Transmitter (CDWM)*

Fiber Solutions
FiDO-2T-X

Tech Specs


Video Formats

  • 150 Mbps - 3 Gbps, format agnostic

Video Input Digital

  • 2-channel independent 3G-SDI BNC Inputs, SMPTE-259/292/424

Video Output Digital

  • 2-channel independent CWDM LC Fiber Outputs, SMPTE-259/292/424
  • Nominal Wavelength:
    • SFP Option 1: 1271 nm & 1291 nm
    • SFP Option 2: 1311 nm & 1331 nm
    • SFP Option 3: 1351 nm & 1371 nm
    • SFP Option 4: 1391 nm & 1411 nm
    • SFP Option 5: 1431 nm & 1451 nm
    • SFP Option 6: 1471 nm & 1491 nm
    • SFP Option 7: 1511 nm & 1531 nm
    • SFP Option 8: 1551 nm & 1571 nm
    • SFP Option 9: 1591 nm & 1611 nm
  • Optical Power: -5dBm (Min), 0dBm (Max)
  • Extinction Ratio: 7.5dB (Typ)

Reclocking

  • 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
  • All other rates are passed through and not reclocked

Size (w x d x h)

  • 4.6" x 1.71" x 0.85" (117.0 x 43.5 x 21.6mm)

Weight

  • 0.5 lb (0.3 kg)

Power

  • 3 watts, max
  • Uses 5-20VDC power, AJA power supply model DWP-U-R1 included

Environment

  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
