DRM - Rackmount Frame

Rack Mount Multiple AJA Mini-Converters

Mini-Matrix App

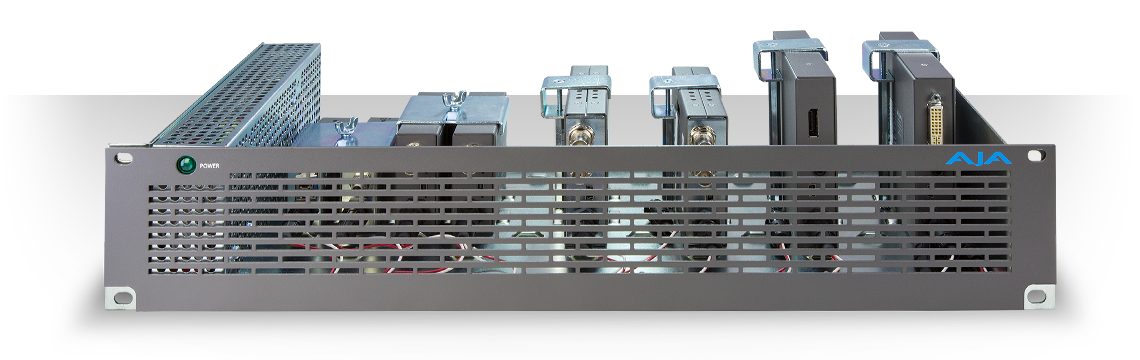

The DRM provides an open-ended rack-mountable frame for holding and powering AJA Mini-Converters (sold separately). The DRM has a 2RU high frame that can accommodate up to 6 of the larger AJA Mini-Converters (HD10 series)*. The DRM has a built-in 110/220V power supply with 12 connectors to provide 5V power directly to the Mini-Converters without the need for individual power supplies for each Mini-Converter. **

*Note: The largest Mini-Converters extend above the 2RU chassis height. One to two additional RU of empty space above the DRM-R2 frame is required for the large Mini-Converters.
**Note: The total power consumption of all Mini-Converters installed in the DRM and active at one time should not exceed 50 watts. If more power and flexibility is required in rack frame form factor, please explore our openGear card and frame options at: www.aja.com/family/opengear

$749 US MSRP*

* Pricing is for US only. International pricing will vary.

Features

Universal 100-240V, 50/60Hz Power Input
Twelve separate +5V DC regulated outputs (hard-wired to power supply)
Mounting slots for up to 12 AJA Mini-Converters (some Mini-Converters require two slots
Optional Front Cover Plate (sold separately)
Width: standard 19" rack mount
Height: 2 RU
Depth: 9" (22.86 cm)

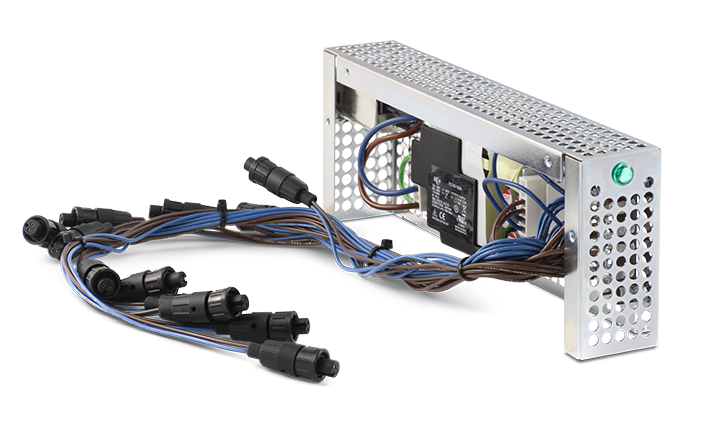

DRM Power Supply Assembly

Spare Power Supply for DRM Frame
A spare power assembly for the DRM frame. ROHS compliant.

$475 US MSRP

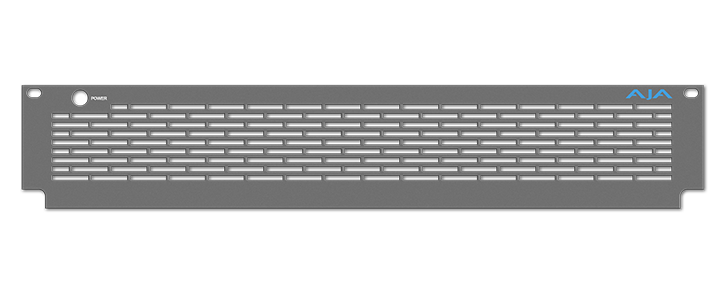

DRM Front Panel

Front Panel cover for the DRM Frame
DRM front panel for the DRM frame provides a cover to protect devices within the frame and provides appropriate airflow for thermal cooling.

$145 US MSRP

Industry Leading Support

AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your Mini-Converter installation, configuration, operation or encounter any technical issue, AJA Support will work with you to get up and running.

Mini-Converter products are covered by a generous five year warranty. Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.

Tech Specs

Print Tech Specs

User Interface

Mounting slots for up to 12 AJA Mini-Converters*

*Some Mini-Converters require two slots.

Size (w x d x h)

19.0" x 9.0" x 1.75" (48.26 x 22.86cm x 4.44 cm)

Note: 3-RU of rack space is required if any of the largest Mini-Converters are installed.

Power

Universal 100-240V, 50/60Hz power input
Twelve separate +5V DC regulated outputs (hard-wired to power supply)
Power Consumption: 50 Watts maximum

Note: The total power required by all the installed Mini-Converters must be less than the DRM frame maximum of 50 Watts. Refer to the individual Mini-Converter specifications, available on the AJA website and in each converter’s documentation, to calculate the total power for your DRM’s converter configuration. Ensure the total power required for the converters you install does not exceed 50 Watts. Some DRM slots may need to be left empty to stay within this limit.

Environment

Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
Operating Altitude: <2,500 meters (<8,000 feet)
