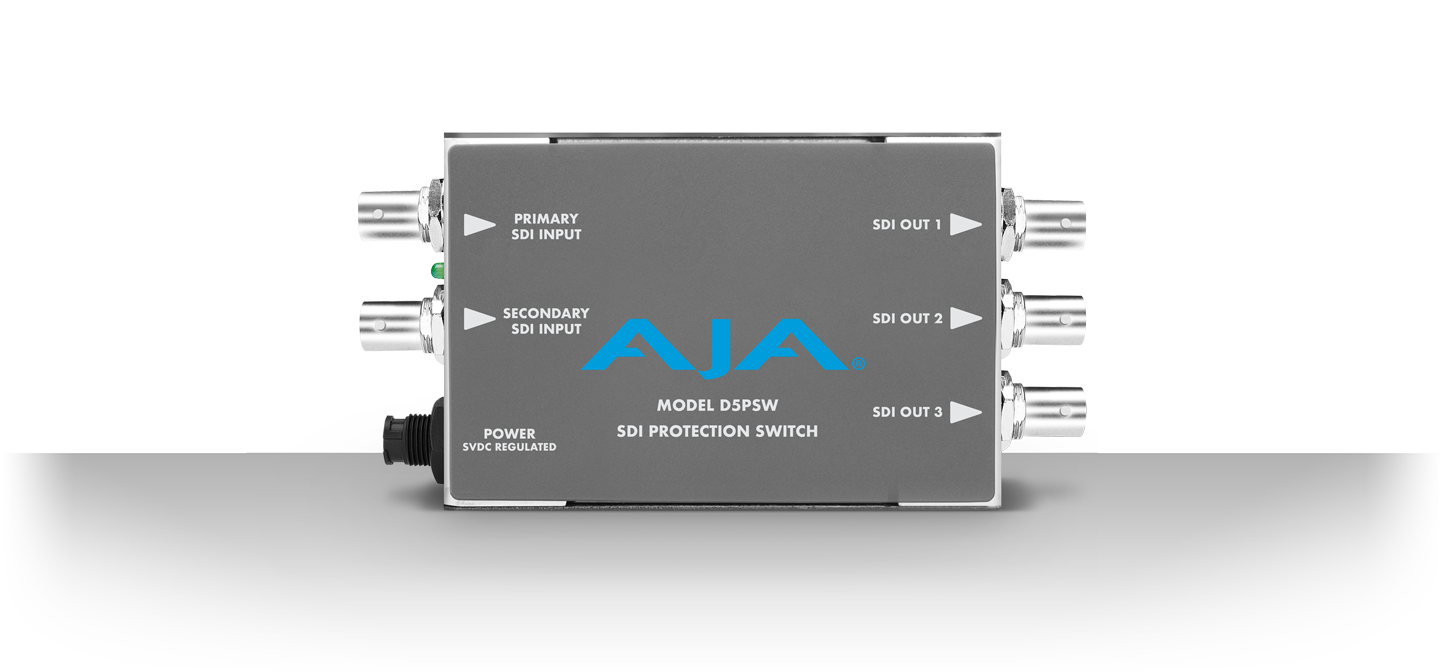

D5PSW

SDI Protection Switch

D5PSW is no longer available. For more information about AJA Mini Converters please visit the Mini-Converters Family page.


Tech Specs


Formats

• 143, 177, 270, 360 Mb SMPTE 259, auto select


Inputs

• 2 SDI (SMPTE 259M), 2 x BNC


Outputs

• 3 SDI (SMPTE 259M), 3 x BNC
• Equalizing, Reclocking


Size (w x d x h)

• 5.1" x 1.8" x 1.0" (131mm x 44mm x25 mm)


Power

• +5V DC regulated power, 4 Watts. power supply required, included with purchase


Environment

• Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
• Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
