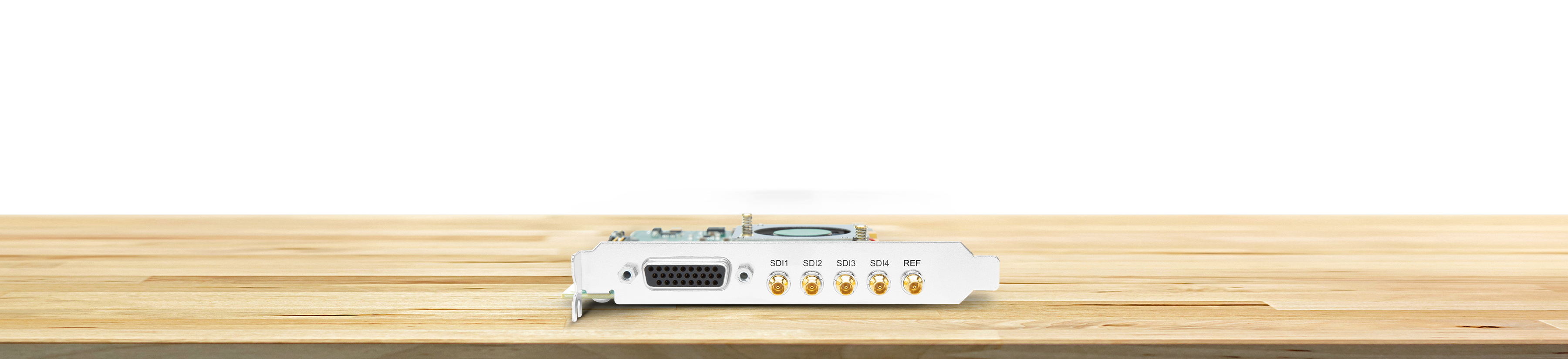

Corvid 24

Corvid 24

Four Channels of Reliable AJA Quality I/O

Compatibility Developer Sign Up

$1,895 US MSRP*

* Pricing is for US only. International pricing will vary.

Overview

Take the next step in multi-channel video and audio I/O with Corvid 24. Corvid 24 is the intermediate solution for high density I/O, supporting up to 4 independent* channels of capture or output, with separate LTC, embedded 24-bit audio, and metadata for each channel. Or all four connections can be used to support full 4K; the choice is yours. And with multiple operating system support, Corvid 24 will work in almost any environment.

Features

  • 4K/UltraHD/2K up to 25p, HD/SD up to 60p
  • 4x bidirectional 3G-SDI spigots with 16-channel embedded audio
  • 2-In/2-Out mode supporting dual video + key or dual down-stream keyers
  • Failover bypass relays with watchdog timers (2-In/2-Out mode only)
  • RGB 4:4:4 8-bit, YCbCr 4:2:2 10-bit workflows supported
  • 2x independent Mixer/Keyer widgets.
  • 2x independent 16-ch 48 kHz SDI embedded audio I/O engines
  • 4K Closed Caption Support
  • Reference/LTC Input on card (Analog black burst or Tri-level)

4-Lane PCIe 2.0 Card for 8/10-bit Uncompressed with 4-Channels I/O Digital 3G, HD, SD-SDI I/O and Bypass Relays for Video Loop Out

Take the next step in multi-channel video and audio I/O with Corvid 24. Supporting four channels of capture or output with separate LTC, embedded 24-bit audio and metadata for each channel all on a single PCIe card, Corvid 24 is the solution for high density I/O. All four connections can also be used to support full 4K I/O. The choice is yours. And with multiple operating system support, Corvid 24 will work in almost any environment.

Powerful Platforms for
Development Partners

AJA's Developer Program allows partner companies to incorporate AJA products into their systems. By utilizing existing, proven video I/O devices, Developer Partners leverage AJA's expertise to develop and support these technologies, saving money and getting their integrated products to market more quickly.

Developer Sign Up

Industry Leading Support

AJA’s technical support is recognized as among the best in the industry and is available to all AJA customers. If you need assistance with any aspect of your Corvid installation, configuration, operation or encounter any technical issue,  AJA Support will work with you to get up and running.

Corvid products are covered by a generous three year warranty. Please see the individual Product’s Manual for additional specifics around warranty conditions for the product itself.


Tech Specs


Video Formats

  • (4K) 4096 x 2160p 23.98, 24, 25
  • (UltraHD) 3840 x 2160p 23.98, 24, 25
  • (2K) 2048 x 1080p 23.98, 24, 25
  • (2K) 2048 x 1080PsF 23.98, 24, 25
  • (HD) 1080p 23.98, 24, 25, 29.97, 30, 50 A/B, 59.94 A/B, 60 A/B
  • (HD) 1080PsF 23.98, 24, 25, 29.97, 30
  • (HD) 1080i 50, 59.94, 60
  • (HD) 720p 50, 59.94, 60
  • (SD) 625i 50
  • (SD) 525i 59.94

Video Input Digital

  • 3G-SDI
  • SMPTE-259/292/296/424

Video Output Digital

  • 3G-SDI
  • SMPTE-259/292/296/424

Audio Input Digital

  • 16-channel 24-bit SDI embedded, 48 kHz synchronous

Audio Output Digital

  • 16-channel 24-bit SDI embedded, 48 kHz synchronous

BNC

  • 4x 3G-SDI
    • Din 1.0/2.3

Electrical Interface

  • 4-lane PCIe 2.0

Size (w x d x h)

  • 0.71" x 6.57" x 3.86" (18.04 x 166.88 x 98.05 mm)

Weight

  • 0.7 lbs (0.4 kg)

Power

  • 12w typical, 15w maximum

Environment

  • Safe Operating Temperature: 0 to 40 C (32 to 104 F)
  • Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
  • Operating Relative Humidity: 10-90% noncondensing
  • Operating Altitude: <3,000 meters (<10,000 feet)
