Unparalleled Real-Time 4K

This product has been discontinued.

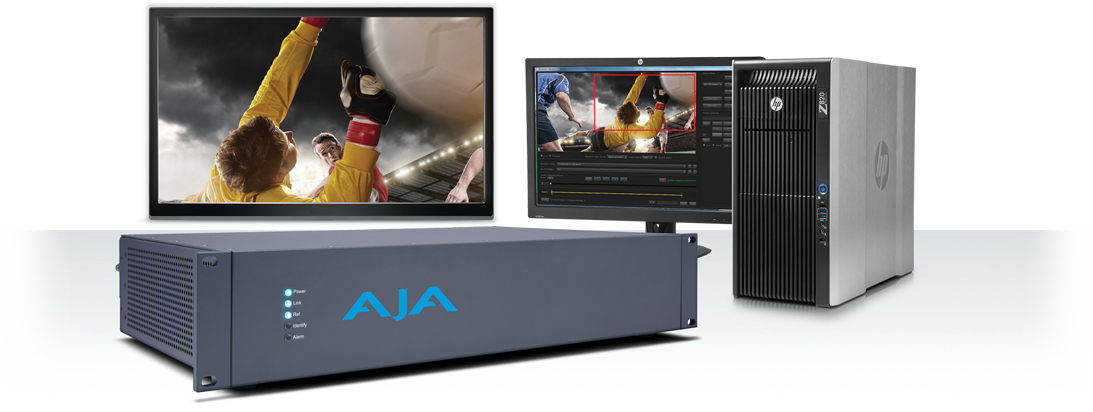

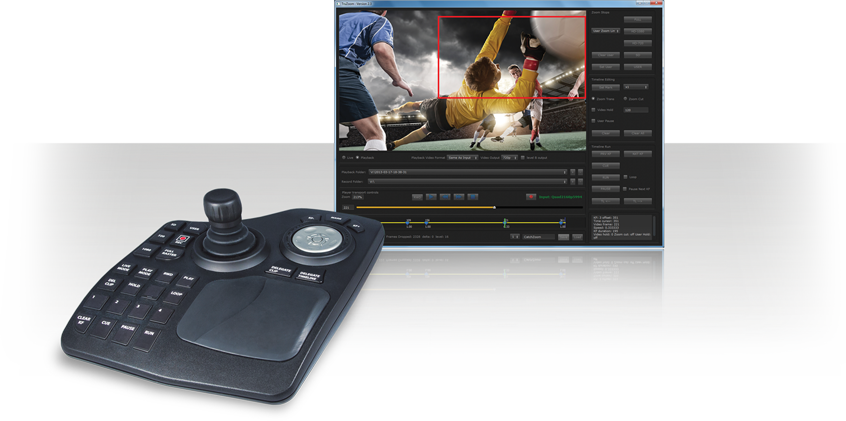

AJA’s TruZoom™ application and Corvid Ultra hardware come together in a revolutionary system for unparalleled real-time 4K recording, scaling, playback, and high-quality Region of Interest selection with AJA TruScale image processing and complete timeline-based keyframe control.

$21,485 US MSRP*

* Pricing is for US only. International pricing will vary.


Tech Specs


TruZoom™ System Configuration Guide

TruZoom has a very specific set of system requirements to ensure proper operation of the application. The currently supported components and configurations are listed below. You can choose a supported workstation and storage configuration to create a customized TruZoom system.

This webpage contains the most up-to-date information regarding TruZoom system configuration. Additional configurations will be added here as they are qualified by AJA.

Workstations

Several PCIe cards will need to be installed in the TruZoom system such as the GPU, Corvid Ultra HIB and the RAID controllers.

HP z820

The HP z820 Dual Proc system with Windows 7 installed is certified for use with TruZoom. There are several qualified configurations. Choose one of the options from the following chart and install the cards into the recommended PCIe slots on the system’s motherboard.

  Option 1 Option 2 Option 3
Slot 1 Empty Empty Empty
Slot 2 GPU GPU GPU
Slot 3 Empty/Covered by GPU Empty/Covered by GPU Empty/Covered by GPU
Slot 4 Corvid Ultra HIB Fiber or External SAS controller Fusion-IO card - A
Slot 5 Empty Empty Fusion-IO card - B
Slot 6 Fiber or External SAS controller Corvid Ultra HIB Corvid Ultra HIB
Slot 7 Empty Empty Empty

Storage Options

There are several options for local storage with TruZoom. Each of the approved options are summarized here. Choose one storage configuration and install the appropriate hardware in the TruZoom system.

Internal SSD RAID Configuration

RAID Controller

The tested and approved RAID Controller for TruZoom is the LSI 9271-8iCC Raid Controller. Detailed product information can be found on the LSI website:

http://www.lsi.com/products/raid-controllers/pages/megaraid-sas-9271-8iCC.aspx

The LSI RAID controller must be configured for RAID 5 as detailed in the LSI Configuration section below.

Drive Tray Module

The drives for the RAID must be housed in a special SAS/SATA drive tray module. The Athena Power drive tray module is the approved device for this configuration:

http://athenapower.com/node/99

Each drive tray can house four (4) SSD drives. Since a total of eight drives are needed, two drive trays are required to be installed.

Drives

For local storage of video files, eight (8) Intel SSD drives are required. Each drive must have a capacity of 240GB or higher and all drives in the RAID must be of the same capacity. Intel SSD drives with capacities below 240GB are not supported at this time.

http://www.intel.com/content/www/us/en/solid-state-drives/solid-state-drives-dc-s3500-series.html

SAS Cables

Two SAS/SATA fanout cables are required to connect the LSI RAID controller to the Intel SSD drives housed in the two Athena Power drive trays. These cables can be sourced from several online retailers using the following information:

SFF-8087 (device) to 4xSATA (host) Fanout Cable.

Internal Fusion-IO Configuration

Fusion-IO Cards

Video storage can be supported using two Fusion-IO 1.65TB ioFX cards. Details on these storage cards can be found on the Fusion-IO website:

http://www.fusionio.com/products/iofx/

Install the two Fusion-IO cards in the appropriate slots based on the workstation options shown above and follow the manufacturer’s installation instructions.

External Fiber Channel RAID Configuration

Fiber Channel Card

Video storage can be supported using an external fiber channel RAID system. For this configuration, the approved card is the ATTO 84EN fiber channel card.

http://www.attotech.com/products/product.php?cat=1&scat=1&sku=CTFC-84EN-000

Install the card in the appropriate slot based on the workstation options shown above and follow the manufacturer’s installation instructions.

External Drive Chassis

The external drive chassis for use in this configuration is the Promise VTrak E830f RAID subsystem.

http://www.promise.com/storage/raid_series.aspx?region=en-US&m=960&sub_m=sub_m_2&rsn1=1&rsn3=37

Drives

For this configuration, twelve (12) Intel SSD drives are required to populate the external drive chassis. Two models are supported; Intel S3500 and Intel S3700.

If the S3500 drives are used, all drives must be of the same capacity and each drive must be the 240GB capacity or larger.

If the S3700 drives are used, all drives must be of the same capacity and each drive must be the 400GB capacity or larger.

http://www.intel.com/content/www/us/en/solid-state-drives/solid-state-drives-dc-s3500-series.html

http://www.intel.com/content/www/us/en/support/solid-state-drives/data-center-ssds/intel-ssd-dc-s3700-series.html?wapkw=s3700+series

External Direct Attached SAS RAID Configuration

RAID Controller

The tested and approved RAID Controller for this configuration is the LSI 9286cv-8eCC Raid Controller. Detailed product information can be found on the LSI website:

http://www.lsi.com/products/raid-controllers/pages/megaraidsas-9286cv-8ecc.aspx

The LSI RAID controller must be configured for RAID 5 as detailed in the LSI Configuration section below.

External Drive Chassis

The external drive chassis for use in this configuration is the AIC 24 bay XJ3000-2s24s dual port single expander chassis.

http://aicipc.com/ProductDetail.aspx?ref=XJ3000-2242s

Drives

For this configuration, twenty-four (24) Intel SSD drives are required. Two models are supported; Intel S3500 and Intel S3700.

If the S3500 drives are used, all drives must be of the same capacity and each drive must be the 240GB capacity or larger.

If the S3700 drives are used, all drives must be of the same capacity and each drive must be the 400GB capacity or larger.

http://www.intel.com/content/www/us/en/solid-state-drives/solid-state-drivesdc-s3500-series.html

http://www.intel.com/content/www/us/en/support/solid-state-drives/data-center-ssds/intel-ssd-dc-s3700-series.html?wapkw=s3700+series

SAS Cables

Two SAS/SATA fanout cables are required to connect the RAID controller to the external drive chassis. These cables can be sourced from several online retailers using the following information:

SFF-8087 (device) to 4xSATA (host) Fanout Cable.

Storage Capacities

For 10-bit files at a UltraHD resolution of 3840x2160 and 60fps, total record times in minutes for the qualified RAID configurations are as follows:

Note: Times are based on a RAID 5 configuration. You may get more time using RAID 0.

  Record Time (minutes)
  8-Drive RAID 12-Drive RAID 24-Drive RAID
SSD Size RAW YUV RAW YUV RAW YUV
240GB 37 19 74 37 112 57
300GB 46 24 93 47 140 71
480GB 74 38 149 76 223 114
600GB 93 47 186 94 279 142
800GB 124 63 248 126 372 190

RAID Configuration

LSI RAID CONTROLLER

The following steps will configure the drive array to ensure proper performance with the TruZoom application. For more detailed configuration information, refer to the TruZoom Installation and Operation Manual.

After installing the LSI driver, open the LSI MegaRaid Management application

Step 1

Create a new Virtual Drive

Step 2

Select Advanced options

Step 3

Select Raid 5 with Data protection Disabled, Add drives and Create Drive group

Step 4

Select Fast Initialize, 64K Stripe Size and Always Write Back for Write Policy

Step 5

Select Yes to the Always Write Back selection for Write Policy

Step 6

Verify setting in the summary

Step 7
