System Configuration

Legacy Support Systems

KONA for PC Supported System Configurations

The AJA support and engineering team target only Enterprise Class Workstations. The slot placement is based on an engineering analysis of the motherboard for performance and available bandwidth. These are the required HD / 2K workflow configurations for the KONA product line.

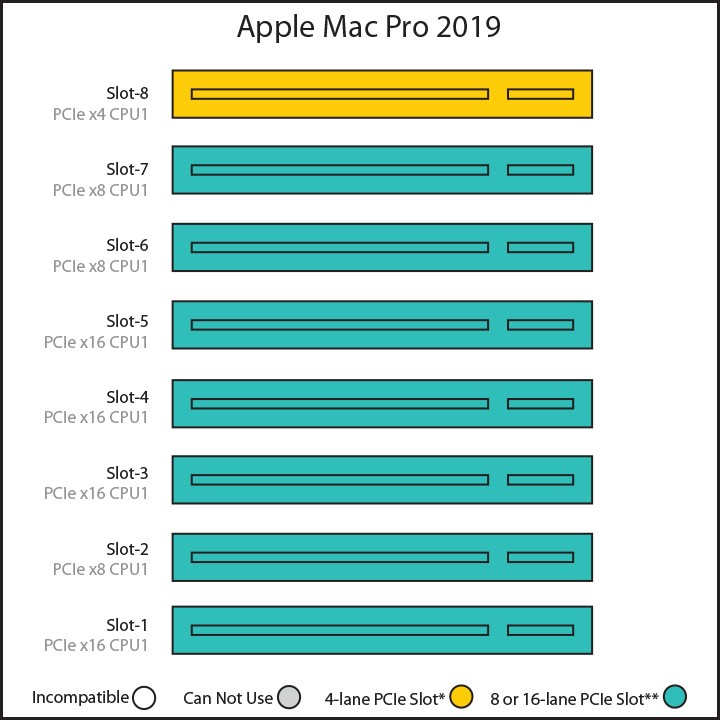

Expansion Slot Placement for: Mac Pro 2019



List of AJA supported PCIe cards:
KONA 5, KONA 4, KONA HDMI, KONA 1 and KONA LHi

List of AJA supported Thunderbolt devices:
Io 4K Plus, Io 4K

NOTES:

  • Any slot will work with an 8-lane card, but with slots 5,6,7 preferred.
  • If using an Apple After Burner card that must be placed in slot 5 (since it is a 16-lane card).
  • AJA KONA LHi is physically accommodated by the new Mac Pro in slots 3, 4 and 5. However when running with an Afterburner card in slot 5, you will need to utilize slots 3 or 4. In the event that those slots are utilized for a third party graphics card in combination with an Afterburner card, this will preclude the use of KONA LHi.

Special Note for ordering KONA 5 for use with Mac Pro 2019:

There are two choices:

  • PN KONA-5-R0 uses ATX power, and so can be used in other relevant Mac or PC host systems. However, a 3rd party ATX cable kit for the Mac Pro 2019 will be required: Link Here.
  • PN: KONA-5-R0-S01 will use PCIe slot power in Mac Pro 2019, but this KONA model should not be used in any other Mac or PC host system.

*4-lane PCIe slots can support the following AJA cards: KONA 1

**8-lane or 16-lane Computer PCIe slots can support the following AJA cards: KONA 5, KONA 4, KONA HDMI

Click to Download PDF

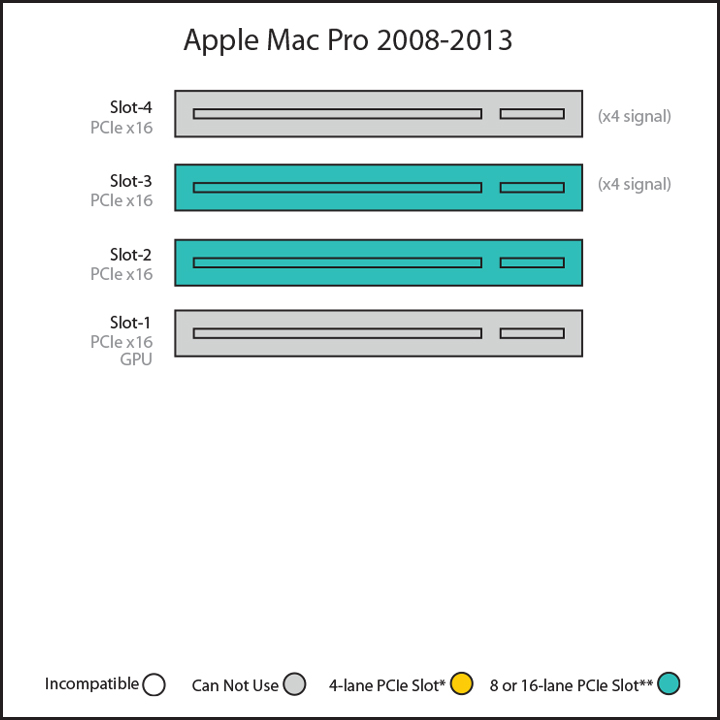

Expansion Slot Placement for: Mac Pro 2008-2013 (includes Nehalem and Westmere versions)



For optimal performance of the KONA 4 and KONA LHe Plus, AJA recommends slot 2. See Option 1 for slot placement. The KONA LHi operates properly in slots 2 and 3.

Option 1
Slot 4 PCI-e 16x (Set to 4x) Empty/Storage
Slot 3 PCI-e 16x (Set to 4x) Empty/Storage
Slot 2 PCI-e 16x KONA 4, KONA LHi, KONA LHe Plus
Slot 1 PCI-e 16x GPU

Option 2
Slot 4 PCI-e 16x (Set to 4x) Empty/Storage
Slot 3 PCI-e 16x (Set to 4x) KONA 4, KONA LHi, KONA LHe Plus
Slot 2 PCI-e 16x Empty/Storage
Slot 1 PCI-e 16x GPU

Click to Download PDF

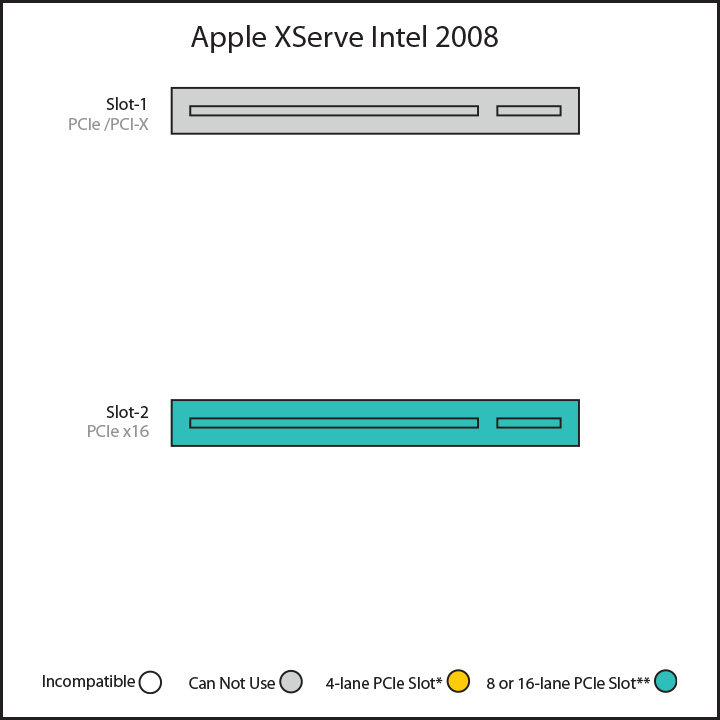

Expansion Slot Placement for: XServe Intel (2008)



AJA only supports the PCIe version of KONA cards in slot 2 of the 2008 Intel XServe.

Option 1
Slot 1 PCIe / PCI-X Empty / Storage
Slot 2 PCI-e 16x KONA LHi, KONA LHe Plus

Click to Download PDF


Expansion Slot Placement for: HP Z820/Z840



Click image to enlarge

Option 1
Slot 1 Compatible, except KONA 3G which is too long for this location
Slot 2 Compatible, but typically used by Graphics Card
Slot 3 Compatible, Only available with two CPU's installed.
Slot 4 Compatible, Only available with two CPU's installed.
Slot 5 Not Recommended
Slot 6 Recommended
Slot 7 Not Compatible


Expansion Slot Placement for: HP Z620/Z640



Click image to enlarge

Option 1
Slot 1 Not Recommended
Slot 2 Compatible, but typically used by Graphics Card
Slot 3 Not Recommended
Slot 4 Compatible
Slot 5 Recommended
Slot 6 Not Compatible


Expansion Slot Placement for: HP Z420/Z440



Click image to enlarge

Option 1
Slot 1 Not Recommended
Slot 2 Compatible, but typically used by Graphics Card
Slot 3 Not Recommended
Slot 4 Compatible
Slot 5 Recommended
Slot 6 Not Compatible

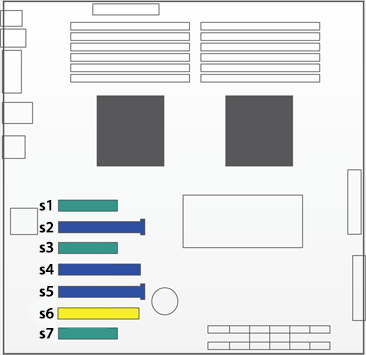

Expansion Slot Placement for: HP Z800



Click image to enlarge

At this time AJA supports the KONA 3, LHi & LSe for 2K / HD / SD editing on the HP Z800 Workstation. Slot placement for the LSe is not as crucial for SD editing.

Option 1
Slot 1 Storage / Empty
Slot 2 GPU
Slot 3 Storage / Empty
Slot 4 3 / LHi
Slot 5 Storage / Empty
Slot 6 Other / Empty
Slot 7 Storage / Empty

Option 2
Slot 1 Storage / Empty
Slot 2 GPU
Slot 3 Storage / Empty
Slot 4 Storage / Empty
Slot 5 3 / LHi
Slot 6 Other / Empty
Slot 7 Storage / Empty


Expansion Slot Placement for: HP Z600



Click image to enlarge

At this time AJA supports the KONA 3, LHi & LSe for 2K / HD / SD editing on the HP Z600 Workstation. Slot placement for the LSe is not as crucial for SD editing.

Option 1
Slot 1 Storage/Empty
Slot 2 GPU
Slot 3 Storage/Empty
Slot 4 3 / LHi
Slot 5 Empty
Slot 6 Empty

Option 2
Slot 1 LHi
Slot 2 GPU
Slot 3 Storage/Empty
Slot 4 Storage/Empty
Slot 5 Empty
Slot 6 Empty


Expansion Slot Placement for: Dell T7600/T7610/T7910



Click image to enlarge

Slots 1 and 2 share bandwidth in this system so, other high bandwidth cards like a storage controller or Red rocket should go on one of these slots, and the KONA can go on slot CPU2_SLOT2. If the KONA card goes in slot 1 or 2, the other slot should NOT contain a high performance card. Example: If a KONA card is in slot 1, Slot 2 should only be used for a low performance card like a 1x PCIe card, or not used at all.

Option 1
CPU2_SLOT1 Not Compatible
CPU2_SLOT2 Recommended
Slot 1 Compatible
Slot 2 Compatible
Slot 3 Compatible
Slot 4 Compatible
Slot 5 Not Compatible


Expansion Slot Placement for: Dell T5600/T5610/T7810



Click image to enlarge

Option 1
Slot 1 Recommended
Slot 2 Typically used by Graphics Card
Slot 3 Not Recommended
Slot 4 Recommended
Slot 5 Not Recommended
Slot 6 Not Compatible


Expansion Slot Placement for: Dell T3600/T3610/T5810



Click image to enlarge

Option 1
Slot 1 Recommended
Slot 2 Typically the GPU slot
Slot 3 Not Recommended
Slot 4 Recommended
Slot 5 Recommended
Slot 6 Not Compatible


Expansion Slot Placement for: Dell T7500



Click image to enlarge

At this time AJA supports the KONA 3, LHi & LSe for 2K / HD / SD editing on the T7500 Workstation. Slot placement for the LSe is not as crucial for SD editing.

Based on chipset similarities the T5500 should also work with the same 3 / LHi slot configurations

Option 1
Slot 1 Storage / Empty
Slot 2 GPU
Slot 3 Storage / Empty
Slot 4 3 / LHi
Slot 5 Storage / Empty
Slot 6 Other / Empty
Slot 7 Storage / Empty

Option 2
Slot 1 Storage / Empty
Slot 2 GPU
Slot 3 3 / LHi
Slot 4 Storage / Empty
Slot 5 Storage / Empty
Slot 6 Other / Empty
Slot 7 Storage / Empty


Legacy Configurations

The succeeding system configuration diagrams represent legacy configurations only.

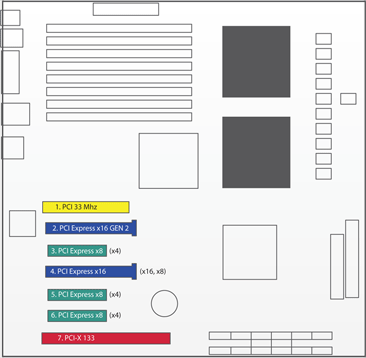

Expansion Slot Placement for: HP XW8600



Click image to enlarge

Option 1
Slot 1 PCI 33Mhz
Slot 2 PCI Express x16 GEN 2 3 / LHi
Slot 3 PCI Express 8 (x4) Empty
Slot 4 PCI Express x16 (x16, x8) Storage
Slot 5 PCI Express x8 (x4) GPU

Option 2
Slot 1 PCI 33Mhz
Slot 2 PCI Express x16 GEN 2 GPU
Slot 3 PCI Express 8 (x4) Storage / Empty
Slot 4 PCI Express x16 (x16, x8) 3 / LHe
Slot 5 PCI Express x8 (x4) Storage / Empty
Slot 6 PCI Express x8 (x4) Storage / Empty
Slot 7 PCI-X 133 Storage / Empty

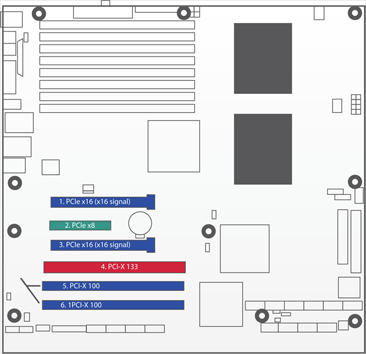

Expansion Slot Placement for: HP XW 8400 / Boxx 8300 / TYAN S2696



Click image to enlarge

Option 1
Slot 1 PCIe x16 (x16 signal)
Slot 2 PCIe x8 GPU
Slot 3 PCIe x16 (x16 signal) Storage
Slot 4 PCI-X 133 3 / LHe
Slot 5 PCI-X 100 Storage
Slot 6 1PCI-X 100 Storage

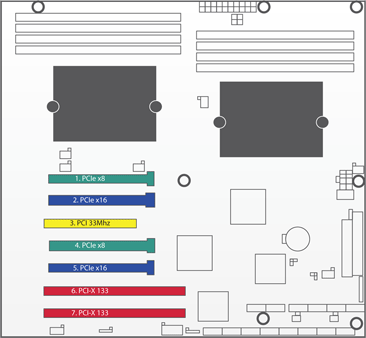

Expansion Slot Placement for: HP XW 9400 / Boxx 7500 / TYAN S2915



Click image to enlarge

Option 1
Slot 1 PCIe x8 Storage
Slot 2 PCIe x16 GPU
Slot 3 PCI 33Mhz
Slot 4 PCIe x8 Storage
Slot 5 PCIe x16 3 / LHe
Slot 6 PCI-X 133 Storage
Slot 7 PCI-X 133 Storage


Expansion Slot Placement for: HP XW 8200 / TYAN S2676



Click image to enlarge

Option 1
Slot 1 PCI 33Mhz
Slot 2 PPCIe x16 GPU
Slot 3 PCI 33Mhz
Slot 4 PCIe x4 3/LHe
Slot 5 PCI-X 133 Storage
Slot 6 PCI-X 100 Storage
Slot 7 PCI-X 100 Storage

Option 2
Slot 1 PCI 33Mhz
Slot 2 PCIe x16 GPU
Slot 3 PCI 33Mhz
Slot 4 PCIe x4 Storage
Slot 5 PCI-X 133 3 / LH
Slot 6 PCI-X 100 Storage
Slot 7 PCI-X 100 Storage

Option 3
Slot 1 PCI 33Mhz
Slot 2 PCIe x16 GPU
Slot 3 PCI 33Mhz
Slot 4 PCIe x4 Storage
Slot 5 PCI-X 133 Storage
Slot 6 PCI-X 100 3 / LH
Slot 7 PCI-X 100 Empty

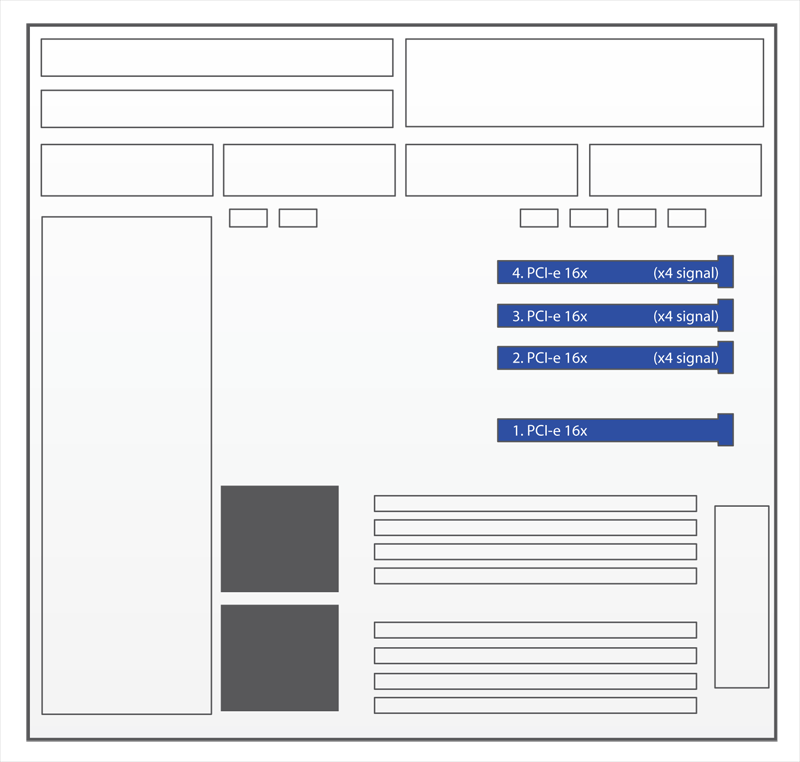

Expansion Slot Placement for: MacPro (pre-2008)



Expansion Slot Placement for: MacPro (pre-2008)

Click image to enlarge

If you are unsure of the slot configuration as used in your machine, it can be determined by using the Expansion Slot Utility application. This application is found in the following directory location on your Mac Pro: System/Library/CoreServices. The correct configuration is with the slots configured as follows:

x4 for slot 4
x4 for slot 3
x1 for slot 2
x16 for slot 1

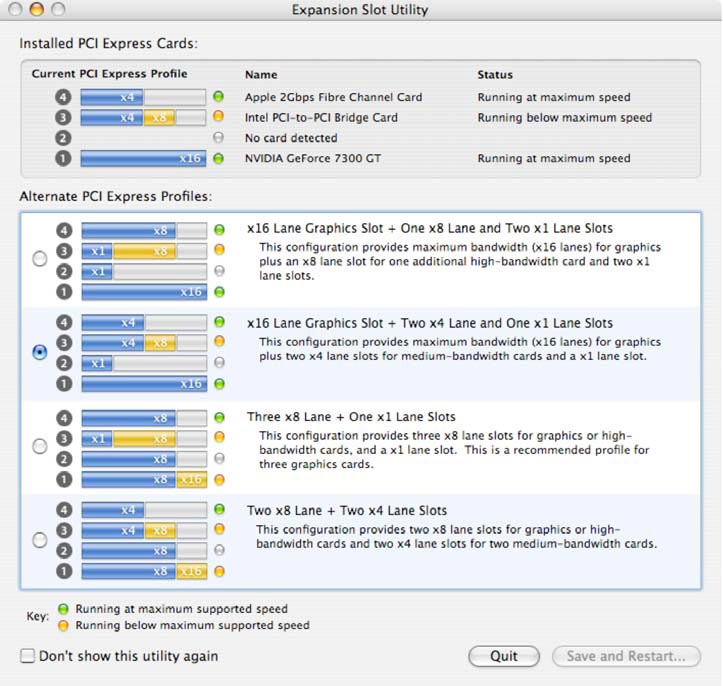

To see an image of the appropriate selection in the Expansion Slot Utility application,
CLICK HERE

Option 1
Slot 4 PCI-e 16x (Set to 4x) Empty/Storage
Slot 3 PCI-e 16x (Set to 4x) KONA 3/3G/LHi/LHe
Slot 2 PCI-e 16x (Set to 1x) Empty
Slot 1 PCI-e 16x GPU

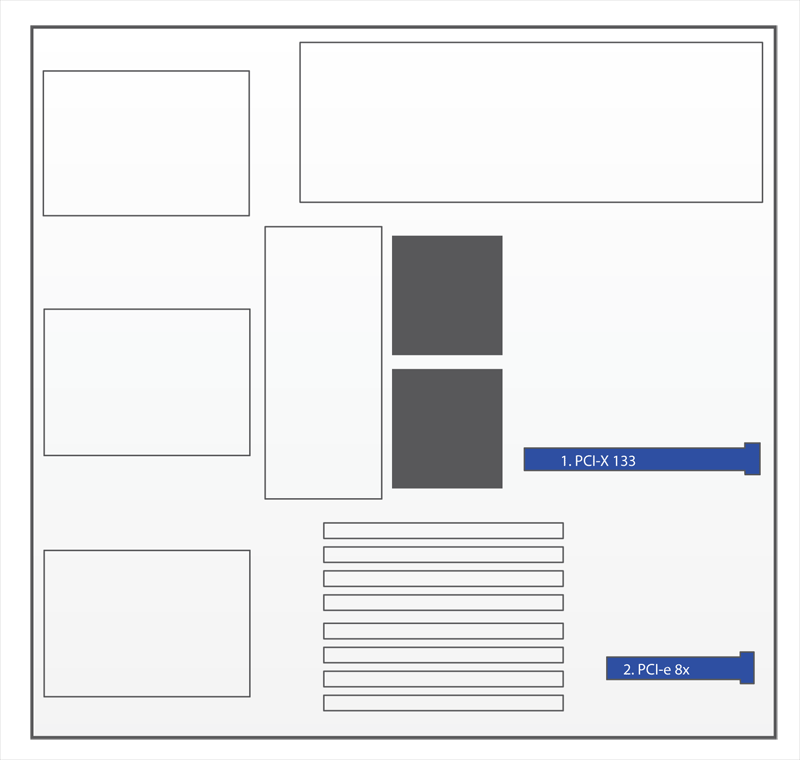

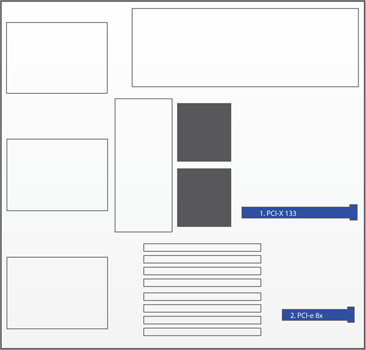

Expansion Slot Placement for: XServe Intel (pre-2008)



Expansion Slot Placement for: XServe Intel (pre-2008)

Click image to enlarge

AJA only supports the PCI-X and PCI versions of the KONA cards in slot 1 of the Intel XServe. The PCIe versions of the KONA cards should not be used in the Intel XServe. The AJA PCI-X and PCI cards (KONA3X, KONALH) can be used in the Apple Intel XServe with the Apple PCI-X riser, P/N 922-7860.

Option 1
Slot 1 PCI-X 133 KONA3X / KONA LH
Slot 2 PCI-e 8x Empty / Storage

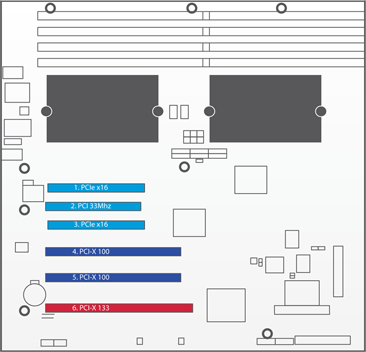

Expansion Slot Placement for: HP XW 9300 / Boxx 7400 / TYAN S2895



Click image to enlarge

Option 1
Slot 1 PCIe x16 GPU
Slot 2 PCI 33Mhz
Slot 3 PCIe x16 3/LHe
Slot 4 PCI-X 100 Storage
Slot 5 PCI-X 100 Storage
Slot 6 PCI-X 133 Storage

Option 2
Slot 1 PCIe x16 GPU
Slot 2 PCI 33Mhz
Slot 3 PCIe x16 Storage
Slot 4 PCI-X 100 3 / LH
Slot 5 PCI-X 100 Empty
Slot 6 PCI-X 133 Storage

Option 3
Slot 1 PCIe x16 GPU
Slot 2 PCI 33Mhz
Slot 3 PCIe x16 Storage
Slot 4 PCI-X 100 Storage
Slot 5 PCI-X 100 Storage
Slot 6 PCI-X 133 3 / LH

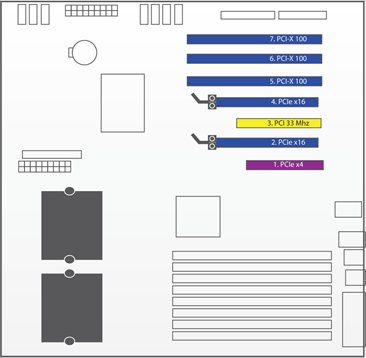

Expansion Slot Placement for: Dell T7400



Click image to enlarge

Option 1
Slot 1 PCIe x4 Storage / Empty
Slot 2 PCIe x16 GPU
Slot 3 PCI 33Mhz Empty
Slot 4 PCIe x16 Storage / Empty / SLI
Slot 5 PCI-X 100 Empty
Slot 6 PCI-X 100 Empty
Slot 7 PCI-X 100 3 / LH

Option 2
Slot 1 PCIe x4 Storage / Empty
Slot 2 PCIe x16 GPU
Slot 3 PCI 33Mhz Empty
Slot 4 PCIe x16 3 / LHe
Slot 5 PCI-X 100 Storage / Empty
Slot 6 PCI-X 100 Storage / Empty
Slot 7 PCI-X 100 Storage / Empty

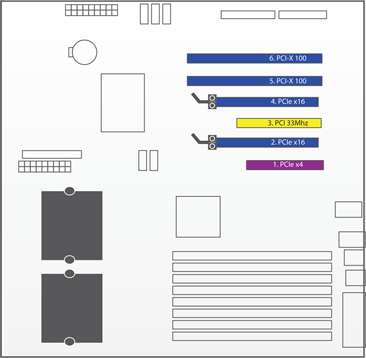

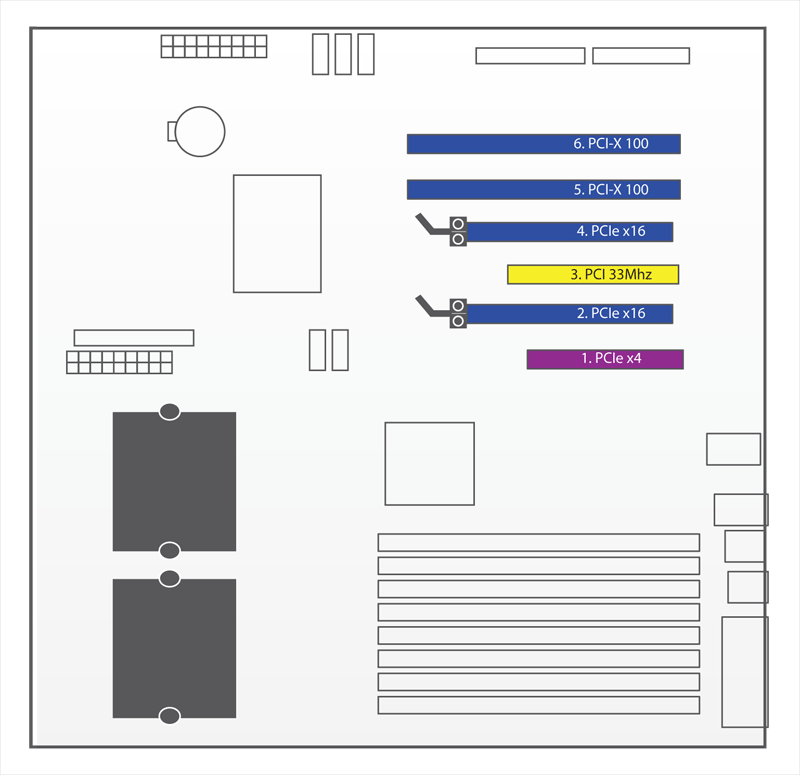

Expansion Slot Placement for: Dell T5400



Click image to enlarge

Option 1
Slot 1 PCIe x4 Storage / Empty
Slot 2 PCIe x16 GPU
Slot 3 PCI 33Mhz Empty
Slot 4 PCIe x16 Storage / Empty / SLI
Slot 5 PCI-X 100 Empty
Slot 6 PCI-X 100 3 / LH

Option 2
Slot 1 PCIe x4 Storage / Empty
Slot 2 PCIe x16 GPU
Slot 3 PCI 33Mhz Empty
Slot 4 PCIe x16 3 / LHe
Slot 5 PCI-X 100 Storage / Empty
Slot 6 PCI-X 100 Storage / Empty

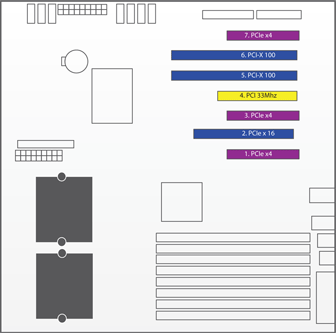

Expansion Slot Placement for: Dell Precision 690



Click image to enlarge

Option 1
Slot 1 PCIe x4 Storage
Slot 2 PCIe x16 GPU
Slot 3 PCIe x4 3/LHe
Slot 4 PCI 33Mhz
Slot 5 PCI-X 100 Storage
Slot 6 PCI-X 100 Storage
Slot 7 PCIe x4 Storage

Option 2
Slot 1 PCIe x4 Storage
Slot 2 PCIe x16 GPU
Slot 3 PCIe x4 Storage
Slot 4 PCI 33Mhz
Slot 5 PCI-X 100 Empty
Slot 6 PCI-X 100 3 / LH
Slot 7 PCIe x4 Storage

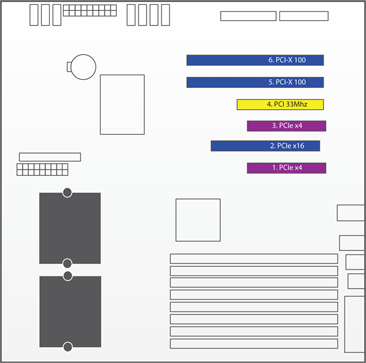

Expansion Slot Placement for: Dell Precision 490


Click image to enlarge

Option 1
Slot 1 PCIe x4 SAS Card
Slot 2 PCIe x16 GPU
Slot 3 PCIe x4 3/LHe
Slot 4 PCI 33Mhz
Slot 5 PCI-X 100 Storage
Slot 6 PCI-X 100 Storage

Option 2
Slot 1 PCIe x4 SAS Card
Slot 2 PCIe x16 GPU
Slot 3 PCIe x4 Storage
Slot 4 PCI 33Mhz
Slot 5 PCI-X 100 Empty
Slot 6 PCI-X 100 3 / LH

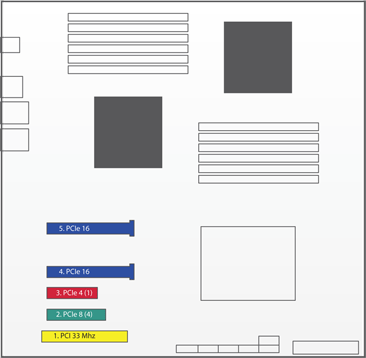

Expansion Slot Placement for: Boxx 8500



Click image to enlarge

At this time AJA supports the KONA 3, LHi & LSe for 2K / HD / SD editing on the Boxx 8500 Workstation. Slot placement for the LSe is not as crucial for SD editing.

Option 1
Slot 1 PCI 33Mhz Empty
Slot 2 PCIe 8(4) 3 / LHi
Slot 3 PCIe 4(1) Empty
Slot 4 PCIe 16 Storage / Empty
Slot 5 PCIe 16 GPU

Option 2
Slot 1 PCI 33Mhz Empty
Slot 2 PCIe 8(4) Storage / Empty
Slot 3 PCIe 4(1) Empty
Slot 4 PCIe 16 LHi
Slot 5 PCIe 16 GPU

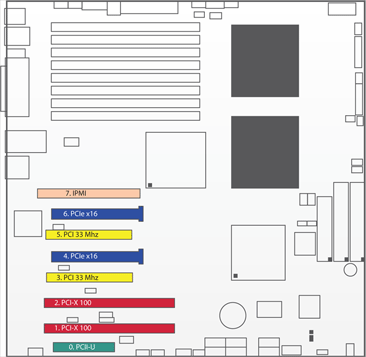

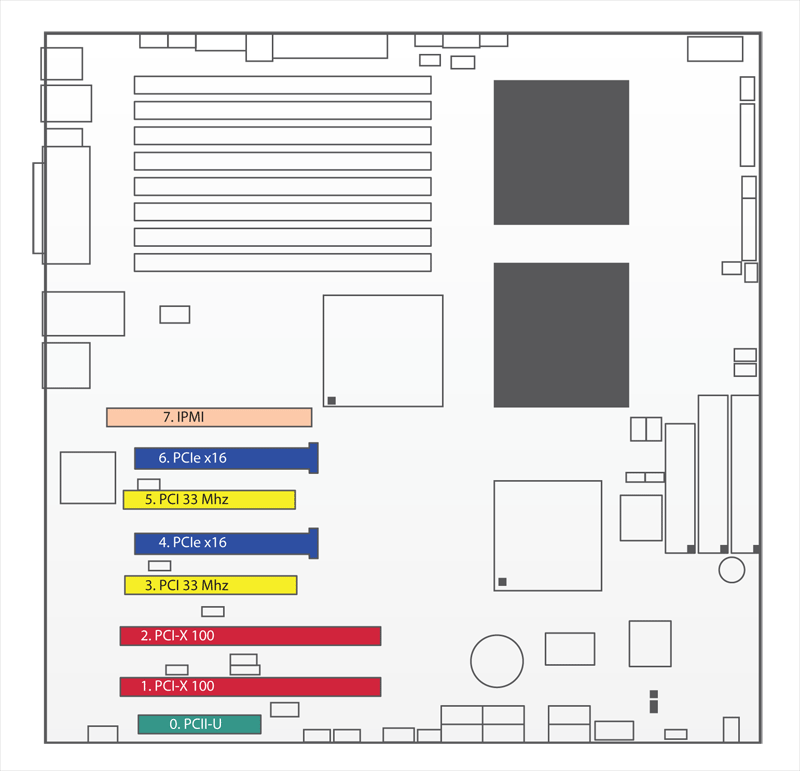

Expansion Slot Placement for: Boxx 8400 / SuperMicro X7DWA-N



Click image to enlarge

Option 1
Slot 0 PCII-U N/A
Slot 1 PCI-X 100 Storage / Empty
Slot 2 PCI-X 100 Storage / Empty
Slot 3 PCI 33Mhz Empty
Slot 4 PCIe x16 3 / LHe
Slot 5 PCI 33Mhz Empty
Slot 6 PCIe x16 GPU
Slot 7 IPMI N/A

Option 2
Slot 0 PCII-U N/A
Slot 1 PCI-X 100 3 / LH
Slot 2 PCI-X 100 Empty
Slot 3 PCI 33Mhz Empty
Slot 4 PCIe x16 Storage / Empty
Slot 5 PCI 33Mhz Empty
Slot 6 PCIe 16x GPU
Slot 7 IPMI N/A

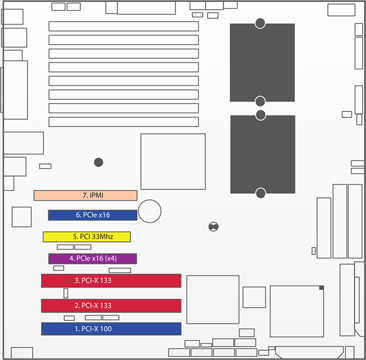

Expansion Slot Placement for: SuperMicro X7DA8 / X7DA3 / X7DAE



Click image to enlarge

Option 1
Slot 1 PCI-X 100 GPU
Slot 2 PCI-X 133
Slot 3 PCI-X 133 3 / LHe
Slot 4 PCIe x16 (x4) Storage
Slot 5 PCI 33 Mhz Storage
Slot 6 PCI-e x16 Storage
Slot 7 IPMI

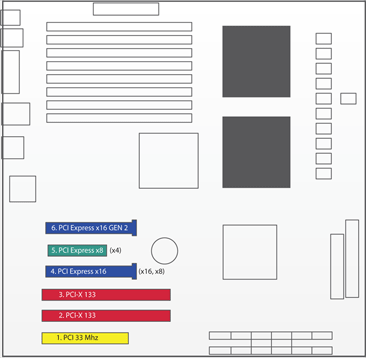

Expansion Slot Placement for: Tyan i5396



Click image to enlarge

Option 1
Slot 1 PCI 33Mhz
Slot 2 PCI-X 133 3 / LH
Slot 3 PCI-X 133 Empty
Slot 4 PCI Express x16 (x16, x8) Storage / Empty / SLI
Slot 5 PCI Express x8 (x4) Storage / Empty
Slot 6 PCI Express x16 GEN 2 GPU

Option 2
Slot 1 PCI 33Mhz
Slot 2 PCI-X 133 Storage / Empty
Slot 3 PCI-X 133 Storage / Empty
Slot 4 PCI Express x16 (x16, x8) 3 / LHe
Slot 5 PCI Express x8 (x4) Storage / Empty
Slot 6 PCI Express x16 GEN 2 GPU


Expansion Slot Placement for: HP XW8600



Click image to enlarge

Option 1
Slot 1 PCI 33Mhz
Slot 2 PCI Express x16 GEN 2 3 / LHi
Slot 3 PCI Express 8 (x4) Empty
Slot 4 PCI Express x16 (x16, x8) Storage
Slot 5 PCI Express x8 (x4) GPU

Option 2
Slot 1 PCI 33Mhz
Slot 2 PCI Express x16 GEN 2 GPU
Slot 3 PCI Express 8 (x4) Storage / Empty
Slot 4 PCI Express x16 (x16, x8) 3 / LHe
Slot 5 PCI Express x8 (x4) Storage / Empty
Slot 6 PCI Express x8 (x4) Storage / Empty
Slot 7 PCI-X 133 Storage / Empty


Expansion Slot Placement for: HP XW 8400 / Boxx 8300 / TYAN S2696



Click image to enlarge

Option 1
Slot 1 PCIe x16 (x16 signal)
Slot 2 PCIe x8 GPU
Slot 3 PCIe x16 (x16 signal) Storage
Slot 4 PCI-X 133 3 / LHe
Slot 5 PCI-X 100 Storage
Slot 6 1PCI-X 100 Storage


Expansion Slot Placement for: HP XW 9400 / Boxx 7500 / TYAN S2915



Click image to enlarge

Option 1
Slot 1 PCIe x8 Storage
Slot 2 PCIe x16 GPU
Slot 3 PCI 33Mhz
Slot 4 PCIe x8 Storage
Slot 5 PCIe x16 3 / LHe
Slot 6 PCI-X 133 Storage
Slot 7 PCI-X 133 Storage


Expansion Slot Placement for: HP XW 8200 / TYAN S2676



Click image to enlarge

Option 1
Slot 1 PCI 33Mhz
Slot 2 PPCIe x16 GPU
Slot 3 PCI 33Mhz
Slot 4 PCIe x4 3/LHe
Slot 5 PCI-X 133 Storage
Slot 6 PCI-X 100 Storage
Slot 7 PCI-X 100 Storage

Option 2
Slot 1 PCI 33Mhz
Slot 2 PCIe x16 GPU
Slot 3 PCI 33Mhz
Slot 4 PCIe x4 Storage
Slot 5 PCI-X 133 3 / LH
Slot 6 PCI-X 100 Storage
Slot 7 PCI-X 100 Storage

Option 3
Slot 1 PCI 33Mhz
Slot 2 PCIe x16 GPU
Slot 3 PCI 33Mhz
Slot 4 PCIe x4 Storage
Slot 5 PCI-X 133 Storage
Slot 6 PCI-X 100 3 / LH
Slot 7 PCI-X 100 Empty


Expansion Slot Placement for: HP XW 9300 / Boxx 7400 / TYAN S2895



Click image to enlarge

Option 1
Slot 1 PCIe x16 GPU
Slot 2 PCI 33Mhz
Slot 3 PCIe x16 3/LHe
Slot 4 PCI-X 100 Storage
Slot 5 PCI-X 100 Storage
Slot 6 PCI-X 133 Storage

Option 2
Slot 1 PCIe x16 GPU
Slot 2 PCI 33Mhz
Slot 3 PCIe x16 Storage
Slot 4 PCI-X 100 3 / LH
Slot 5 PCI-X 100 Empty
Slot 6 PCI-X 133 Storage

Option 3
Slot 1 PCIe x16 GPU
Slot 2 PCI 33Mhz
Slot 3 PCIe x16 Storage
Slot 4 PCI-X 100 Storage
Slot 5 PCI-X 100 Storage
Slot 6 PCI-X 133 3 / LH


Expansion Slot Placement for: Dell T7400



Click image to enlarge

Option 1
Slot 1 PCIe x4 Storage / Empty
Slot 2 PCIe x16 GPU
Slot 3 PCI 33Mhz Empty
Slot 4 PCIe x16 Storage / Empty / SLI
Slot 5 PCI-X 100 Empty
Slot 6 PCI-X 100 Empty
Slot 7 PCI-X 100 3 / LH

Option 2
Slot 1 PCIe x4 Storage / Empty
Slot 2 PCIe x16 GPU
Slot 3 PCI 33Mhz Empty
Slot 4 PCIe x16 3 / LHe
Slot 5 PCI-X 100 Storage / Empty
Slot 6 PCI-X 100 Storage / Empty
Slot 7 PCI-X 100 Storage / Empty


Expansion Slot Placement for: Dell T5400



Click image to enlarge

Option 1
Slot 1 PCIe x4 Storage / Empty
Slot 2 PCIe x16 GPU
Slot 3 PCI 33Mhz Empty
Slot 4 PCIe x16 Storage / Empty / SLI
Slot 5 PCI-X 100 Empty
Slot 6 PCI-X 100 3 / LH

Option 2
Slot 1 PCIe x4 Storage / Empty
Slot 2 PCIe x16 GPU
Slot 3 PCI 33Mhz Empty
Slot 4 PCIe x16 3 / LHe
Slot 5 PCI-X 100 Storage / Empty
Slot 6 PCI-X 100 Storage / Empty


Expansion Slot Placement for: Dell Precision 690



Click image to enlarge

Option 1
Slot 1 PCIe x4 Storage
Slot 2 PCIe x16 GPU
Slot 3 PCIe x4 3/LHe
Slot 4 PCI 33Mhz
Slot 5 PCI-X 100 Storage
Slot 6 PCI-X 100 Storage
Slot 7 PCIe x4 Storage

Option 2
Slot 1 PCIe x4 Storage
Slot 2 PCIe x16 GPU
Slot 3 PCIe x4 Storage
Slot 4 PCI 33Mhz
Slot 5 PCI-X 100 Empty
Slot 6 PCI-X 100 3 / LH
Slot 7 PCIe x4 Storage


Expansion Slot Placement for: Dell Precision 490


Click image to enlarge

Option 1
Slot 1 PCIe x4 SAS Card
Slot 2 PCIe x16 GPU
Slot 3 PCIe x4 3/LHe
Slot 4 PCI 33Mhz
Slot 5 PCI-X 100 Storage
Slot 6 PCI-X 100 Storage

Option 2
Slot 1 PCIe x4 SAS Card
Slot 2 PCIe x16 GPU
Slot 3 PCIe x4 Storage
Slot 4 PCI 33Mhz
Slot 5 PCI-X 100 Empty
Slot 6 PCI-X 100 3 / LH


Expansion Slot Placement for: Boxx 8500



Click image to enlarge

At this time AJA supports the KONA 3, LHi & LSe for 2K / HD / SD editing on the Boxx 8500 Workstation. Slot placement for the LSe is not as crucial for SD editing.

Option 1
Slot 1 PCI 33Mhz Empty
Slot 2 PCIe 8(4) 3 / LHi
Slot 3 PCIe 4(1) Empty
Slot 4 PCIe 16 Storage / Empty
Slot 5 PCIe 16 GPU

Option 2
Slot 1 PCI 33Mhz Empty
Slot 2 PCIe 8(4) Storage / Empty
Slot 3 PCIe 4(1) Empty
Slot 4 PCIe 16 LHi
Slot 5 PCIe 16 GPU


Expansion Slot Placement for: Boxx 8400 / SuperMicro X7DWA-N



Click image to enlarge

Option 1
Slot 0 PCII-U N/A
Slot 1 PCI-X 100 Storage / Empty
Slot 2 PCI-X 100 Storage / Empty
Slot 3 PCI 33Mhz Empty
Slot 4 PCIe x16 3 / LHe
Slot 5 PCI 33Mhz Empty
Slot 6 PCIe x16 GPU
Slot 7 IPMI N/A

Option 2
Slot 0 PCII-U N/A
Slot 1 PCI-X 100 3 / LH
Slot 2 PCI-X 100 Empty
Slot 3 PCI 33Mhz Empty
Slot 4 PCIe x16 Storage / Empty
Slot 5 PCI 33Mhz Empty
Slot 6 PCIe 16x GPU
Slot 7 IPMI N/A


Expansion Slot Placement for: SuperMicro X7DA8 / X7DA3 / X7DAE



Click image to enlarge

Option 1
Slot 1 PCI-X 100 GPU
Slot 2 PCI-X 133
Slot 3 PCI-X 133 3 / LHe
Slot 4 PCIe x16 (x4) Storage
Slot 5 PCI 33 Mhz Storage
Slot 6 PCI-e x16 Storage
Slot 7 IPMI


Expansion Slot Placement for: Tyan i5396



Click image to enlarge

Option 1
Slot 1 PCI 33Mhz
Slot 2 PCI-X 133 3 / LH
Slot 3 PCI-X 133 Empty
Slot 4 PCI Express x16 (x16, x8) Storage / Empty / SLI
Slot 5 PCI Express x8 (x4) Storage / Empty
Slot 6 PCI Express x16 GEN 2 GPU

Option 2
Slot 1 PCI 33Mhz
Slot 2 PCI-X 133 Storage / Empty
Slot 3 PCI-X 133 Storage / Empty
Slot 4 PCI Express x16 (x16, x8) 3 / LHe
Slot 5 PCI Express x8 (x4) Storage / Empty
Slot 6 PCI Express x16 GEN 2 GPU
